Quick Details
-
Power:
-
77.3KW
-
Turning radius:
-
2800mm
-
CLIMB:
-
40°
-
Power System:
-
24V
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XCMG
-
Weight:
-
7000 kg
-
Power:
-
77.3KW
-
Turning radius:
-
2800mm
-
CLIMB:
-
40°
-
Power System:
-
24V
Products Description

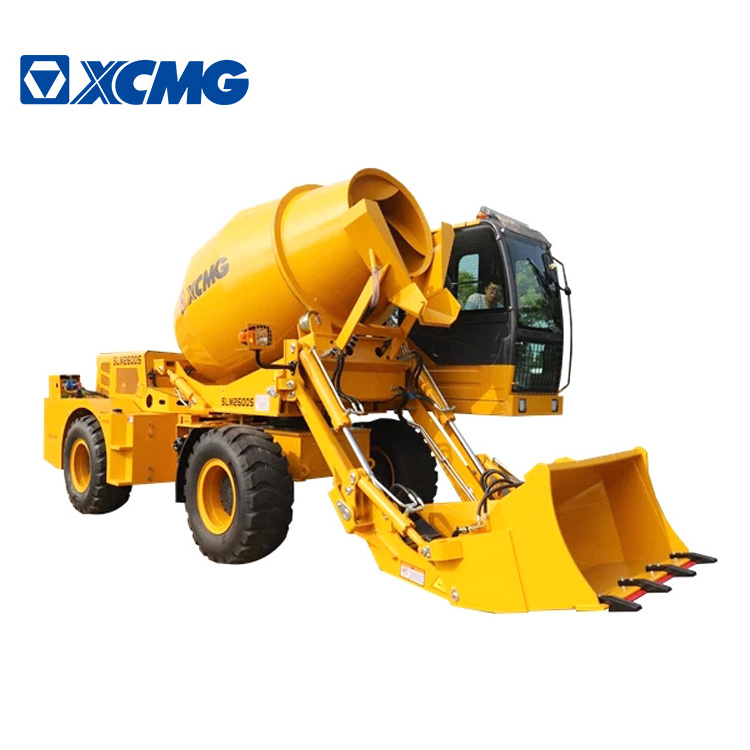

XCMG Official New Mobile Self Feeding Concrete Mixer Truck 2.6 Cubic Multifunction Self Loading Concrete Mixer
The vehicle is four-wheel drive, so that the mixer can also produce concrete in bad working conditions, to ensure the work efficiency.
The aggregate is weighed in the loading process to ensure that the required concrete can be produced and the production efficiency can be improved with the weighing accuracy within 3%.
Output per lot: 2.6 cubic metres.
Drum rotation:
discharge port height 1.65 M, horizontal rotation 270 degrees, tank can be raised and lowered.
ENGINE:
Yuchai, diesel, water cooled, 4 cylinder, 2200 rpm, rated power 77.3KW.
Drive mode:
The engine is directly connected to the 280 torque converter, through the drive shaft to the transmission with dual high and low speed through the drive shaft connected to the front and rear axles to achieve 4-wheel drive.
SPEED:
dual altitude, low speed 0-25 kph, high speed 0-40 kph.
Driver's seat:
Widen luxurious cab, anti-rollover, anti-falling object type.
Hydraulic System:
Open type oil, two gear pumps to participate in the work.
JOYSTICK:
Two hydraulic pilot joysticks control the scoop, upper arm, 270 turn, lift tank.
Product Paramenters
|
Model
|
SLM2600S
|
|
CAPACITY
|
4 batches/h or 10.4 cubic/hour
|
|
Weight
|
7000KG
|
|
Bucket(hydraulic gate)
|
2.6 cubic
|
|
TIRE(steel wire high pressure vacuum tire)
|
12R-22.5
|
|
Power System
|
24V
|
|
CLIMB
|
40°
|
|
Turning radius
|
2800mm
|
