Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yunda
-
Voltage:
-
380V
-
Weight:
-
10400 kg
-
Core Components:
-
Pulper rotor, Pulper plate, drive
-
PLC Brand:
-
other
-
Product name:
-

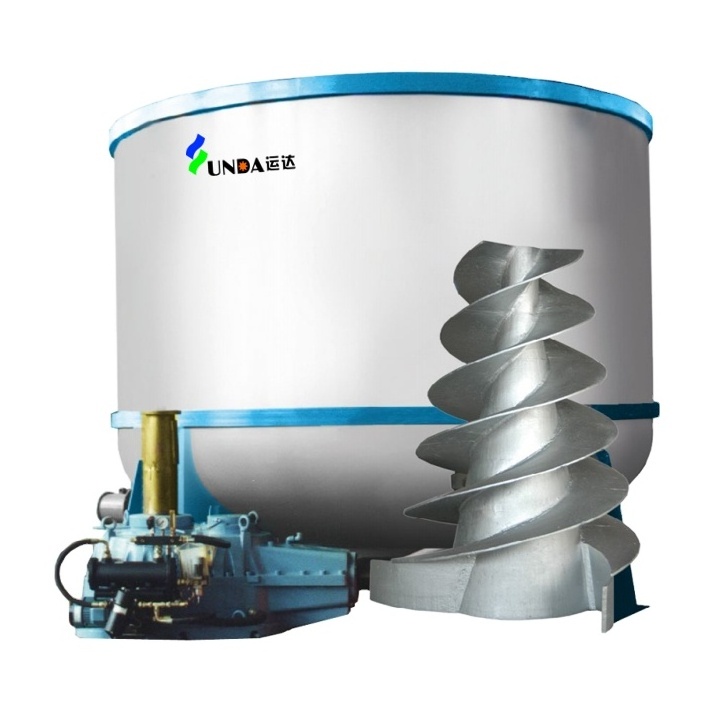

High consistency pulper
-
Material:
-
304 stainless steel
-
Nominal volume: (m³):
-
15
-
consistency(%):
-
12-18
-
Capacity: (T/D):
-
60-70
-
After-sales Service Provided::
-
Field installation, commissioning and training
Quick Details
-
Type:
-
Pulping Equipment
-
Production Capacity:
-
60~70 t/d
-
Max. workable width:
-
Other
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yunda
-
Voltage:
-
380V
-
Weight:
-
10400 kg
-
Core Components:
-
Pulper rotor, Pulper plate, drive
-
PLC Brand:
-
other
-
Product name:
-
High consistency pulper
-
Material:
-
304 stainless steel
-
Nominal volume: (m³):
-
15
-
consistency(%):
-
12-18
-
Capacity: (T/D):
-
60-70
-
After-sales Service Provided::
-
Field installation, commissioning and training
Product Description
Product introduction:
ZDSH series high-consistency hydraulic pulper is designed by researching foreign materials. It is mainly used in the deinking process of waste paper to quickly waste paper under the conditions of high concentration and water temperature of 60-90 °C. At the same time, through the action of chemicals, The ink particles and fibers are separated, and the ink particles and impurities keep the original size as much as possible, so that the subsequent ink removal, screening, purification and other processes can be carried out smoothly, and the waste paper can be used to produce high-brightness pulp and save steam. , drugs and power consumption. High-consistency hydraulic pulper has become one of the indispensable core equipment in the deinking and pulping process of waste paper.
Features of High Consistency Hydraulic Pulper
1：It is suitable for disintegration and ink stripping of various waste paper deinking pulp.
2：The special screw rotor has a strong ability to disperse the slurry without destroying the impurities.
3：The treated slurry has a high concentration (12-18%), and the slurry is fully decomposed.
4：Compact structure, convenient operation and maintenance.
High consistency pulper
main specification
|
Model
|
ZDSH3
|
ZDSH4
|
ZDSH6
|
ZDSH9
|
|||
|
Nominal Volume (m3)
|
5
|
10
|
15
|
30
|
|||
|
Consistency (%)
|
12-18
|
|
|
|
|||
|
Capacity (T/D)
|
20-30
|
30-50
|
60-70
|
140-180
|
|||
|
Motor Power (kw)
|
110
|
185
|
315
|
560
|
|||
