Quick Details
-
Brand Name:
-
ZHIYUANTONG
-
Model Number:
-
LF280
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
5kg~25kg or custom
-
The discharge rate:
-
< 3% / Month
-
Electric Energy:
-
3840 Wh
-
Battery type:
-
Lifepo4/lithium Battery
-
Product name:
-
LifePO4 Lithium Battery Pack
-
Capacity:
-
50ah/100ah/200ah/300ah
-
Voltage:
-
12V/24v/36v/48v/72V/96V/256V custom
-
Type:
-
Li-Ion/lithium/lifepo4
-
Certification:
-
CE/RoHS/UN38.3/MSDS
-
Features:
-
with USB and LED indicator
-
Cell type:
-
Grade-A Lithium-ion
-
Keywords:
-
12V/24V/36V/48V/Optional
-
Cycle life:
-
6000 Times-10000 Cycle
Quick Details
-
Storage Type:
-
normal temperature
-
Anode Material:
-
LFP
-
Application:
-
Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts, RV Systems
-
Brand Name:
-
ZHIYUANTONG
-
Model Number:
-
LF280
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
5kg~25kg or custom
-
The discharge rate:
-
< 3% / Month
-
Electric Energy:
-
3840 Wh
-
Battery type:
-
Lifepo4/lithium Battery
-
Product name:
-
LifePO4 Lithium Battery Pack
-
Capacity:
-
50ah/100ah/200ah/300ah
-
Voltage:
-
12V/24v/36v/48v/72V/96V/256V custom
-
Type:
-
Li-Ion/lithium/lifepo4
-
Certification:
-
CE/RoHS/UN38.3/MSDS
-
Features:
-
with USB and LED indicator
-
Cell type:
-
Grade-A Lithium-ion
-
Keywords:
-
12V/24V/36V/48V/Optional
-
Cycle life:
-
6000 Times-10000 Cycle
Best Selling

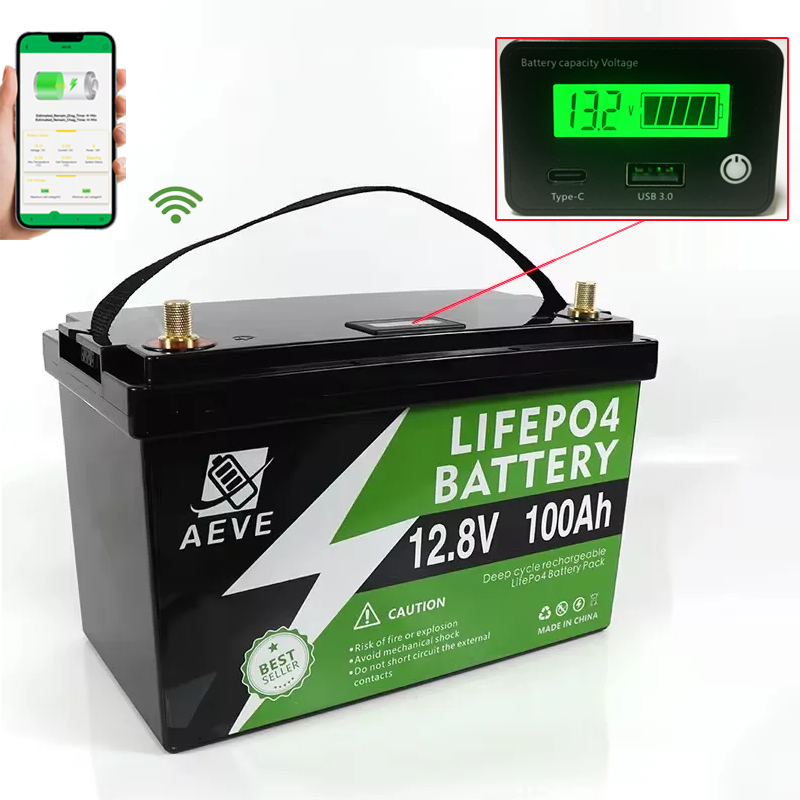

12V 24V 48V Multipurpose Energy Storage Battery ，
50Ah 100Ah 200Ah 300Ah 400Ah Lithium Iron LifePo4 Battery With BMS，Factory direct sales,
（Attention:supporting custom BT，Default without BT APP function）
Product Data
|
Nominal Voltage
|
12.8V
|
12.8V
|
12.8V
|
||
|
Nominal Capacity
|
200Ah
|
300Ah
|
100Ah
|
||
|
Energy
|
2400Wh
|
3840Wh
|
1280Wh
|
||
|
Size（L*W*H））/Weight
|
345*190*245 mm
about 19.5kg
|
345*190*245 mm
about 25kg |
339*185*218 mm
about 11kg
|
||
|
Self Discharge
|
< 3% / Month
|
< 3% / Month
|
< 3% / Month
|
||
|
Maximum Charge Current
|
100A
|
150A
|
100A
|
||
|
Recommend Charge Voltage
|
14.6V
|
14.6V
|
14.6V
|
||
|
BMS Charge Cut-off Voltage
|
Cut-off Voltage：14.6V
Cut off Recover：14±0.05V
|
Cut-off Voltage：14.6V
Cut off Recover：14±0.05V
|
Cut-off Voltage：14.6V
Cut off Recover：14±0.05V
|
||
|
Balancing Voltage
|
< 13.2V(3.3V/Cell)
|
< 13.2V(3.3V/Cell)
|
< 13.2V(3.3V/Cell)
|
||
|
Max Continuous Discharge Current
|
100A
|
150A
|
100A
|
||
|
Short Circuit Protection Current
|
1400±280A
|
1800±360A
|
1400±280A
|
||
|
BMS Short Circuit Protection
|
250μs
|
250μs
|
250μs
|
||
|
BMS Low-Voltage
|
Low Voltage Protection：10.8±0.05V
Low Voltage Recover：11.6±0.05V
|
|
|
||
|
Operating Temperature：
|
Discharge: -20 ~ 60 °C
Charge :0 ~ 55 °C
Storage :10 ~ 35 °C
|
|
|
||
|
BMS High Temperature:
|
Cut：55±2 °C
Recovery：50±2 °C
|
|
|
||
|
Terminal Thread Type
|
M8
|
|
|
||
|
Application：
|
Home Energy Storage, RV Caravans, Small Boat Motors, Golf Carts
|
|
|
||
|
Certifications
|
CE,MSDS,UN38.3
|
|
|
||
Products Description
YANTONG Technology Co., Ltd.
Is a 10-year integrated new energy enterprise focusing on the research and
development, productionand sales of lithium batteries. Mainly engaged in lithium iron phosphate batteries, energy storage battery packs, mobile power,home solar energy storage and outdoor power supply related new energy battery products. They are used in home solar energystorage, communication base station backup power, UPS system, caravan, golf cart, forklift, yacht and other power supply fields.All products have obtained international certification certificates such as Ul, CE, UN38.3, MSDS, IEC, ISO9001 quality managementsystem certification, 12 patents, and prepare established a large number of logistics and storage bases to efficiently servecustomers in North America, Germany, Poland, etc. We have reached long-term strategic cooperation with thousands of overseascustomers in the new energy industry. We will adhere to the market and customer needs as our guide and continue to providecompetitive products to many foreign entrepreneurs, merchants and retailers to reduce the intermediate costs of the new energyindustry.
Our Factory
Our Certificate
Photo with partners
Product loading
Logistics and payment methods
FAQ
Q1: Are the batteries GRADE- A, brand NEW?
A1:Yes, GRADE A+quality.the QRcode is intactBrand new
Q2:.Are the batteries come with busbars+bolts?
A2:The price comes with FREE Bus bars and Bolts，one battery will come with one set bus bar and bolt（e.g.,If buy 4pcs battery,we will send 4pcs cells with 4 pcs busbars and 8pcs bolts）If need more please contact us online.Thank you!
Q3:Can you test each battery PRIOR to shipping?
A3:We will test all the battery Voltage and Internal resistance Voltage:The deviation less than 0.01V Resistance:The deviation less than 0.1m Ω.
Q4:What kind of the package of the cells?
A4:Pack with strong package each cell into thickness PE foam or bag then into 5 layers strong carton.
Q5:How can I do if I need more help for the order?
A5:You can chat our sales online or send inquiry emailwe will respond you ASAP.
Q6:How can I place the order?
A6:Usually we accept alibaba trade assurance order online.For the RTS(ready for ship) product if there is clear shipping cost or free shipping to your country you can place order and pay directly after reading for all the detailsor you can provide your shipping informtion to our sales they will creat online order for you
