1. High efficiency, large output, and long-distance of the pump.
2. Very simple and fast assembly and dis-assembly, afloat or onshore, simple operation, easy to control.
3. Good economic performance. The digging and delivery of material can be completed one time.
4. Highly efficient fuel consumption and minimum overall operational costs
5. Good access to all parts, especially the dredge pump wearing parts.
6. The dredgers can be made according to the customers’ requests.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OCEAN
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
10000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Sand capacity:
-
25-100m3/hour
-
Max. discharge distance:
-
Up to 200m
-
Sand pump size:
-
4-10 inch
-
Suction depth:
-
5-20m
-
Application:
-
Sand Dredging
-
Color:
-
Customized
-
Max. flow particle dia. allowed:
-
Up to 70mm
-
Sand pump material:
-
Iron cast, Alloy
-
Structure:
-
Demountable
Quick Details
-
Marketing Type:
-
Hot Product 2021
-
Dredging Depth:
-
15 m
-
Draught:
-
50 inch
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OCEAN
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
10000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Sand capacity:
-
25-100m3/hour
-
Max. discharge distance:
-
Up to 200m
-
Sand pump size:
-
4-10 inch
-
Suction depth:
-
5-20m
-
Application:
-
Sand Dredging
-
Color:
-
Customized
-
Max. flow particle dia. allowed:
-
Up to 70mm
-
Sand pump material:
-
Iron cast, Alloy
-
Structure:
-
Demountable
Product Overview

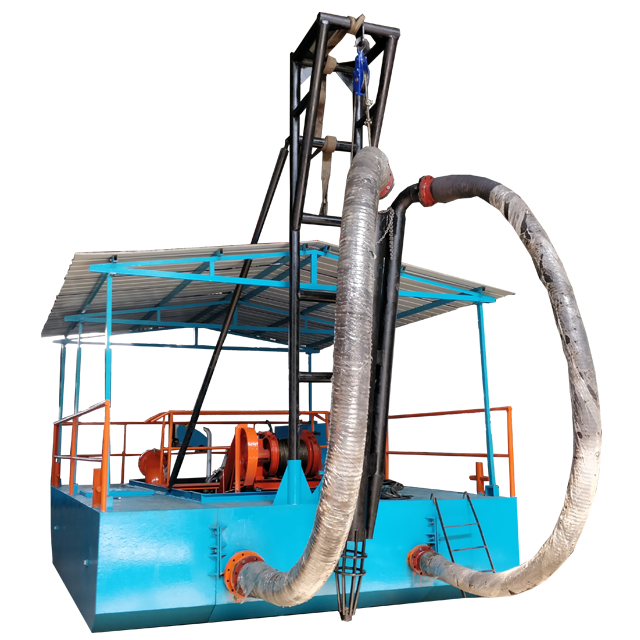

Floating Dredging Sand Removal Small River Sand Dredging Barge
The
Small River Sand Dredging Barge
, extensively utilized in applications such as sand dredging, mud dredging, port construction, and deepening projects, features a centrifugal sand pump that generates robust vacuum pressure. This capability enables the efficient transportation and discharge of sand and mud through a network of pipelines and floaters.
Engineered by OCEAN Pump, the
Small River Sand Dredging Barge
is offered in both self-propelled and non-self-propelled models. The
Small River Sand Dredging Barge
is designed with a convenient box-like structure that can be easily disassembled, allowing for effortless on-site assembly and facilitating transportation via road, railway, or container. This design provides flexibility and ease of movement within the work area. To accommodate diverse customer requirements, the power system of the
Small River Sand Dredging Barge
can be customized as electric or diesel engine-driven.
Utilizing its high-pressure sand pump, the
Small River Sand Dredging Barge
creates a vacuum, effectively blending underwater sand and mud into a slurry. This slurry is then efficiently conveyed through the pipeline system to its designated discharge location, ensuring smooth and effective dredging processes.
FEATURES AT A GLANCE
Front Picture
Side Picture
Back Picture
PRODUCT SPECIFICATIONS
|
No
|
Size
|
a (Water depth)
|
b (dig depth)
|
c (Head)
|
d (discharge distance)
|
e (distance on water)
|
f (Sand capacity)
|
|
|
|
(meters)
|
(meters)
|
(meters)
|
(meters)
|
(meters)
|
(tons)
|
|
1
|
4 inch
|
2-3
|
5-6
|
10
|
60-80
|
0-60
|
30-40
|
|
2
|
6 inch
|
2-3
|
6-8
|
12
|
80-100
|
0-80
|
60-80
|
|
3
|
8 inch
|
2-3
|
8-15
|
15
|
100-150
|
0-100
|
80-100
|
|
4
|
10 inch
|
2-3
|
15-20
|
20
|
150-180
|
0-150
|
100-130
|
PRODUCT CONFIGURATION
Successful Project
Project in Uganda
Project in
Philippines
Project in Nigeria
Project in Indonesia
Project in South Africa
Project in Ghana
Project in Cameroon
SIMILAR PRODUCTS
Customer Reviews
Packing & Delivery
Our Company
OCEAN Pump had been specialized in designing, manufacturing, and supplying sand pumps, slurry pumps, gravel pumps, and dredger equipment for more than 20 years. With an innovative hydraulic and structural design, our main sand pumping over-flow parts are made of the wear-resistant high chrome alloy, the sand pump will have a long working life, reliable operation, and small vibration, low noise, and easy maintenance.
We had provided effective sand pumping equipment and dredging equipment to over 60 countries. Our products are widely used for river sand pumping, mining pumping, pond dredging, reservoir dredging, tailing transportation and land reclamation, etc. Our customers are from Southeast Asia like Malaysia and Singapore, Central Asia like Kazakhstan, South America like Brazil, Africa like Nigeria, Cameroon, and Côte d’Ivoire.
