Quick Details
-
Pressure:
-
Depending on model, 8-30 Mpa
-
Structure:
-
Depending on model
-
Weight:
-
8
-
Power:
-
Depending on model
-
Dimension(L*W*H):
-
Depending on model
-
Brand Name:
-
Eternal (same as danfoss)
-
Place of Origin:
-
Zhejiang, China
-
Maximum Flow Rate:
-
Depending on model
-
Type:
-
Hydraulic Motors
-
Flow:
-
38-225 LPM
-
Speed:
-
110-1000 RPM
-
Color:
-
Blue/Gray
-
Material:
-
Cast Iron
-
Certificate:
-
ISO9001
-
After Warranty Service:
-
Online support
Quick Details
-
Warranty:
-
2 years
-
Motor Type:
-
Other
-
Displacement:
-
other, 160-985ml/rev
-
Pressure:
-
Depending on model, 8-30 Mpa
-
Structure:
-
Depending on model
-
Weight:
-
8
-
Power:
-
Depending on model
-
Dimension(L*W*H):
-
Depending on model
-
Brand Name:
-
Eternal (same as danfoss)
-
Place of Origin:
-
Zhejiang, China
-
Maximum Flow Rate:
-
Depending on model
-
Type:
-
Hydraulic Motors
-
Flow:
-
38-225 LPM
-
Speed:
-
110-1000 RPM
-
Color:
-
Blue/Gray
-
Material:
-
Cast Iron
-
Certificate:
-
ISO9001
-
After Warranty Service:
-
Online support
OMV MODEL CODE
|
OMV |
-800 |
4 |
P1 |
D |
|
Code |
Displace |
Mounting Flange&Spigot |
Shaft |
Inlet&Outlet and Drain Port |
|
O MV |
315,400, 500,630, 800,1000 |
4: 4- Φ 18Square Flange (cp200), Spjgot Φ 1 60x11 W: 4- Φ 18Wheel Flange (cp224), Spjgot Φ 1 80x10 |
P1 : Φ 50(82),key14x9x70 P2: Φ 57.15(82), key12.7x12.7x57.15 H1 : cp53.975(82), 16-DP8/16 H2: Φ 53.975(82),16-DP8/16 H3 : Φ 45,17Zx2.5x30Px5e Z1: Φ 60Taper,key B16x10x32 Z2 : 57.2Taper, key14.308x14.308x50.8 |
D: G1,G3/4,4-M12 M: M33x2,M14x1.5,4-M12 S: 1-5/16-12UN,9/16-18UNF G: G1,G1/4 M5: M33x2,M14x1.5 D1: G3/4,G1/4,4-M12 |
|
OMVE |
K6: 4- Φ 14 . 2Square Flange ( Φ 162 ), Spigot Φ 1 27x11 K4: 4- Φ 14 . 2Square Flange ( Φ 160 ), Spigot Φ 1 25x11 |
P3 : Φ 40(79),key 12x8x70 P4; Φ 40(56),key12x8x45 |

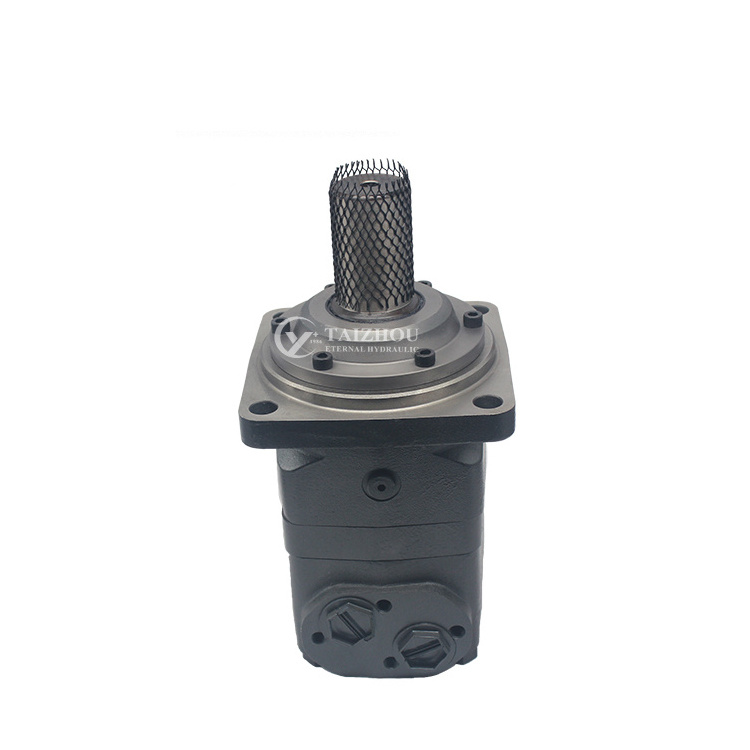

ETERNAL OM Series Orbit Motor:
Hydraulic orbit motor is one type of high torque low speed hydraulic motors, with high efficiency and long life. Eternal OM series orbit motor is 100% interchangable with the international brand, like Denmark Danfoss, Eaton Vickers, Parker...
Features:
The OM series orbit hydraulic motor is a small volume, economic type axial flow hydraulic motor.
* Credible design for shaft seal , which can bear high pressure, and can be used in series-parallel connection.
* Using the whole type of stator, compact structure, light weight, high power density .
*Direction of shaft rotation and speed can be controlled easily and smoothly.
Widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery.
1. Agricultural: all combine harvesters, seeders, rotary tiller, mower, sprayer, feed mixers, ground drilling machine.
2. Fishing: hauling machine.
3. Light industry: plastic injection mold machine, grass cutter, conveyors, winding machines, textile machines, printing presses, operating with a washing machine.
4. Construction industry: rollers, cement mixers, cleaning cars, winches.
