Quick Details
-
Application:
-
Outdoor or Indoor
-
Type:
-
Adjust the size of the signal in the circuit
-
Series:
-
DC-3GHz or Customized
-
Features:
-
efficient
-
Mounting Type:
-
Indoor installation, outdoor installation
-
Description:
-
Indoor distribution attenuator
-
Pim5:
-
-120dbc
-
Connectors:
-
N-J N-K
-
Impedance:
-
50 Ω
-
HS Code:
-
8517199000
-
Pim3:
-
-105dbc
-
VSWR:
-
<1.25
-
Relative Humidity:
-
5 to 95%
-
Connector Type:
-
N-Male to N-Female
-
Dimension:
-
147mm*120mm*60mm
-
Net Weight:
-
1.0Kg
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
HTMICROWAVE
-
Model Number:
-
HT. ATT-37XX-2004101
-
Application:
-
Outdoor or Indoor
-
Type:
-
Adjust the size of the signal in the circuit
-
Series:
-
DC-3GHz or Customized
-
Features:
-
efficient
-
Mounting Type:
-
Indoor installation, outdoor installation
-
Description:
-
Indoor distribution attenuator
-
Pim5:
-
-120dbc
-
Connectors:
-
N-J N-K
-
Impedance:
-
50 Ω
-
HS Code:
-
8517199000
-
Pim3:
-
-105dbc
-
VSWR:
-
<1.25
-
Relative Humidity:
-
5 to 95%
-
Connector Type:
-
N-Male to N-Female
-
Dimension:
-
147mm*120mm*60mm
-
Net Weight:
-
1.0Kg
Product Description

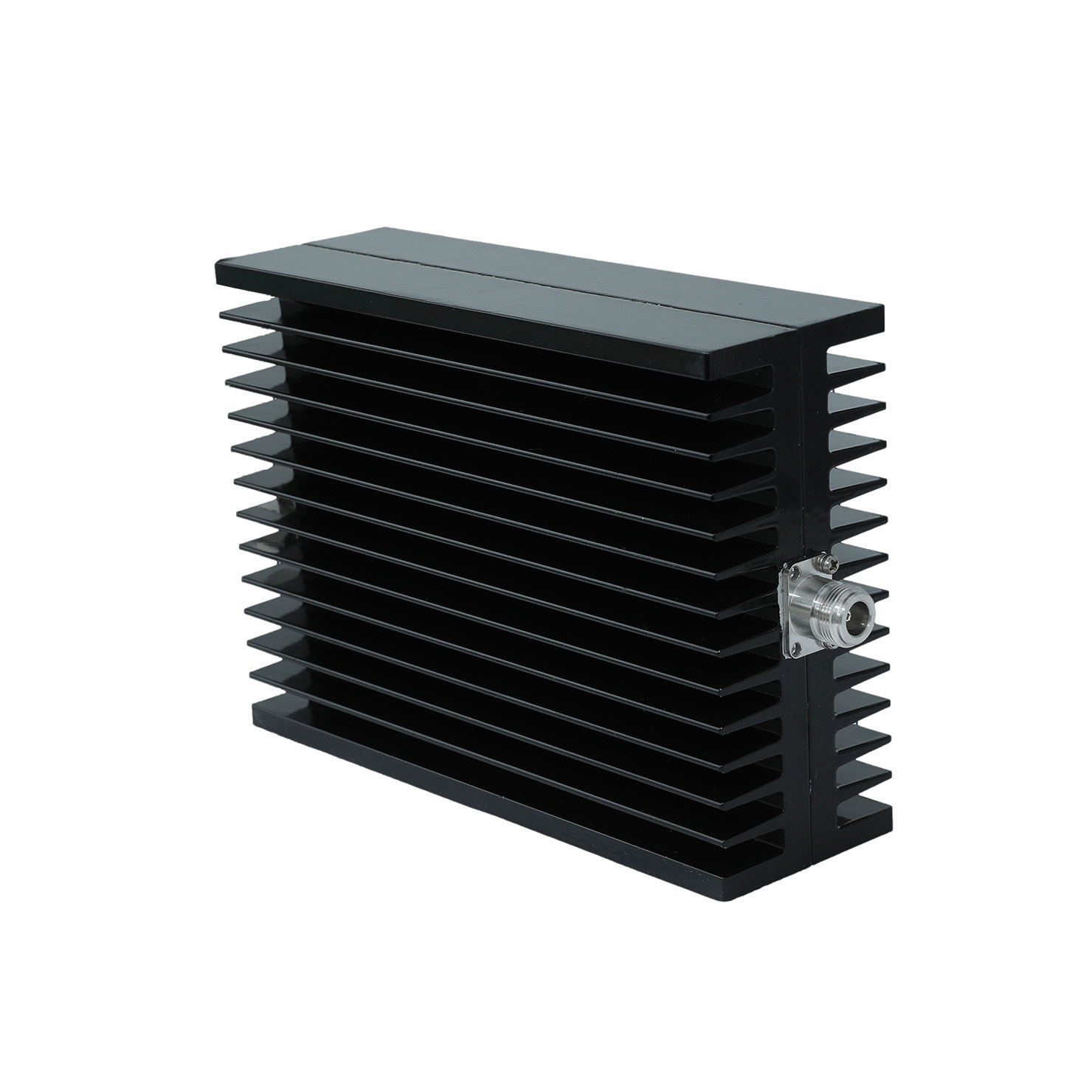

Coaxial Attenuator
Coaxial Attenuator is used in a variety of applications and can satisfy almost any requirement where a reduction in power is
needed, and can be equipped with a small power meter, comprehensive tester or spectrum analyzer to accurately measure various
radio frequency microwave emissions power or spectrum.
Coaxial Attenuator is used in a variety of applications and can satisfy almost any requirement where a reduction in power is
needed, and can be equipped with a small power meter, comprehensive tester or spectrum analyzer to accurately measure various
radio frequency microwave emissions power or spectrum.
1. Wide Frequency Band, can cover 4G/5G system .2. Low VSWR
3. N, 7/16 DIN,4.3-10 connectors are available.
4. IP65 / IP67 Waterproof Standard.
Technical Specification
|
Attenuator, N Connectors, 200 Watt
|
|
|
|
|
|
|
|
|||||||
|
Electrical Specifications
|
|
|
|
|
|
|
|
|||||||
|
Attenuation Value
|
3dB
|
6dB
|
10dB
|
15dB
|
20dB
|
30dB
|
40dB
|
|||||||
|
Accuracy
|
±0.4dB
|
±0.6dB
|
±0.8dB
|
±1.2dB
|
±1.4dB
|
±1.8dB
|
±2.2dB
|
|||||||
|
Passband Ripple(db)
|
≤0.4
|
≤0.8
|
≤1.0
|
≤1.2
|
≤1.4
|
≤2.0
|
≤2.2
|
|||||||
|
Frequency Range
|
|
|
DC - 3700MHz
|
|
|
|
|
|||||||
|
VSWR
|
|
|
<1.25
|
|
|
|
|
|||||||
|
Average Power
|
|
|
200W
|
|
|
|
|
|||||||
|
PIM (IM3)
|
|
|
<-105dBc @ 2x43W
|
|
|
|
|
|||||||
|
PIM (IM5)
|
|
|
<-120dBc @ 2x43W
|
|
|
|
|
|||||||
|
Impedance
|
|
|
50 Ω
|
|
|
|
|
|||||||
|
Environmental Specifications
|
|
|
|
|
|
|
|
|||||||
|
Operating Temperature
|
|
|
-25 to +50 ºC
|
|
|
|
|
|||||||
|
Applied Environment
|
|
|
Outdoor or Indoor
|
|
|
|
|
|||||||
|
Relative Humidity
|
|
|
5 to 95%
|
|
|
|
|
|||||||
|
Mechanical Specifications
|
|
|
|
|
|
|
|
|||||||
|
Connector Type
|
|
|
N-Male to N-Female
|
|
|
|
|
|||||||
|
Dimension
|
|
|
245mm*142mm*64mm
|
|
|
|
|
|||||||
|
Net Weight
|
|
|
1.0Kg
|
|
|
|
|
|||||||
