Quick Details
-
Brand Name:
-
FULANG MACHINE
-
Motor Power:
-
24.75KW
-
Charging Capacity:
-
800L
-
Reclaiming capacity:
-
500L
-
Speed of Mixing Drum:
-
36r/min
-
Water Supply Mode:
-
Pump
-
Working Cycle Period:
-
72s
-
Discharge Way:
-
Automatic
-
Outline Dimension:
-
1200*1200*1300mm
-
Full cell diameter:
-
1500mm
-
Weight:
-
3500kgs
-
Color:
-
Customized
-
Voltage(V):
-
220/380(V)adjustable
-
Output RPM:
-
36 r/m
-
Cycle time:
-
72 s
-
Pump model:
-
MB-50-40-95
-
Brand of motor:
-
BOSHAN (Chinese famous brand)
-
Rotatry speed of lifting motor:
-
36 m/r
Quick Details
-
Mixing Power:
-
18.5KW
-
Productivity:
-
25M³/H, 25-30 m*m*m/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FULANG MACHINE
-
Motor Power:
-
24.75KW
-
Charging Capacity:
-
800L
-
Reclaiming capacity:
-
500L
-
Speed of Mixing Drum:
-
36r/min
-
Water Supply Mode:
-
Pump
-
Working Cycle Period:
-
72s
-
Discharge Way:
-
Automatic
-
Outline Dimension:
-
1200*1200*1300mm
-
Full cell diameter:
-
1500mm
-
Weight:
-
3500kgs
-
Color:
-
Customized
-
Voltage(V):
-
220/380(V)adjustable
-
Output RPM:
-
36 r/m
-
Cycle time:
-
72 s
-
Pump model:
-
MB-50-40-95
-
Brand of motor:
-
BOSHAN (Chinese famous brand)
-
Rotatry speed of lifting motor:
-
36 m/r

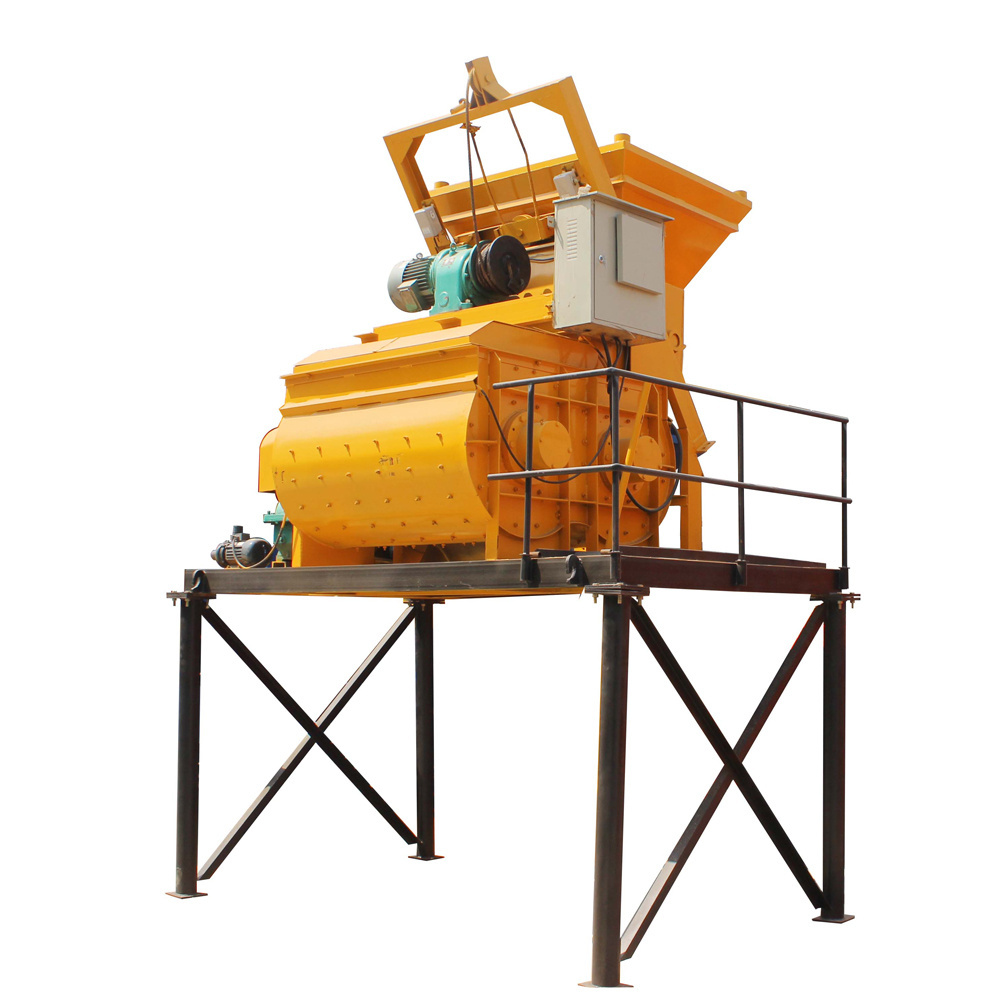

1. The high quality motor ensures the stable operation of the mixer. Even under the harsh production conditions, the mixer can be operated with high efficiency and low noise. At the same time more space-saving, compared with the traditional mixer, JQ350 mixer maintenance space can be increased by 30%.
2. Flexible couplings and fluid couplers (options) can effectively protect the operating system from overload.
3. The stirring blades of manganese steel are more resistant to wear, and polyurethane blades are available at the same time to meet the needs of different mixing materials.
4. For mixing different materials, the liner can use special materials.
|
Main specification and technical parameters
|
|
|
|
|||
|
Output capacity
|
|
500L
|
|
|||
|
Feeding capacity
|
|
800L
|
|
|||
|
Maximum productivity
|
|
25m³/h
|
|
|||
|
Aggregate size
|
|
≤80/60mm
|
|
|||
|
Mixing motor
|
Type
|
Y200L-4
|
|
|||
|
|
Power
|
24.75Kw
|
|
|||
|
Mixing blades
|
Rotate speed
|
31r/min
|
|
|||
|
|
Quantity
|
2x7
|
|
|||
|
Winding engine motor
|
Type
|
YEZ132M-4-B5
|
|
|||
|
|
Power
|
7.5Kw
|
|
|||
|
Pump motor
|
Type
|
65DWB35-5
|
|
|||
|
|
Power
|
1.1Kw
|
|
|||
|
Hopper improve speed
|
|
18m/min
|
|
|||
|
Overall dimension
|
Transportation state
|
3650x2600x2890mm
|
|
|||
|
|
Working state
|
4915x3650x6225mm
|
|
|||
|
Whole machine weight
|
|
5500kgs
|
|
|||
|
Unloading material height
|
|
1600mm
|
|
|||
