Quick Details
-
After-sales Service Provided:
-
No overseas service provided
-
Product name:
-
Factory sale 3D welding cast iron table with jigs and fixture
-
Condition:
-
new
-
Material:
-
cast iron
-
Type:
-
Moulding Press
-
Application:
-
Industry
-
Process:
-
CNC Machining
-
Surface Treatment:
-
Painting
-
Weight:
-
500-3200kg
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
yepo
-
Model Number:
-
yp155556
-
After-sales Service Provided:
-
No overseas service provided
-
Product name:
-
Factory sale 3D welding cast iron table with jigs and fixture
-
Condition:
-
new
-
Material:
-
cast iron
-
Type:
-
Moulding Press
-
Application:
-
Industry
-
Process:
-
CNC Machining
-
Surface Treatment:
-
Painting
-
Weight:
-
500-3200kg

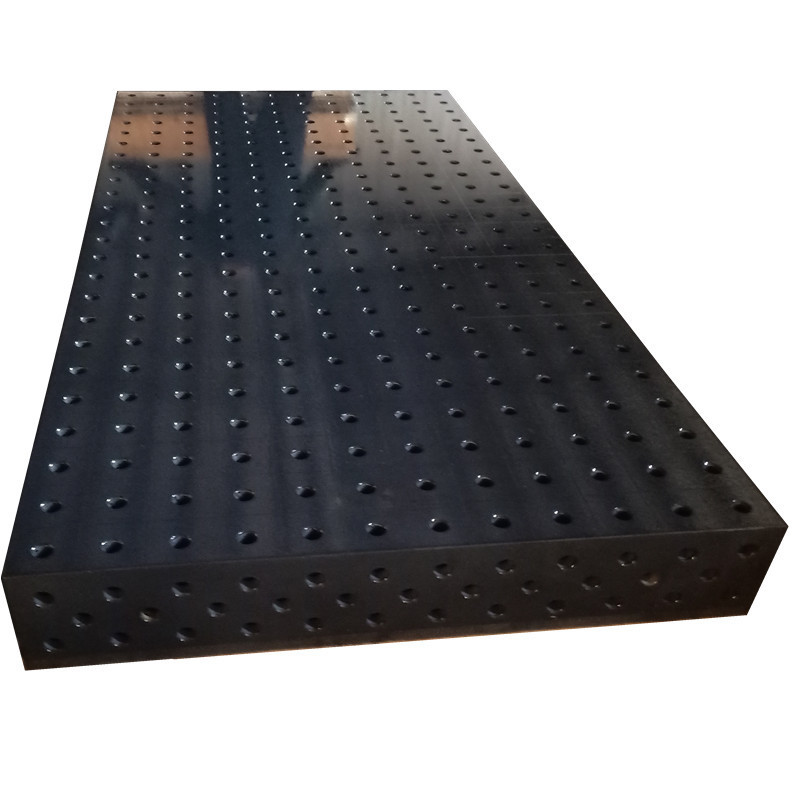

Heavy Duty Cast Iron 3d Welding plate Table With Welding Jigs Fixture for Sale
3D Steel Welding Table (D28):
|
Sizes L*W*H(mm) |
Model No. |
Weight (kg) |
|
1000x1000x200 |
ST-PT281010H |
500 |
|
1200x1200x200 |
ST-PT281212H |
600 |
|
1500x1500x200 |
ST-PT281515H |
700 |
|
2000x1000x200 |
ST-PT282010H |
650 |
|
2400x1200x200 |
ST-PT282412H |
1000 |
|
3000x1500x200 |
ST-PT283015H |
1700 |
|
4000x2000x200 |
ST-PT284020H |
2600 |
3D Casting Welding Table (D28):
|
Sizes L*W*H(mm) |
Model No. |
Weight (kg) |
|
2000X1000X200 |
ST-PT282010Z |
800 |
|
2400x1200x200 |
ST-PT282412Z |
1200 |
|
3000x1500x200 |
ST-PT283015Z |
1900 |
|
4000x2000x200 |
ST-PT284020Z |
3200 |
3D welding table —— D28 series
Be made of cast iron
5 precision machined working surfaces
Hole diameter: 28mm
Grid lines: 100mm*100mm
Hole pitch: 100mm
Material thickness: approx.23mm
Side surfaces height: 200mm
Be reinforced on the underneath side by ribs
3D welding table —— D16 series
Be made of cast iron
5 precision machined working surfaces
Hole diameter: 16mm
Grid lines: 50mm*50mm
Hole pitch: 50mm
Material thickness: approx.14mm
Side surfaces height: 100mm
Be reinforced on the underneath side by ribs.
Bad Platform:
The side of bad platform has stoma trachoma with glue filling,After the high temperature,
the filling will overflow, making the platform uneven, affecting the accuracy and use of the platform
Yuanpeng Platform:
Professional platform don't have stomatal trachoma
(Please send an inquiry to us)
Product Show After Nitriding Treatment
More 3D Welding Table Fittings
