Quick Details
-
Model Number:
-
HR17
-
Product Name:
-
fuse switch disconnector
-
Material:
-
Copper
-
Certification:
-
CE Approve
-
Color:
-
White
-
Product type:
-
Fuse switch
-
Usage:
-
Low Voltage
-
Rating Current:
-
63~630A
-
Rating Voltage:
-
500/660V
-
Package:
-
Carton Box
Quick Details
-
Breaking Capacity:
-
Low
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Model Number:
-
HR17
-
Product Name:
-
fuse switch disconnector
-
Material:
-
Copper
-
Certification:
-
CE Approve
-
Color:
-
White
-
Product type:
-
Fuse switch
-
Usage:
-
Low Voltage
-
Rating Current:
-
63~630A
-
Rating Voltage:
-
500/660V
-
Package:
-
Carton Box

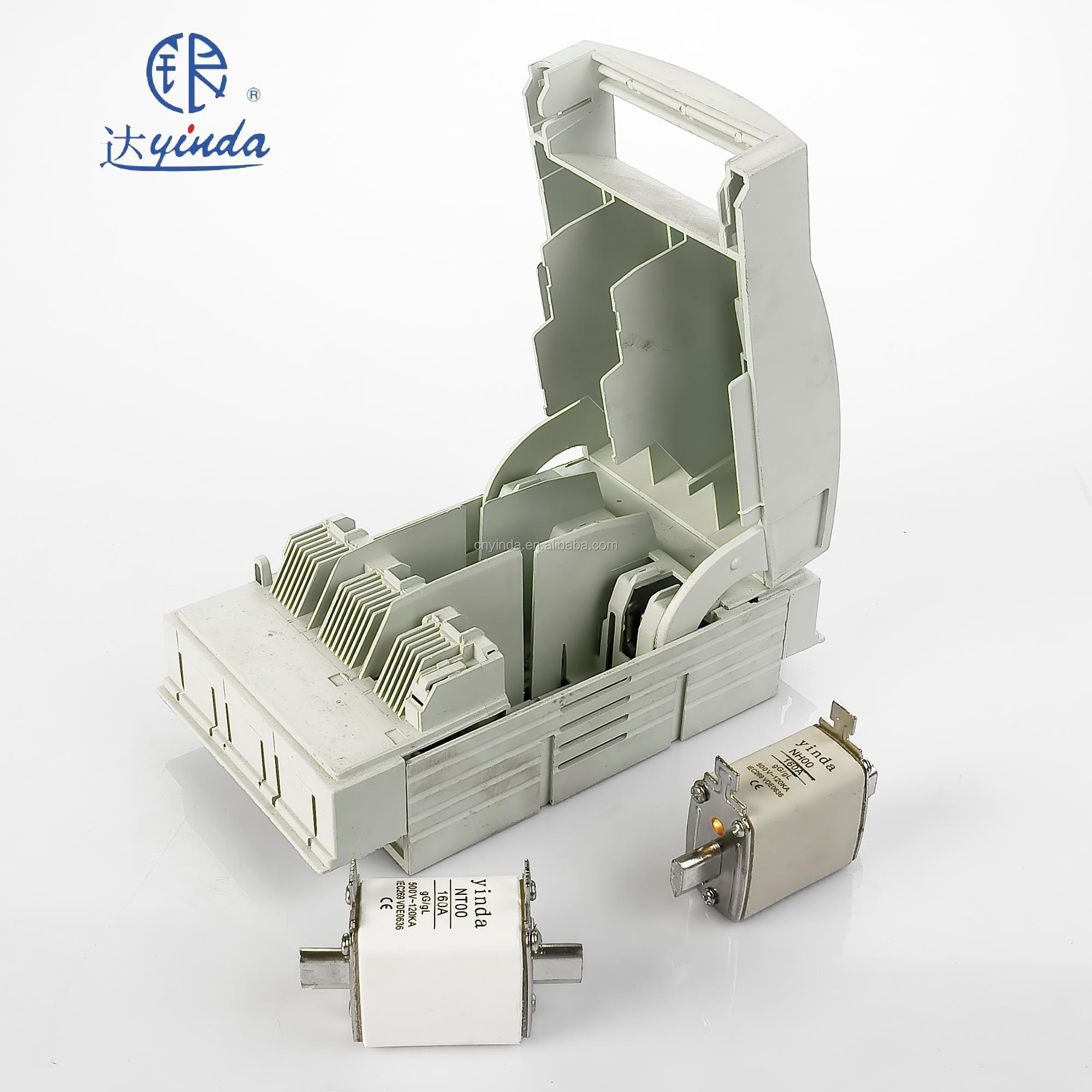

50Hz matched with nh fuse link NH2 fuse switch disconnector (CE)
Application:
This series isolating switch(hereafter refers to as switch) is suitable for the electric installation of AC 50Hz,rated working voltage to 690V,rated operating current to 630A.
It is mainly used in the electric circuit with high short-circuit current and the circuit of electric motor for the power switch,the isolator and the emergency switch. The rated short time with stand current(effective value) of this switch is 3.2kA-1S.
This switch conforms to national standard GB14048 and the international electrical committee IEC60947 standard.
|
Model No. |
fuse switch disconnector-40 |
fuse switch disconnector-100 |
fuse switch disconnector-160 |
fuse switch disconnector-250 |
fuse switch disconnector-400 |
fuse switch disconnector-630 |
|
Rated insulated voltage Ui |
690V |
690V |
690V |
690V |
690V |
690V |
|
Rated working voltage Ue |
380V |
380V |
380V |
380V |
380V |
380V |
|
Rated working current Ie |
32A |
63A |
160A |
250A |
400A |
630A |
|
Rated short circuit connecting capacity Icm |
400A |
1000A |
1600A |
2500A |
4000A |
6300A |
|
Rated limit short circuit current Inc |
50KA |
50KA |
50KA |
50KA |
50KA |
50KA |
|
Used type |
AC-23B |
AC-23B |
AC-23B |
AC-23B |
AC-23B |
AC-23B |
|
Matched fuse link |
R016-32A |
R017-63A |
NT00-160A |
NT1-250 |
NT2-400 |
NT3-630 |
1.What’s your main product?
Our main products are low-voltage fuse, high-voltage fuse, fast speed fuse, fuse links, fuse bases and fuse disconnect switches.
2.Any certification of your company or product?
We have 3C, CE, CB, RoHS, TUV Certificates and Test Report for these certificates.
3.Do you accept OEM or ODM?
Of course.
4.How’ your production capacity? How long is the lead time?
Monthly output 600,000 pieces. It usually takes us 10-15 days to finish the goods.
5. What's the MOQ?
Normally 100 pcs.
6. Can I get a sample?
For sure, we are willing to supply samples for quality checking.
7.Can sample fee be returned back to me ?
Sample amount can be deducted from your bulk order payment when order quantity is over 1000 pieces at the first time.
8.What’s your main payment term?
T/T and L/C.
