Quick Details
-
Thickness:
-
1-30mm
-
Size:
-
customized, Customized
-
Color:
-
all kinds
-
Density:
-
25-330kg/M3
-
Product name:
-

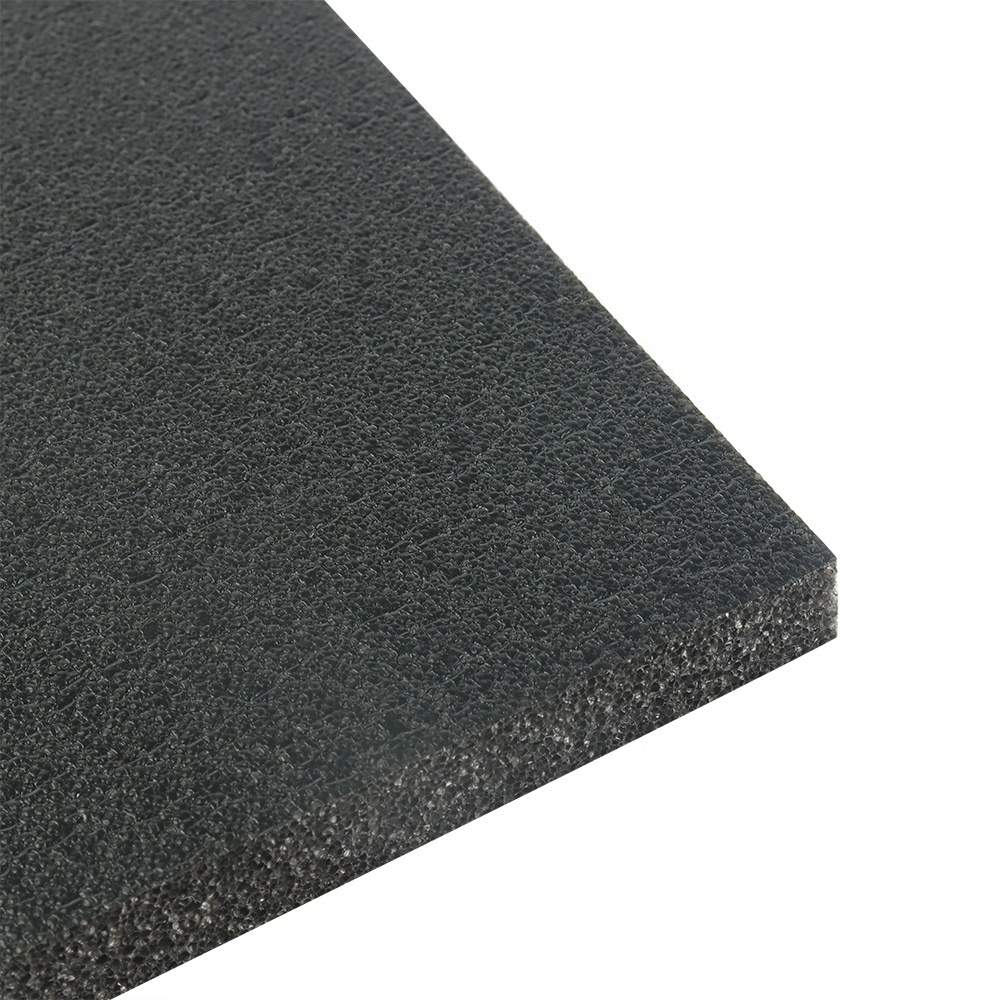

automotive pe foam
-
Application:
-
car sound proofing material
-
Type:
-
polyethylene foam
-
Adhesive:
-
available
-
Feature:
-
soundproof
-
Keyword:
-
1mm ixpe polyethylene foam
-
Raw material:
-
ldpe
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CYG
-
Model Number:
-
IXPE
-
Thickness:
-
1-30mm
-
Size:
-
customized, Customized
-
Color:
-
all kinds
-
Density:
-
25-330kg/M3
-
Product name:
-
automotive pe foam
-
Application:
-
car sound proofing material
-
Type:
-
polyethylene foam
-
Adhesive:
-
available
-
Feature:
-
soundproof
-
Keyword:
-
1mm ixpe polyethylene foam
-
Raw material:
-
ldpe
|
Foam Type: XPE FOAM / XLPE FOAM
|
|
|
|
|
||||
|
Property
|
|
Standard
|
Unit
|
Value
|
||||
|
Density
|
-
|
-
|
Kg/m³
|
33.33
|
||||
|
Tensile Strength
|
Transverse
|
ISO-1798
|
MPa
|
0.22~0.23
|
||||
|
|
Longitudinal
|
|
|
0.29~0.31
|
||||
|
Elongation
|
Transverse
|
ISO-1798
|
%
|
90.30~100.00
|
||||
|
|
Longitudinal
|
|
|
87.20~90.40
|
||||
|
Tearing Strength
|
Transverse
|
ISO-8067
|
Kn/m
|
1.31~1.46
|
||||
|
|
Longitudinal
|
|
|
1.71~1.80
|
||||
|
Compression 25%
|
|
ISO-3386-1
|
kPa
|
31.20
|
||||
|
Compression 40%
|
|
ISO-3386-1
|
kPa
|
58.80
|
||||
|
Compression 50%
|
|
ISO-3386-1
|
kPa
|
90.80
|
||||
|
Compression Set 25% 0.5H
|
|
ISO-1856
|
%
|
16.00
|
||||
|
Compression Set 25% 24H
|
|
ISO-1856
|
%
|
9.80
|
||||
|
Operating Temperature Range
|
|
Internal
|
°C
|
(-40，+80)
|
||||
|
Water Absorption % Volume (Maximum)
|
|
Internal
|
%
|
0.50
|
||||
|
Thermal Conductivity
|
|
JIS A1412-2
|
W/mK
|
0.045
|
||||
|
Shore - C
|
|
ASTM D2240
|
°C
|
19
|
||||
|
Flammability
|
|
FMVSS302
|
mm/min
|
-
|
||||
Performance
Heat Insulation
Single foaming structure can reduce the loss of heat between air convection, suitable for making heat preservation pipes and boards.
Waterproof
Closed-cell foam, non-water-absorbing, moisture-proof.
Shock absorption
Soft texture and good resilience enable foam to have a shock absorption effect and play a protective role.Semi-hard quality foams have good rebound capabilities after strong impact.
Sound absorption
Good sound and noise absorption capability.
Fire retardancy
This product has fire-blocking and smoke-reducing property, when burned, its density is very low and doesn't melt, without any small fire ball left and with the merit of self-extinguishing.
Low conductivity factor
Conductivity of this material is 0.034 w / mk at an average° C. As this product has high heat-releasing ratio, it can get the same heat-preservation effect at less half thickness of other insulating product under the same condition, saving not only space but also cos
t.
Application
Automotive & cars
Car door membrane
1.Material:XPE foam
2.Density:100kg/m3
3.Thickness:3mm
Car air duct
1.Density:66.6kg/m3,100kg/m3
2.Thickness:4mm,4.5mm,5mm
Insulation pads
1.Material:XPE foam with aluminum foil
2.Density：33.3kg/3
3.Thickness:5mm
1.Material:XPE foam
2.Density:100kg/m3
3.Thickness:3mm
Car air duct
1.Density:66.6kg/m3,100kg/m3
2.Thickness:4mm,4.5mm,5mm
Insulation pads
1.Material:XPE foam with aluminum foil
2.Density：33.3kg/3
3.Thickness:5mm
