1> High ratio of crushing
2> Homogeneous final grain size
3> Simple structure
4> Reliable working condition
5> Easy maintenance
6>Low operating cost
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Oasis
-
Dimension(L*W*H):
-
400*600
-
Weight:
-
6.5kg
-
Product name:
-
Jaw Crusher
-
Keyword:
-
Stone Impact Crusher
-
Color:
-
Customer Requirement
-
Raw material:
-
Carbon Steel
-
After sale Service:
-
1year
-
Quality:
-
Advanced Technology
-
Function:
-
Mining Crusher Equipment
-
Features:
-
High Efficiency Low Cost
-
Usage:
-
Mining Crushing
-
Motor:
-
Chinese Famous Brand
-
Local Service Location:
-
Indonesia, Kenya
-
After-sales Service Provided:
-
Online support
-
Certification:
-
iso
Quick Details
-
Application:
-
Construciton
-
Capacity(t/h):
-
800
-
Place of Origin:
-
China
-
Brand Name:
-
Oasis
-
Dimension(L*W*H):
-
400*600
-
Weight:
-
6.5kg
-
Product name:
-
Jaw Crusher
-
Keyword:
-
Stone Impact Crusher
-
Color:
-
Customer Requirement
-
Raw material:
-
Carbon Steel
-
After sale Service:
-
1year
-
Quality:
-
Advanced Technology
-
Function:
-
Mining Crusher Equipment
-
Features:
-
High Efficiency Low Cost
-
Usage:
-
Mining Crushing
-
Motor:
-
Chinese Famous Brand
-
Local Service Location:
-
Indonesia, Kenya
-
After-sales Service Provided:
-
Online support
-
Certification:
-
iso
Product Description

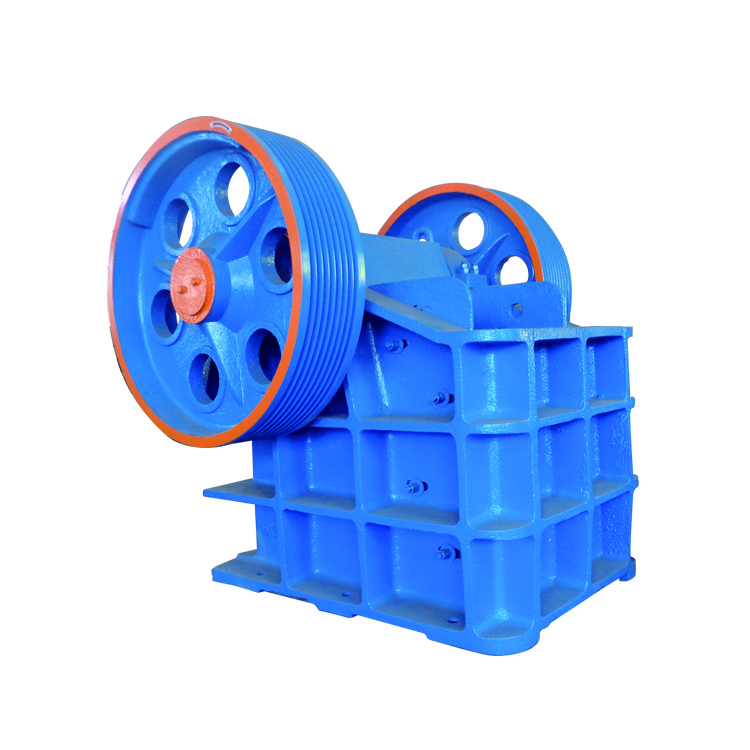

Jaw crusher has the features of great crushing ration,uniform size of products,output size can adjustable,it can be used to crush material its compress resistance not more than 350MPa,output size can adjust big or small
|
Model
|
Feed Opening
(mm) |
Feeding Size
(mm) |
Discharge port setting range(mm)
|
Capacity
(t/h) |
Speed Of
Eccentric Shaft (r/min) |
Motor
Power (kw) |
Total
Weight (t) |
Dimensions (cm) |
|
LZPE150*250
|
150*250
|
125
|
10-40
|
0.8-3
|
300
|
5.5
|
0.6
|
68*65*85
|
|
LZPE200*300
|
200*300
|
180
|
15-50
|
2-6
|
260
|
7.5
|
0.9
|
80*78*103
|
|
LZPE200*350
|
200*350
|
180
|
18-70
|
3-10
|
260
|
11
|
1.3
|
100*87*99
|
|
LZPE250*400
|
250*400
|
210
|
20-60
|
3-13
|
300
|
15
|
2.8
|
145*128*127
|
|
LZPE400*600
|
400*600
|
340
|
40-100
|
10-34
|
275
|
30
|
5.8
|
176*166*168
|
|
LZPE500*750
|
500*750
|
425
|
50-100
|
20-52
|
275
|
45
|
10.3
|
198*208*187
|
|
LZPE600*900
|
600*900
|
500
|
65-160
|
30-75
|
250
|
75
|
13.5
|
229*229*240
|
|
LZPE750*1060
|
750*1060
|
630
|
80-140
|
72-130
|
250
|
110
|
28
|
266*243*280
|
|
LZPE870*1060
|
870*1060
|
660
|
200-260
|
181-210
|
250
|
110
|
30.5
|
281*243*280
|
|
LZPE900*1060
|
900*1060
|
685
|
230-290
|
100-250
|
250
|
110
|
31
|
287*242*294
|
|
LZPE900*1200
|
900*1200
|
750
|
95-165
|
87-164
|
200
|
110
|
50
|
338*287*333
|
|
LZPE1000*1200
|
1000*1200
|
850
|
195-265
|
197-214
|
200
|
110
|
51
|
348*387*333
|
|
LZPE1200*1500
|
1200*1500
|
1020
|
150-300
|
250-500
|
180
|
160
|
100.9
|
420*330*350
|
|
LZPEX150*750
|
150*750
|
120
|
18-48
|
5-16
|
320
|
15
|
3.5
|
120*153*106
|
|
LZPEX250*750
|
250*750
|
210
|
15-50
|
13-35
|
300
|
30
|
4.9
|
138*175*150
|
|
LZPEX250*1000
|
250*1000
|
210
|
25-60
|
10-32
|
330
|
37
|
6.5
|
156*195*190
|
|
LZPEX250*1200
|
250*1200
|
210
|
25-60
|
13-38
|
330
|
45
|
7.7
|
214*166*150
|
|
LZPEX300*1300
|
300*1300
|
250
|
20-90
|
10-65
|
300
|
75
|
11
|
272*195*160
|
-
Main Features Of primary crusher
-
使用效果描述
Detailed Images
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Packing&Shipping
We will load different sizes of packing according to different machine sizes, and the normal packing is in wooden cases. If
exported to European countries, wood frame will be fumigation. If the container is too tight, we will use the PE film according to
the customer's special requirements.
exported to European countries, wood frame will be fumigation. If the container is too tight, we will use the PE film according to
the customer's special requirements.
Company Introduction
Shicheng Oasis Mineral Equipment Manufacturing Co., Ltd. is an import-export trade enterprise engaged in the production, sale and installation of mineral equipment, environmental protection equipment, hardware and machinery. Our company has been approved for registration by relevant departments, and can provide users with project design, process design and uniform and non-uniform design services.We manufacture crushers, sand makers, mine selection equipment and laboratory equipment. Our main series include shaking tables, jiggers, spiral chutes, flotation machines, spiral classifiers, ball mills, mixing tanks, feeding machines, vibrating screens, crushers, sand pumps, magnetic separators, hydraulic graders, hydraulic cyclones, sand machines, laboratory sand pumps, laboratory shakers, laboratory spiral chutes, laboratory flotation machines, laboratory ball mills, laboratory crushers,laboratory magnetic separators, laboratory mixing barrels, grinding machines and vacuum filters.We are able to make products according to customers' requirements. Our machines are widely used to separate iron, copper, gold, silver, lead, molybdenum,tungsten, manganese and other rare and precious metals. Our products are now widely used in metallurgical, mining, chemical, construction, coal processing, refractory and research fields.
Our Services & Strength
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
FAQ
1. Installation:
If the buyer ask the seller to send the technicians to guard to install the machines in the site, the buyer should take all the
charges for the technicians and pay the salary.
2. What about Warranty?
Hi, Ours Warranty is 1 year for whole machinery .
Spare parts. For wear parts, we guarantee the high quality parts for long-term supply for Crusher.
3. Payment Method:
By L/C, D/A, D/P, T/T, Western Union, MoneyGram, and so on.
4. If you want us recommend a suitable type and best offer for you ,please let us know as follows:
1). you only need one cone crusher or a whole crushing line? (Include the feeder ,crusher, screen, conveyor and so on)
2).what is the max size of the stone (mm/inch)?
3).what is the output size you need?
5. what could you help me to do for the business?
Many thanks for your trust, we can provide you with proposal chart for complete production lines Crusher, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipment,drilling rig, loader, trucks, excavators and so on.
If the buyer ask the seller to send the technicians to guard to install the machines in the site, the buyer should take all the
charges for the technicians and pay the salary.
2. What about Warranty?
Hi, Ours Warranty is 1 year for whole machinery .
Spare parts. For wear parts, we guarantee the high quality parts for long-term supply for Crusher.
3. Payment Method:
By L/C, D/A, D/P, T/T, Western Union, MoneyGram, and so on.
4. If you want us recommend a suitable type and best offer for you ,please let us know as follows:
1). you only need one cone crusher or a whole crushing line? (Include the feeder ,crusher, screen, conveyor and so on)
2).what is the max size of the stone (mm/inch)?
3).what is the output size you need?
5. what could you help me to do for the business?
Many thanks for your trust, we can provide you with proposal chart for complete production lines Crusher, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipment,drilling rig, loader, trucks, excavators and so on.
