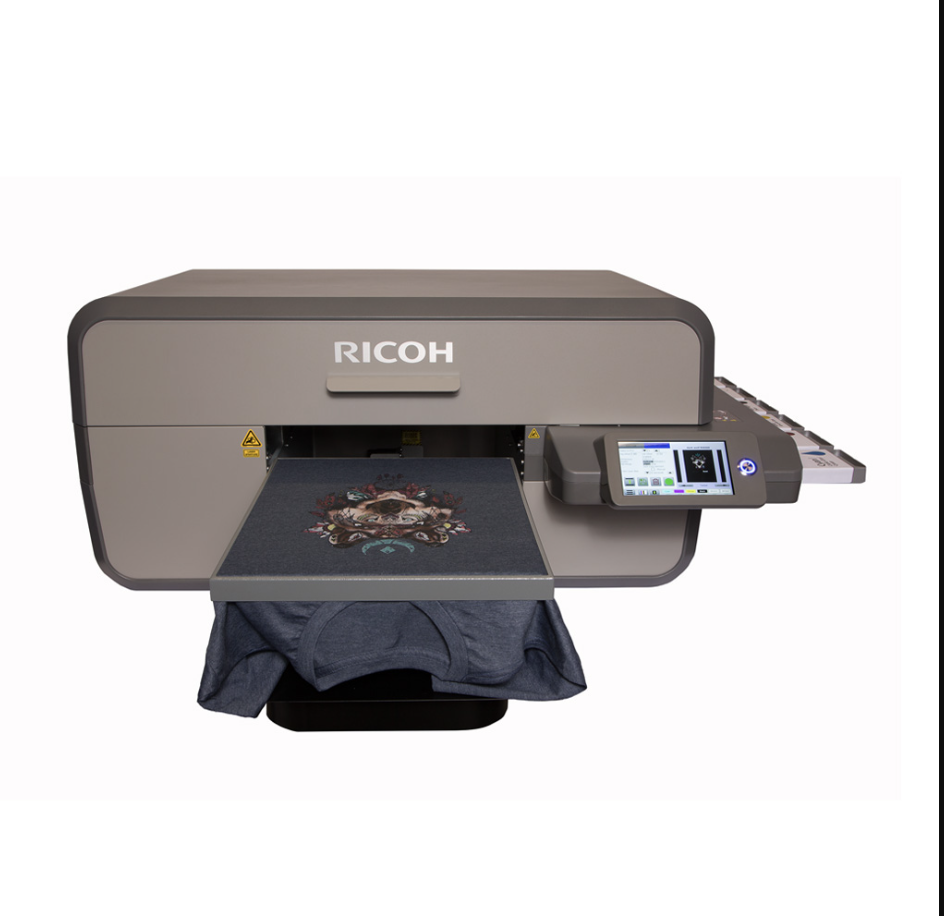

New Order RICOHS DTG-Ri 3000 Printers High quality

110 x 140 x 150 mm—waste ink tank

Cartridge dimensions—Excluding projection area of 4.2 mm
Standard—278 x 25 x 100 mm
XL—385 x 25 x 100 mm

Cleaning
CMYK + White—90 seconds
CMYK—80 seconds
White—90 seconds

Ink filling
CMYK + White, Short—100 seconds
CMYK + White, Long—200 seconds
CMYK, Short—90 seconds
CMYK, Long—110 seconds
White, Short—100 seconds
White, Long—200 seconds

Ink circulation
Depends on user preference

Ink cartridge yield
Ricoh garment ink Type A—cyan, magenta, yellow, black
550 prints—Standard
1,100 prints—XL

Ink cartridge —white (PowerBright only)
75 prints—Standard
150 prints—XL

Ink capacity
Ricoh garment ink Type A—cyan, magenta, yellow, black
220 ml—Standard
440 ml—XL

PowerBright Plus—cyan, magenta, yellow, black
220 ml—Standard
440 ml—XL

PowerBright—white
220 ml—Standard
440 ml—XL

Cleaning solution—clear
228 ml—Standard

High Viscosity storage solution—clear
228 ml—Standard

Note: The inks meet pollution and safety chemical toxicity standards, are harmless to human beings and animals, are compliant with environmental laws of the country in which they are used, and are listed in the existing chemical substances register.

Substrates
Cotton, 50/50 cotton blend

Platen
Standard
Standard

Optional
Sleeve, Hat, Youth size

Garment size (W x H)
T-shirt—standard platen
US size
600 x 790 mm—XL
560 x 780 mm—L
520 x 700 mm—M
460 x 670 mm—S
450 x 620 mm—Kids (L)
430 x 580 mm—Kids (M)
380 x 520 mm—Kids (S)

Japan size
580 x 780 mm—XL
550 x 740 mm—L
520 x 700 mm—M
490 x 660 mm—S

Kids size
460 x 630 mm—160cm
400 x 560 mm—140cm
350 x 480 mm—120cm
330 x 440 mm—100cm, youth size platen

Tote bag—standard platen
300–480 x 300–400 mm—L
230–360 x 230–370 mm—M
150–300 x 150–200 mm—S

Towel—standard platen
750 x 1,400 mm—Bath (L)
500 x 1,000 mm—Bath (S)
350 x 1,000 mm—Face (L)
250 x 750 mm—Face (S)
300 x 340 mm—Hand

Handkerchief—standard platen
450 x 450 mm—Men's

Youth size platen
250 x 250 mm—Women's
200 x 200 mm—Mini

Scarf—standard platen
660 x 660 mm—US (L)
530 x 530 mm—Japan (M)

Cushion cover—standard platen
400 x 400 mm—Regular

Bib—youth size platen
200 x 220 mm—M
140 x 180 mm—S

Pouch—youth size platen
300 x 350 mm—L
250 x 300 mm—M
200 x 250 mm—S

Garment transfer stage
Fixed—Picture frame
Print side—Upward
Options—on platen change

Maximum garment size
Standard platen—14 x 18 inches
Sleeve platen—4 x 17 inches
Hat platen—6 x 1.5 inches
Youth size platen—8.5 x 12 inches

Maximum garment thickness
58.4 mm—automatic adjustment
68.5 mm—manual adjustment

Applications
T-shirt, tote bag, sweat shirt, polo shirt, hat, towel, handkerchief, bib

Applicable weight
1.36 kg

Table height adjustment
Automatic

Note: Depending on the need, the height can be adjusted manually as well.

Garment thickness detection
Method—Laser
Laser class—Class 2
Arrangement range—3.3–3.8 mm, distance from nozzle to upper side of platen

Host
Windows PC

System configuration
1 to 1 connection with host
1 to 1 connection via USB port

Full-colour 12 x 10-inch graphic
White ink pass
187.2 seconds—CMYK Superfine/White fine
187.78 seconds—CMYK Fine/White fine
187.26 seconds—CMYK Speed/White fine
189.49 seconds—CMYK Draft/White fine

CMYK ink pass
197.92 seconds—CMYK Superfine
99.85 seconds—CMYK Fine
50.76 seconds—CMYK Speed
26.59 seconds—CMYK Draft
197.14 seconds—CMYK Superfine/White fine
100.89 seconds—CMYK Fine/White fine
50.90 seconds—CMYK Speed/White fine
25.96 seconds—CMYK Draft/White fine

Note: The device takes less than 10 seconds initially to discharge ink after pressing the start button.

45 seconds or less

Note: Under recommended conditions that power is on every day except for automatic maintenance mode and that the device is switched on every time.

Temperature—operating
15–32º C

Temperature—non-operating
-30–43º C

Humidity—operating
45–80% RH

Humidity—non-operating
15–80% RH

Maximum wet-bulb temperature
25º C

Temperature gradient
Less than 20º C per hour

Vibration
No vibration

Impact tolerance
Horizontal —s peed of 0.5 m/s against wall
Vertical—drop from 5 cm height

Illumination
2,000 lux or less

Note: Can withstand natural light of 5,000 lux or less if the device is placed near window.

Atmospheric pressure
740 hPa or more

Maximum altitude
2,500 m

Static electricity
±4 KV—contact discharge
±8 KV—air discharge
