Quick Details
-
Productivity:
-
1190~30800L/D
-
Weight (KG):
-
1000 kg
-
STP Certification:
-
CCS/EC/BV/LR/GL
-
Sewage Treatment Plant Capacity:
-
15~440p
-
Average Load:
-
1190~30800L/d
-
Electricity:
-
AC 380V/50Hz/3p, AC 415V/50Hz/3p, AC 440/60Hz/3p
-
BOD5:
-
Less than 25mg/L
-
COD:
-
Less than 125mg/L
-
TSS:
-
Less than 35mg/L
-
Coliform:
-
100/100ml
-
PH:
-
6~8.5
-
Chlorine:
-
Less than 0.5mg/l
Quick Details
-
Applicable Industries:
-
MBR Sewage Treatment System, Compact Waste Water Treatment Equipment Plant
-
Place of Origin:
-
China
-
Brand Name:
-
Sewage Treatment
-
Productivity:
-
1190~30800L/D
-
Weight (KG):
-
1000 kg
-
STP Certification:
-
CCS/EC/BV/LR/GL
-
Sewage Treatment Plant Capacity:
-
15~440p
-
Average Load:
-
1190~30800L/d
-
Electricity:
-
AC 380V/50Hz/3p, AC 415V/50Hz/3p, AC 440/60Hz/3p
-
BOD5:
-
Less than 25mg/L
-
COD:
-
Less than 125mg/L
-
TSS:
-
Less than 35mg/L
-
Coliform:
-
100/100ml
-
PH:
-
6~8.5
-
Chlorine:
-
Less than 0.5mg/l

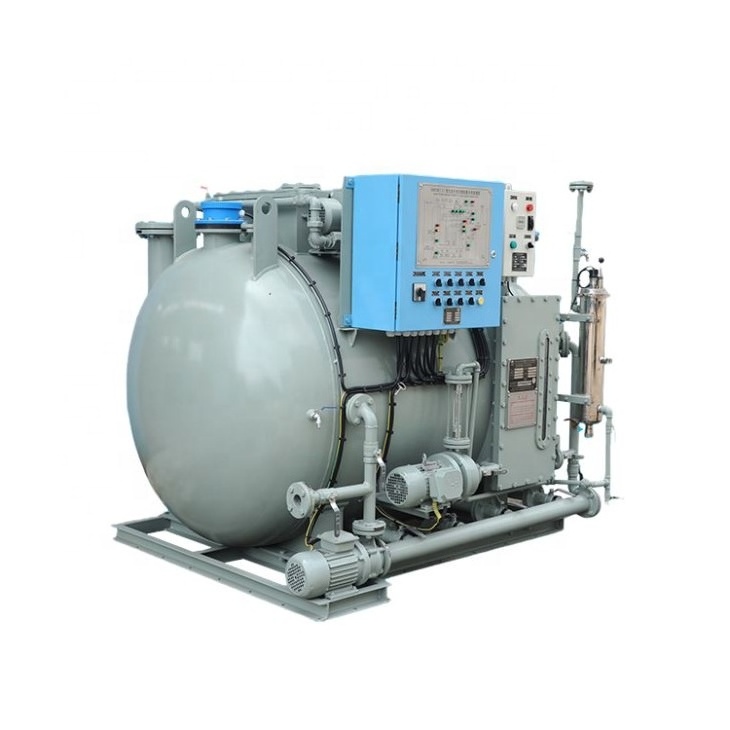

Compact Waste Water Treatment Equipment Plant for Sewage Treatment
Main Parameters of Sewage Treatment System
(1)Usage : for treating sewage on board ,shipyard or dock
(2) “MBR” technology , have impact structure to match limited space of cabin
(3)International standard : IMO resolution MEPC.227(64) Sewage Treatment System
(4) Discharge standard:TSS≤35mg/L,BOD5≤25mg/L,COD≤125mg/L,Coliform≤ 100pc/100ml,PH: 6~8.5
(5)Electricity:AC380v/50HZ/3Φ AC440V/60HZ/3Φ (the electricity can be changed according to your requir e ment )
(6)Capacity:from 15 ~ 440 persons
(7)Certificate: EC,CCS,BV,LR,GL Sewage Treatment System
The different effluent standards of STP
|
Discharge standard Convention |
IMO Old standard |
IMO New standard |
USCG |
Alaska |
|
TSS (mg/l) |
50 |
35 |
150 |
30 |
|
BOD5 (mg/l) |
50 |
25 |
NR |
30 |
|
COD (mg/l) |
NR |
125 |
NR |
NR |
|
C oliform (per 100ml) |
250 |
100 |
200 |
20 |
|
PH |
6~9 |
6~8.5 |
NR |
6~9 |
|
Residual chlorine (mg/l) |
NR |
<0.5 |
NR |
10 |
|
Type approval Test days |
10 |
10 |
10 |
30 |
System Principle diagram
Specification of MBR Sewage Treatment System
Other Related Equipments
1 MBR Sewage Treatment Plant
2 Biochemical Sewage Treatment Plant
3 Marine Black and Gray Water Treatment and Water Recover y System
4 Marine Sewage Commin u ting and Disinfecting Holding Tank
5 Oil Water Separator
6 UV Sterilizer
7 Seawater Desalination Plant /Fresh Water Generator
8 Waste Incinerator
Oily Water Separator
RO Seawater Desalination plant
Please contact us talk about details if you are interested in Domestic Water Treatment Plant Sewage Treatment System or other water treatment equipment.
