Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Jianghao
-
Model Number:
-
JHK-1000GF
-
Speed:
-
1500RPM
-
Weight:
-
10500kgs
-
Product Name:
-
1mw generator
-
Engine:
-
Cummins QSK38-G12
-
Alternator:
-
Stamford,Marathon,Mecc alte,ABB,Leroy somer,Hengsheng
-
Controller:
-
Deepsea/DEIF/Smartgen
-
Generator Type:
-
Open/silent/silent trailer/Container
-
Function:
-
Standard/Auto start/ATS/Parallel synchronization
-
Cooling method:
-
Water Cooleded
-
Package:
-
Plywood pallet,Plywood case
-
Options:
-
Automatic Transfer Switch
-
Certification:
-
CE, ISO
Quick Details
-
Rated Voltage:
-
380V/400V/440V/480V
-
Rated Current:
-
1800A
-
Frequency:
-
50HZ
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Jianghao
-
Model Number:
-
JHK-1000GF
-
Speed:
-
1500RPM
-
Weight:
-
10500kgs
-
Product Name:
-
1mw generator
-
Engine:
-
Cummins QSK38-G12
-
Alternator:
-
Stamford,Marathon,Mecc alte,ABB,Leroy somer,Hengsheng
-
Controller:
-
Deepsea/DEIF/Smartgen
-
Generator Type:
-
Open/silent/silent trailer/Container
-
Function:
-
Standard/Auto start/ATS/Parallel synchronization
-
Cooling method:
-
Water Cooleded
-
Package:
-
Plywood pallet,Plywood case
-
Options:
-
Automatic Transfer Switch
-
Certification:
-
CE, ISO

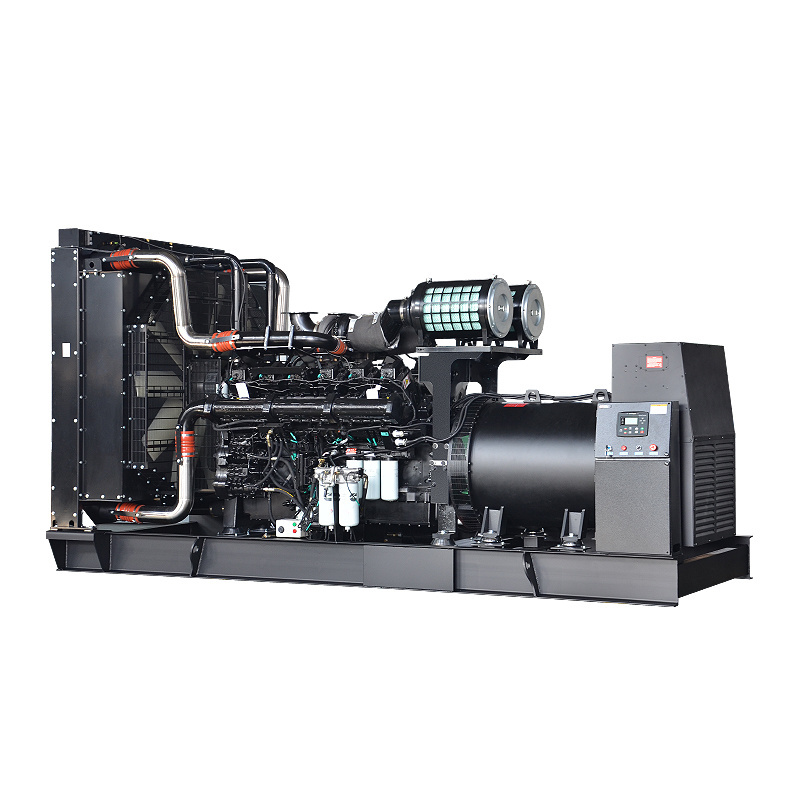

Products Description
Specifications
|
Diesel Generator Details
|
Item
|
|
|
Model
|
JHK-1000GF
|
|
|
Power
|
1000KW/1250KVA
|
|
|
Frequency
|
50HZ
|
|
|
Voltage
|
380/220V(Voltage can be customized)
|
|
|
Optional Type
|
Open/Soundproof/Trailer
|
|
|
Size of Open Type
|
5100*2800*2500mm
|
|
|
Weight of Open Type
|
10500kg
|
|
|
Power Engine
|
Max. torque
|
|
|
Brand&Model
|
Cummins QSK38-G12
|
|
|
Cyliners
|
12 V Type
|
|
|
Bore*Stroke
|
159*159mm
|
|
|
Displacement
|
38L
|
|
|
Fuel Consumption at 100% Load
|
210g/kw.h
|
|
|
Speed Governor
|
Electronic
|
|
|
Alternator
|
|
|
|
Optional Brands
|
Stamford/Leroy Somer/Marathon
|
|
|
Exciter Type
|
Single bearing, Brushless, Self-excited
|
|
|
Power Factor
|
0.8
|
|
|
Voltage Adjust Range
|
≥5%
|
|
|
Insulation Grade
|
H
|
|
|
Protection Grade
|
IP23
|
|
|
Controller
|
|
|
|
Optional Brands
|
Deep Sea/ComAp/Smartgen
|
|
