Quick Details
-
Power:
-
15-70Kw depends on capacity
-
Dimension(L*W*H):
-
20-100M2 depends on capacity
-
Weight:
-
KG
-
Equipment Material:
-
SUS304 or Red Copper M2 for outer shell
-
Thickness of Tanks:
-
3mm for inner container/2mm for outer shell
-
Color Available:
-
Mirror SUS, Luxury red copper
-
Heating:
-
Electric/steam
-
Heat Insulation:
-
Polyurethane or Rockwool with Thickness=80mm
-
Inner Polishing Precision:
-
0.4 Micrometer
-
Volume Design:
-
Properly according to the capacity request
-
Controlling System:
-
PLC; HMI or Touch Panel
-
Application:
-
beer brewing
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Tiantai or OEM
-
Voltage:
-
3phase/380v/50Hz or customized
-
Power:
-
15-70Kw depends on capacity
-
Dimension(L*W*H):
-
20-100M2 depends on capacity
-
Weight:
-
KG
-
Equipment Material:
-
SUS304 or Red Copper M2 for outer shell
-
Thickness of Tanks:
-
3mm for inner container/2mm for outer shell
-
Color Available:
-
Mirror SUS, Luxury red copper
-
Heating:
-
Electric/steam
-
Heat Insulation:
-
Polyurethane or Rockwool with Thickness=80mm
-
Inner Polishing Precision:
-
0.4 Micrometer
-
Volume Design:
-
Properly according to the capacity request
-
Controlling System:
-
PLC; HMI or Touch Panel
-
Application:
-
beer brewing

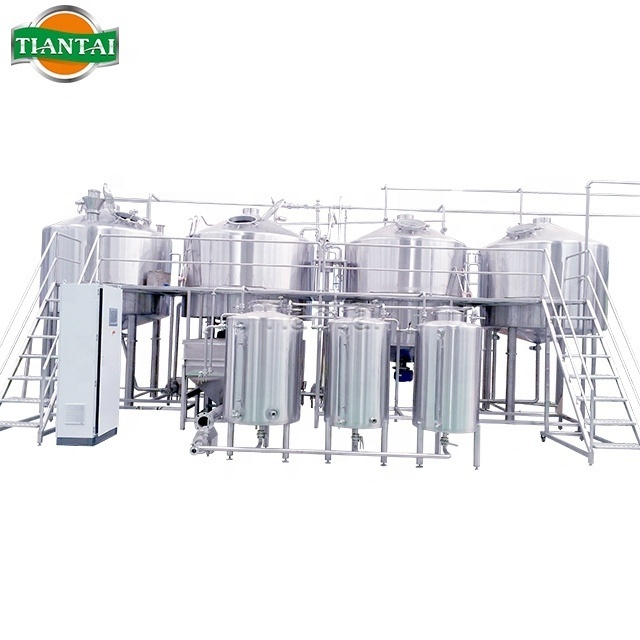

10000L 100HL automatic stainless steel steam heating five vessel brewhouse beer brewery equipment for sale uk
Part 1
General Description of 10000L 5 Vessel Brewhouse
------ Quality Design for Craft Brewing
1. Introduction
The 10000L 100HL Good quality automatic stainless steel steam heating five vessel brewhouse is often used in microbreweries. The system contains five brewhouse vessels, a Mash cooker,Mash tun, lauter tun , Kettle, whirlpool tun . The cooking process is done in mash cooker, The mashing process is done in mash tun; the wort filtration process are co mpleted by lauter tank; The boiling are in Kettle and whirlpool processes are completed by one whirlpool tank.
This system usually brews six to seven batches a day. According to different fermentation cycles of brewed beer, 8 pcs 20000L fe rmenters or 1 5 pcs 10000L fermentors can usually be configured, and 6 pcs 20000L fermenters and 6 pcs 10000L fermenters can also be configured to meet the needs of various beer types.
The system also needs to be equipped with a complete automatic control system , malt milling system , CIP system , cooling system , steam heating system , air system , etc.
2. Our Advantage
> With ISO TUV SGS, the product meets the GB/
CE/PED/ASME
standard
>
Local service
in EUROPE, AUSTRALIA ETC
>
5 Years
Warranty for tanks
>
0 trade risk
verified by more than 1100 breweries
> 20 Years Manufacture and Management Experience
3. Features
>
Five
vessels with hot water,
10000L
iter/b
atch
, first batch takes about 8 hours, and two batches of 1
2
hours are allowed
, it can do at most 4-5 batches per day
;
> All certificated
304
stainless steel, easy to clean; Copper cladding for special environments such as bars;
>
Steam heated
, high thermal efficiency, gentle for wort; Electric or direct fire heating available;
> The
wort cooled
by tap water and -5 ºC ice water to cool in two stages, Single stage available;
> Mashing heating and fermentation cooling
automatically controlled
, and manual control switched at any time;
> Manual valve control, humanized operation, low equipment investment cost, high cost performance; PLC automatic control for upgrade;
4. Parameters
|
Design Basis
Ingredients: Malt Mashing: Infusion & Decoction OG: 12 Plato Boiling Strength: 8%-10% |
Energy Consumption
Heating: Steam Steam: 200 0 kg/hr (0.18Mpa) Power: about 30 KW Water: Hot water recovery |
|
Dimension Mash cooker : Φ 290 0mm Mash Tun: Φ 290 0mm Lauter Tun: Φ 380 0mm Kettle Tun: Φ 290 0mm Whirlpool Tun: Φ 290 0mm Floor Space:about 100 00* 95 00mm |
Controlling
Control Panel:PLC Auto Screen Brewing Valve:Pneumatic CIP Valve:Manually Manifold Temperature:PLC Auto Control |
5. Components
|
100HL Mash cooker |
1set |
|
100HL Mash Tun |
1set |
|
100HL Lauter Tun |
1set |
|
100HL Kettl e Tun |
1set |
|
1070HL Whirlpool Tun |
1set |
|
200 HL Hot Water Tank |
1set |
|
Non-slip Work Plateform |
1set |
|
Sanitary Centrifugal Pump [LYSF] |
5 sets |
|
Sanitary Piping |
1set |
|
Valves and Fittings |
1set |
|
Manual Water Mixing Station |
1set |
|
Manual Wort Cooling Station |
1set |
|
Pipeline Instrument Sensor |
1 unit |
|
Wort Balance Column |
1set |
|
100 M2 Heat Exchanger [304SS NANHUA] |
1set |
|
Pipe Filter |
1set |
|
Wort Aeration Station |
1set |
|
5 0L Yeast Feeder |
1set |
