Quick Details
-
Drilling Depth:
-
Max.130
-
Product name:
-
Water Wells Drilling Rigs
-
effective height:
-
6m
-
Drilling depth:
-
130m
-
Active drill pipe:
-
53/59*4200mm
-
Drilling angle:
-
90°~75°
-
Supporting power (diesel engine):
-
13.2KW 2200r/min
-
Vertical shaft speed:
-
142 285 570r/min
-
Vertical axis travel:
-
450mm
-
hoist:
-
Single rope lifting force
-
Rated load:
-
2t
Quick Details
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
2400*950*1400mm
-
Weight:
-
850 KG
-
Drilling Depth:
-
Max.130
-
Product name:
-
Water Wells Drilling Rigs
-
effective height:
-
6m
-
Drilling depth:
-
130m
-
Active drill pipe:
-
53/59*4200mm
-
Drilling angle:
-
90°~75°
-
Supporting power (diesel engine):
-
13.2KW 2200r/min
-
Vertical shaft speed:
-
142 285 570r/min
-
Vertical axis travel:
-
450mm
-
hoist:
-
Single rope lifting force
-
Rated load:
-
2t
Used portable small diesel water well drilling rigs for sale drilling rig for water well

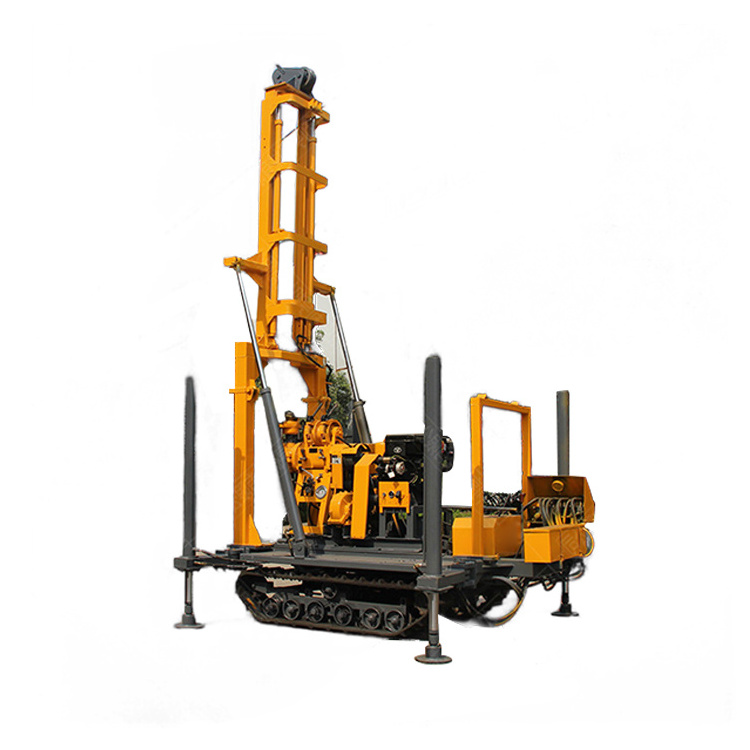

Hydraulic Water Well Drill Rig
Hydraulic Water Well Drill Rig is a high-performance, mechanized drilling equipment designed for efficient and deep water well drilling operations. This advanced system utilizes hydraulic power to drive the drilling components, delivering powerful thrust and rotation to pierce through hard rocks and varied geological formations.Equipped with a robust hydraulic system, the rig ensures constant and controllable drilling force for consistent hole formation.
| Product parameters | |
| Drilling depth | 130m |
| final hole diameter | 75mm |
| Active drill pipe | 53/59*4200mm |
| Supporting power (diesel engine) | 13.2KW 2200r/min |
| Weight | 850kg |
| Dimensions | 2400*950*1400mm |
| Vertical shaft speed | 142 285 570r/min |
| Vertical axis travel | 450mm |
| Single rope lifting force | 9.6KN |
| Single rope lifting speed | 0.41 0.82 1.64m/s |
| Wire rope capacity | 27m |
| Rated load | 2t |
| effective height | 6m |
| Tower leg specifications | 73mm |
| flow | 95L/min |
| pressure | 1.2Mpa |
