Quick Details
-
Brand Name:
-
Maxway
-
Place of Origin:
-
Guangdong, China
-
Refresh Rate:
-
60 MHz
-
Wide Color Gamut:
-
72%
-
price:
-
get latest price
-
type:
-
17 inch hd input lcd monitor
-
Display ratio:
-
5:4
-
Display color:
-
16.7 M
-
View angel (L/R/U/D):
-
70/70/60/60
-
AC Input:
-
110-240V
-
Housing material:
-
Metal
-
I/O interface:
-
VGA, HD input, Audio in/out, power input
-
Installation:
-
Build-in
Quick Details
-
Brightness:
-
1500nits
-
Contrast Ratio:
-
350:1
-
Panel Type:
-
TFT
-
Brand Name:
-
Maxway
-
Place of Origin:
-
Guangdong, China
-
Refresh Rate:
-
60 MHz
-
Wide Color Gamut:
-
72%
-
price:
-
get latest price
-
type:
-
17 inch hd input lcd monitor
-
Display ratio:
-
5:4
-
Display color:
-
16.7 M
-
View angel (L/R/U/D):
-
70/70/60/60
-
AC Input:
-
110-240V
-
Housing material:
-
Metal
-
I/O interface:
-
VGA, HD input, Audio in/out, power input
-
Installation:
-
Build-in

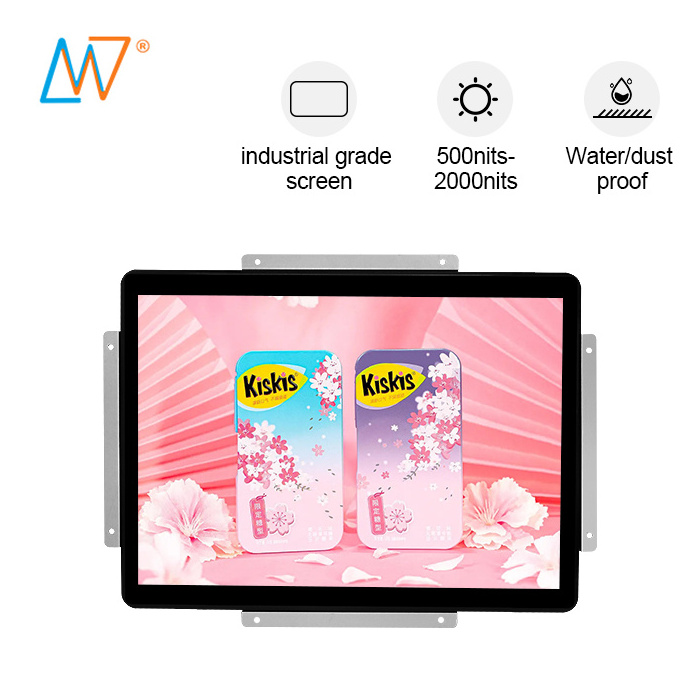

Product view of front, back, side and dimensions.
Product Name:17 inch hd input sunlight 2000 nits high brightness lcd open frame monitor with sdi av bnc
Model Number: MW-174AXMH
Main features and specs.
| Main Features | ||
| 1. Open frame type, Dustproof, Industrial grade | ||
|
2.
Custom design available without addtional cost.
|
||
| 3. Building 2*3W speakers | ||
|
4. With VGA, HD input, Audio in/out, power input
|
||
|
5.
Touch screen: capacitive touch screen optional
|
||
| 6. Easily build-in any kind of display rack | ||
| 7. Accessories: use manual, power adapter | ||
|
More Specs
|
||
| LCD screen specs | Model number : | MW-174AXMH |
| Screen size: |
17"
|
|
| Display ratio: |
5:4
|
|
| Resolution(Pixel): |
1280*1024
|
|
| Display color: | 16.7 M | |
| Response time: | 25 ms | |
| Luminance: |
1000 cd/m2
(700 up to 1500cd/m2)
|
|
| Contrast ratio: | 350:1 | |
| View angle display(L/R/U/D): |
70/70/60/60
|
|
| Power supply | AC Input: | 110-240V |
|
Appearance
|
Color option: | Black or optional |
| Housing material: | Metal | |
| I/O interface: |
VGA, HD input, Audio in/out, power input |
|
| Installation: | Build-in | |
|
Unit dimensions:
|
358.5x296.5x18.5mm
|
|
| Screen area: |
337.92*270.33MM
|
|
| Product weight: |
2
.8KGS
|
|
| Packing details | Carton size: |
510*490*380MM
|
| Quantity/Carton: | 5PCS | |
| Gross Weight: | 24KGS | |
|
Package:
|
Carton packing | |
