Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
M-ALITE
-
Model Number:
-
AFL008
-
Color Temperature(CCT):
-
2700-6500K
-
Beam Angle(°):
-
120
-
CRI (Ra>):
-
70
-
Lamp Luminous Flux(lm):
-
≥1000LM
-
Working Lifetime(Hour):
-
30000
-
Working Temperature(℃):
-
-20 - 50
-
Keyword:
-
led reflector with camera
-
Solar panel:
-
Polycrystalline Silicon
-
Lighting mode:
-
Remote Control+light Control
-
Battery:
-
Lithium Iron Phosphate
-
LED Chip:
-
2835
-
Product Name:
-
flood light camera wifi
Quick Details
-
Lamp Body Material:
-
Die-casting Aluminum
-
Warranty(Year):
-
2-Year
-
Lighting solutions service:
-
Lighting and circuitry design, DIALux evo layout, LitePro DLX layout
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
M-ALITE
-
Model Number:
-
AFL008
-
Color Temperature(CCT):
-
2700-6500K
-
Beam Angle(°):
-
120
-
CRI (Ra>):
-
70
-
Lamp Luminous Flux(lm):
-
≥1000LM
-
Working Lifetime(Hour):
-
30000
-
Working Temperature(℃):
-
-20 - 50
-
Keyword:
-
led reflector with camera
-
Solar panel:
-
Polycrystalline Silicon
-
Lighting mode:
-
Remote Control+light Control
-
Battery:
-
Lithium Iron Phosphate
-
LED Chip:
-
2835
-
Product Name:
-
flood light camera wifi
Applications
Specification

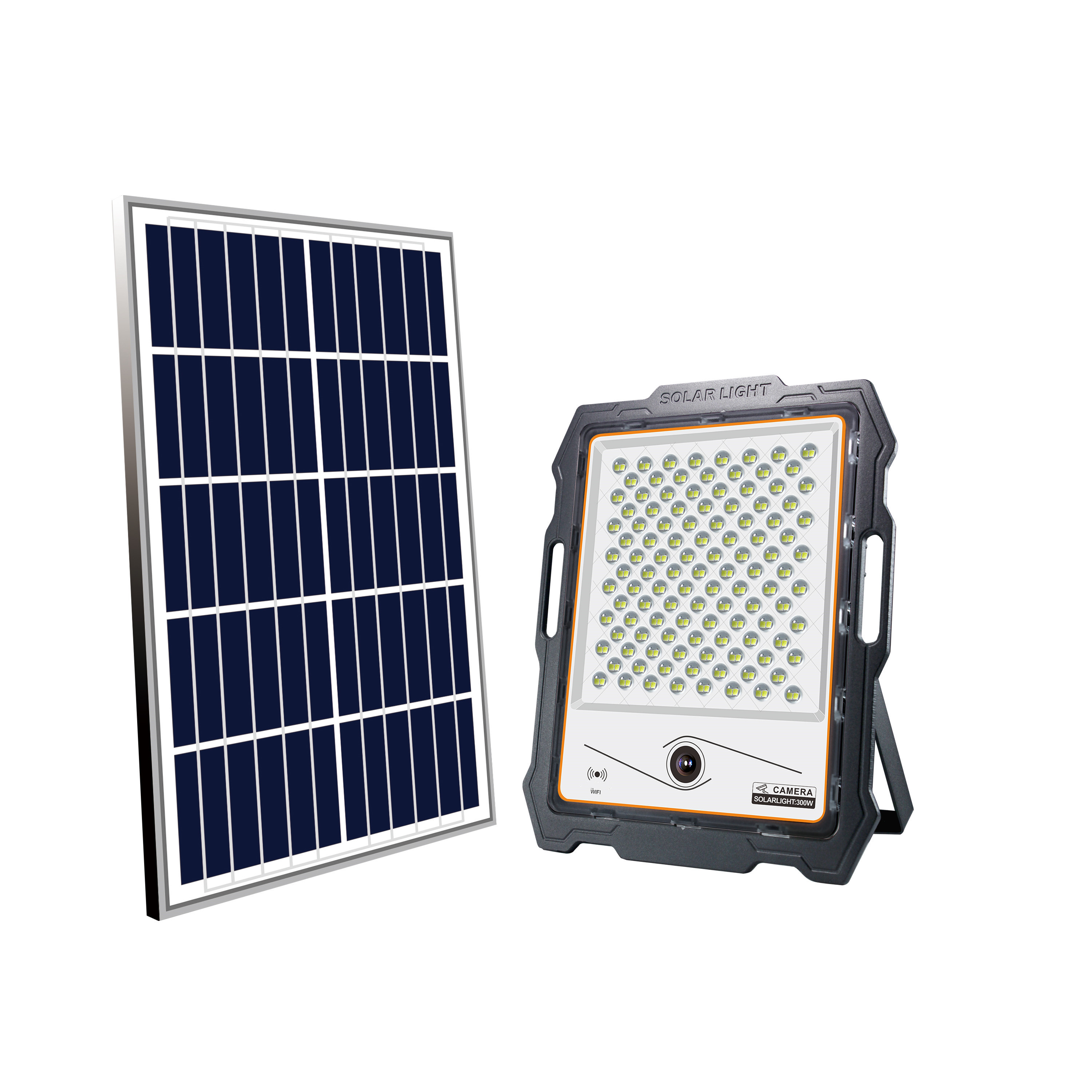

Solar street light with camera
|
Product model
|
AFL008-DW901
|
AFL008-DW902
|
AFL008-DW903
|
AFL008-DW904
|
||||
|
Basic parameters
|
|
|
|
|
||||
|
Watt
|
100W
|
200W
|
300W
|
400W
|
||||
|
Lamp body material
|
Die-casting aluminum
|
Die-casting aluminum
|
Die-casting aluminum
|
Die-casting aluminum
|
||||
|
Lens material
|
Polycarbonate
|
Polycarbonate
|
Polycarbonate
|
Polycarbonate
|
||||
|
Lamp body size（mm）
|
217 * 179 * 45
|
258 * 213 * 45
|
312 * 270 * 50
|
365 * 295 * 50
|
||||
|
Number of LED（pcs）
|
82
|
144
|
236
|
324
|
||||
|
Battery capacity (mAh)
|
12000
|
24000
|
30000
|
42000
|
||||
|
Photovoltaic panel
|
5 V/ 20 W
(350 * 350 mm)
|
5 V/ 28 W
(500 * 350 mm) |
5 V/ 35 W
(580 * 350 mm) |
5 V/ 40 W
(630 * 350 mm) |
||||
|
Discharge current
|
3.2 V/ 1.8 A
|
3.2 V/ 2.5A
|
3.2 V/ 4A
|
3.2 V/ 5A
|
||||
|
Luminous flux
|
730 LM
|
1160 LM
|
2600 LM
|
3000 LM
|
||||
|
Monitoring parameters
|
IP65
|
60PCS-2835-1W 6V
|
|
242*198*42mm
|
||||
|
Resolution
|
1080P day and night full-color
|
|
|
|
||||
|
Focal length
|
4MM
|
|
|
|
||||
|
System
|
Linux
|
|
|
|
||||
|
Nighttime visual range
|
Better within ten meters
|
|
|
|
||||
|
Active Wi-Fi range
|
Up to 50 meters if there’s no obstacle
|
|
|
|
||||
|
APP PLATFORM
|
Tuya Smart
|
|
|
|
||||
|
TF card
|
Options from 16G to 128G
|
|
|
|
||||
Products Description
Where Wi-Fi can cover, monitor can be connected
High lumens, brightness increased by 50%
Remote controller
APP function display
HD video rindering
Portable & Outer box
Integrating sphere test report
