Quick Details
-
Power (kW):
-
14.87
-
Range of Spindle Speed(r.p.m):
-
0 - 5800 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KY
-
Voltage:
-
According to your need
-
Dimension(L*W*H):
-
depend on different model
-
Weight (KG):
-
1050 KG
-
Marketing Type:
-
Hot Product
-
port:
-
shanghai
-
brand:
-
KY
-
weight:
-
Depend on different model
-
packaging:
-
standard export packaging
-
material:
-
stainless steel 304
-
machine type:
-
with cyclone
-
Function:
-
grind function
Quick Details
-
Output (kg/h):
-
30 - 350 kg/h
-
Feeding Size (mm):
-
0 - 10 mm
-
Output Size (mesh):
-
80 - 500 mesh
-
Power (kW):
-
14.87
-
Range of Spindle Speed(r.p.m):
-
0 - 5800 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KY
-
Voltage:
-
According to your need
-
Dimension(L*W*H):
-
depend on different model
-
Weight (KG):
-
1050 KG
-
Marketing Type:
-
Hot Product
-
port:
-
shanghai
-
brand:
-
KY
-
weight:
-
Depend on different model
-
packaging:
-
standard export packaging
-
material:
-
stainless steel 304
-
machine type:
-
with cyclone
-
Function:
-
grind function
|
Model
|
WFJ-8
|
WFJ-15
|
WFJ-30
|
WFJ-60
|
WFJ-80
|
WFJ-100
|
|||||
|
Capacity
|
5-50
|
30-350
|
50-800
|
100-1200
|
200-1500
|
300-1800
|
|||||
|
Feed Size(mm)
|
<10mm
|
|
|
|
|
|
|||||
|
Final size(mesh)
|
80-500mesh
|
|
|
|
|
|
|||||
|
Total power
|
11.17
|
14.87
|
42.12
|
70.45
|
114
|
134
|
|||||
|
Rotary Speed(r/min)
|
5800
|
5500
|
3650
|
2900
|
2300
|
2000
|
|||||
|
Weight(kg）
|
900
|
1300
|
2000
|
3500
|
3800
|
4000
|
|||||

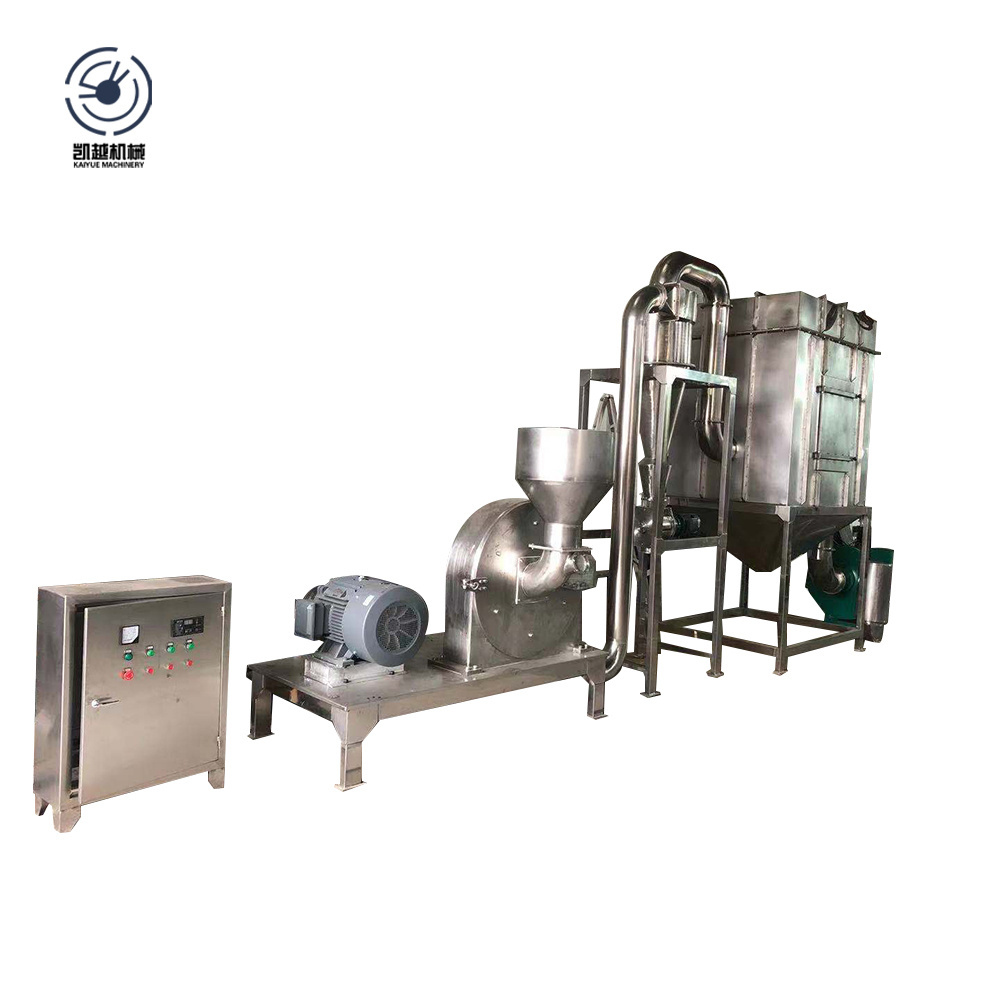

WFJ type micro crushing machine, is designed after introduce, absorb, digest foreign products' advantages, and combined with China's national conditions. The machine has technical performance stability, high yield, nice in appearance and widely used range etc. This machine has ideal effect for crushing dry non-fibrous material. Compared with domestic other type, it has the features like low produce temperature, uniform particle size, it's especially suitable for sugar, plastic powder, Chinese herbal medicine and shattered thermal sensitive material etc.
1.Removable type whirlwind separator
2.Bag-type/filter bag dust collector
3.Air blower
4.Fast disassembly pipe
5.English button /PLC Electric control cabinet
6.Cyclone parts
7.Grinding chamber parts
WF-60B universal grinder with pulse dust collector
regarding the dust collector can do square dust collector .the grinder chamber can do universal grinder type
WFJ Series Micro pulverizer
the dust collector can also do round dust collector. like WFJ micro pulverizer. inside blade have two type for your choose
JIANGYIN KAIYUE MACHINERY MANUFACTURING CO.,LTD(JIANGYIN ZHUTANG KAIDA MACHINE MANUFACTORY), located in beautiful southern town -zhutang town ,jiangyin city ) east to shanghai ,south to wuxi , port traffic is very convenient land and water .also with more than 25 years experience on powder solution, is specialized insolid preparation processing and food & chemical processing equipment. We provide full range of Grinding Machine, Mixing Machine, Drying Machine, Conveyor, Sifting Machine, etc..
Factory Founded in 2003 years, is strong in technology, advanced technology ,.our factory With high quality control and professional service, jiangyin kaiyue machinery manufacturing co.,ltd always keeps eyes on all customers’ satisfactions and grows with customers to achieve mutual benefits. Just as our slogan of “YOUR RELIABLE PARTNER”,we sincerely look forward to establishing a long and good relationship with you and creating a better future together.
Q1：
How can we support yourpurchase?
A1：
If convenient, you can send your materia!to us for a testing run, in the meantimevideo and live pictures of suitable equip.ment tests are available. as well as onlinevideo evaluations.
Q2：
How about your after service and guarantee period?
A2：The warranty period is 12 months after the machine arrives at the buyer's factory, and we have a professional team of experienced engineers serving abroad and providing the best after-sales service to guarantee the lifetime use of machines.
Q3：
What is your pricing position?
A3：
Our prices are in line with normal market levels after years of market evaluation and optimization and adjustment of supply chain costs.
Also, we can adjust the configuration according to the actual needs of the customer without affecting the performance of the equipment.
Q4：
What to do if the equipment breaks down during the production?
A4：
In case of equipment failure, please start the emergency stop immediately, refer to the equipment manual to troubleshoot the cause of the failure, and report back to us promptly with pictures or videos of the equipment, we will reply and solve it within 8-12 hours.
