Quick Details
-
Dimension(L*W*H):
-
670*490*780mm
-
Weight:
-
320
-
Power (kW):
-
3KW/4KW
-
Crimping range:
-
6-51mm(1/4"-2")
-
Crimping force:
-
600T
-
Rated pressure::
-
31.5
-
Scale accuracy::
-
0.01mm
-
Dies size:
-
13.15,19,23,26,31,36,41,47,55,61
-
votage:
-
220v/380v
-
Model quatity:
-
11 sets
-
power:
-
3/4 Kw
-
Control System:
-
Automatic hands or button
Quick Details
-
Place of Origin:
-
hebei
-
Brand Name:
-
jiaruisi
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
670*490*780mm
-
Weight:
-
320
-
Power (kW):
-
3KW/4KW
-
Crimping range:
-
6-51mm(1/4"-2")
-
Crimping force:
-
600T
-
Rated pressure::
-
31.5
-
Scale accuracy::
-
0.01mm
-
Dies size:
-
13.15,19,23,26,31,36,41,47,55,61
-
votage:
-
220v/380v
-
Model quatity:
-
11 sets
-
power:
-
3/4 Kw
-
Control System:
-
Automatic hands or button

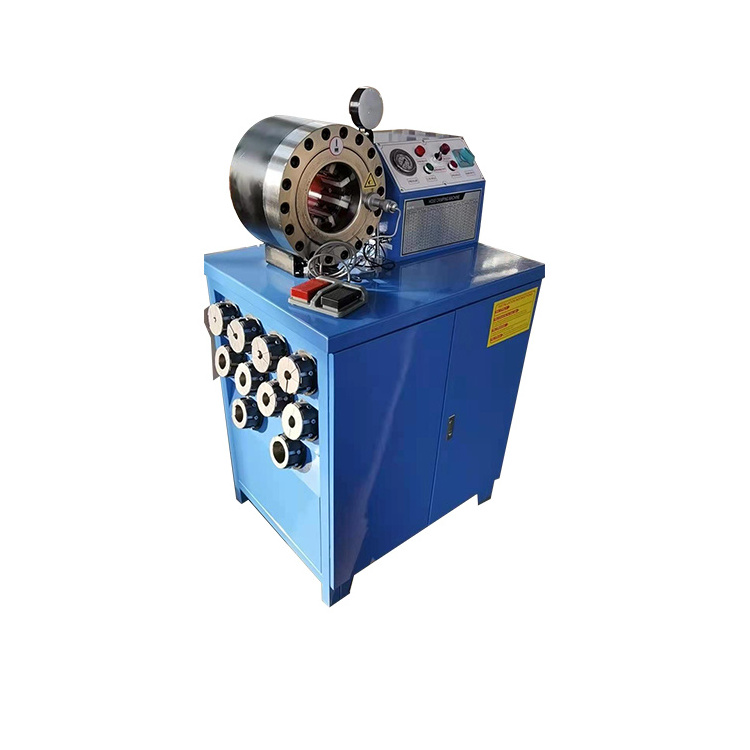

Hose Crimping Machine 4-51mm Hydraulic Hose Crimping Pressing Machine For 4Sh
Specification
|
Crimping range
|
1/8 to 2inch or 4-51mm
|
|
Motor power
|
3.7KW/380V 3 phases, 3KW/220V phase or customize
|
|
Voltage
|
220V/380V/230V/415V or customize
|
|
Crimping force
|
600T
|
|
Dies
|
usually with 11 sets free dies, according customer request to make
|
|
Oil pump out-let quality
|
4ml,5ml,10ml/rad
|
|
Max opening
|
130mm
|
|
Scale accuracy
|
0.01mm
|
|
Dies number
|
Ф13 Ф15 Ф19 Ф22 Ф26（length 60mm）
|
|
|
Ф30 Ф34 Ф39(length 70mm)
|
|
|
Ф45 Ф51 Ф57 Ф63 Ф69(length 80mm)
|
|
Operate method
|
Button,foot pedal or add automatic
|
|
Quick change
|
Yes,if you need quick tool machine, please let me know,thanks
|
|
Dies rack
|
Yes,could install dies table regarding your requirement
|
Different machine the specification different, the data in the list only for your reference , the detailed machine data will mark on the contract, thanks.
Product Description
Main Feature
1) Using forge steel machine head, this kind of steel is more durabler than general steel.
2) Digital peration panel, high crimp accuracy.
3) Humanized design, simple controls and operation.
4) Equipped with a foot pedal, very convenient for free hand operate.
5) Magnetic dies (Patented), very convenient to remove and install dies
We provide OEM for customers. If you need customized services, please contact us.
Hydraulic hose crimping machine has the characteristic such as, better connecting quality, more quick swagging speed, higher efficiency, easier to manipulate, more enduring, more convenient to maintain and etc.
Technical team:
16 years experienced workers, 16 years experienced engineers.
Facilities:
Save your money and time. show you golden quality and best services. Thanks for your support!!
Quality control:
100% inspection before shipment
Hydraulic hose crimping machine mainly by withholding mechanism, motor, gear pumps, control valves and tank components. Suitable for mechanical engineering in the high-pressure hose assembly with hold processing, but also with hold two-way elbow, elbow and large shaped head. Hose crimping machine is a metal fitting through the hydraulic machinery and the corresponding mold with a high pressure hose withhold closely together to prepare a high-pressure hose and fluid connectors, referred to as high-pressure hose assembly. High-pressure hose assemblies are widely used in oil, coal, aerospace, construction machinery, agricultural machinery and other industries etc.
Packing & Delivery
Port:
Ningbo/Shanghai/Tianjin, or according customers request.
Delivery time:
When I got your payment, the packing need 2 working days. Then send out soon. Thanks.
We accept all kinds of payment terms. T/T, L/C, D/P, D/A etc.
