RICHI Cost-Effective 5 T/H Alfalfa Pellet Granulator Machine
RICHI Cost-Effective 5 T/H Alfalfa Pellet Granulator Machine
RICHI Cost-Effective 5 T/H Alfalfa Pellet Granulator Machine
RICHI Cost-Effective 5 T/H Alfalfa Pellet Granulator Machine
RICHI Cost-Effective 5 T/H Alfalfa Pellet Granulator Machine
RICHI Cost-Effective 5 T/H Alfalfa Pellet Granulator Machine
RICHI Cost-Effective 5 T/H Alfalfa Pellet Granulator Machine
RICHI Cost-Effective 5 T/H Alfalfa Pellet Granulator Machine

RICHI Cost-Effective 5 T/H Alfalfa Pellet Granulator Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $16800
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
380V/415V/440V/480V 50/60Hz
Dimension(L*W*H):
3500*1600*2180(mm)
Weight:
5500 kg
Marketing Type:
CE Certified Machines
Warranty of core components:
2 Year
Name:
Alfalfa Pellet Granulator
Capacity:
Customized 1-40 T/H For Different Model
Material:
Stainless Steel
Raw material:
Alfalfa Wheat Bran Hay Grass Straw
Color:
Customer Demand
Usage:
Making Alfalfa Pellets
Advantage:
Save Labor
Driven Way:
Electrical Driven
Conditioner Layer Number:
Customize
On-site Installation:
Provide

Quick Details

Max. Capacity:
5 T/H (Customized 1-40 T/H For Different Model)
Place of Origin:
Henan, China
Brand Name:
RICHI
Voltage:
380V/415V/440V/480V 50/60Hz
Dimension(L*W*H):
3500*1600*2180(mm)
Weight:
5500 kg
Marketing Type:
CE Certified Machines
Warranty of core components:
2 Year
Name:
Alfalfa Pellet Granulator
Capacity:
Customized 1-40 T/H For Different Model
Material:
Stainless Steel
Raw material:
Alfalfa Wheat Bran Hay Grass Straw
Color:
Customer Demand
Usage:
Making Alfalfa Pellets
Advantage:
Save Labor
Driven Way:
Electrical Driven
Conditioner Layer Number:
Customize
On-site Installation:
Provide
Machine Overviews

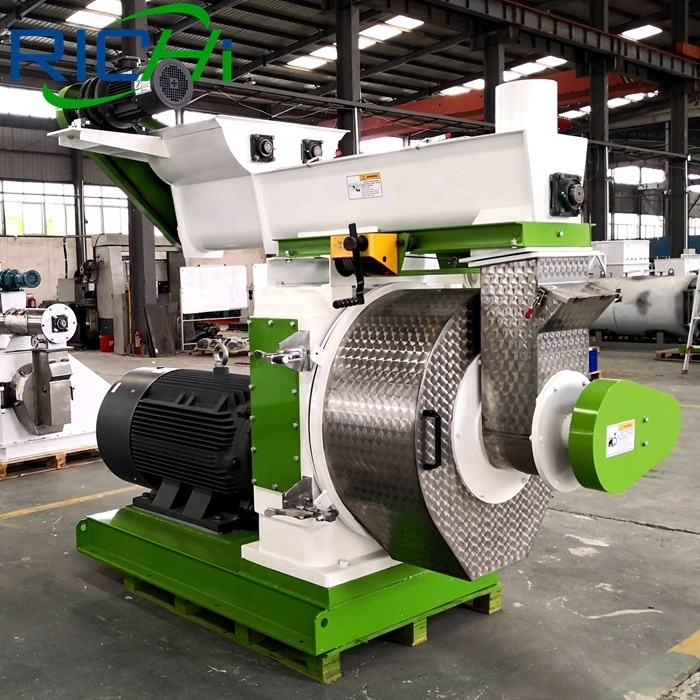

Overview Of RICHI Alfalfa Pellet Granulator :
Alfalfa, also known as Lucerne, is a perennial herb with 5-13 harvests per year. It is grown all over the world. By using the RICHI Alfalfa Pellet Granulator , alfalfa grass can be made into Pellets of various custom lengths and diameters for various purposes.

The RICHI Alfalfa Pellet Granulator has a special design for the raw material alfalfa and is suitable for large farms, specialized industrial animal feed pellet plants and biomass pellet plants etc.
Raw Materials To Pellets
What Are The Main Uses Of Alfalfa Pellets Made By RICHI Alfalfa Pellet Granulator ?
As Ruminant Feed:
Alfalfa is a high-quality pasture. In addition to feeding alfalfa directly to animals, people now choose to use RICHI Alfalfa Pellet Granulator to make alfalfa into pellets, which can reduce the indigestible cellulose in alfalfa, and relative to hay, its protein content should be 20%~25% higher. It is one of the indispensable feeds in ruminant animal farms such as horses, cattle and sheep.

At the same time, a more nutritious compound feed can be made by mixing alfalfa grass with grains, oils, and trace elements.( How to make compound feed? Click here to contact RICHI for guidance. )

As Biomass Fuel Pellets:
As a kind of agricultural waste, alfalfa grass is made into pellets by RICHI Alfalfa Pellet Granulator for biomass fuel. Compared to unprocessed fuels such as wood and straw, it has a high calorific value, burns with less smoke, and burns with less ash.

As Organic Fertilizer Granules:
Alfalfa grass pellets can be used for gardening, it will be a slow release natural organic fertilizer. It will provide plants with an excellent source of nitrogen, trace minerals and alcohols. Alfalfa grass and animal manure can also be composted and fermented together, and then made into organic fertilizer granules through the RICHI organic fertilizer granulator.

Other:
Alfalfa grass pellets can also be used as horse bedding material. It will absorb water to keep the stables dry, which can then be collected along with horse manure as organic fertilizer. Because of its natural aroma and water absorption, alfalfa can also be used as a good cat litter.

What Other Raw Materials Can The RICHI Alfalfa Pellet Granulator Process?
As a multifunctional pellet machine, RICHI Alfalfa Pellet Granulator can also make forestry wastes such as wood logs, branches, etc. into wood pellets, agricultural wastes such as straw, hay, rice husks, grass, hemp, etc. into pellets, the cow dung, chicken dung, sheep dung and other animal manures into organic fertilizer pellets.
Technical Parameters
Technical Parameters Of RICHI Alfalfa Pellet Granulator:
Model
Power (kW)
Capacity (T/H)
Main Motor
Anti-caking Feeder
Forced Feeder
Wood
Sawdust
Alfalfa, Grass, Straw...
Organic Fertilizer
MZLH-320
22
1.5
0.55
0.3-0.4
0.7-4
1-2
MZLH-350
37
1.5
0.55
0.5-0.7
1-6
3-4
MZLH-420
90
1.5
0.55
1-1.2
2-10
5-6
MZLH-520
132
2.2
0.75
2-2.5
3-15
7-8
MZLH-768
250
3
1
2.5-4
4-30
9-10
MZLH-858
280
3
1
3-4.5
5-40
10-12

Notes:

1. RICHI will customize the machine for you according to the type, state, and final pellet requirements of your raw materials.

2. By customizing the ring-molded hole diameter, the diameter of the final alfalfa pellets can be customized according to your needs. 2mm~12mm customizable.

3. RICHI can provide 1 T/H ~ 100 T/H customized turnkey alfalfa grass pellet production line engineering.

4. If you want to get more detailed parameters, please contact RICHI for catalogue.
Structural Features

RICHI always takes product quality as the first priority. Reasonable and mature design of horizontal ring die type pellet making machine ensures the effectiveness and stability of the pelletizing process.

Below are some special designs and features of the RICHI Alfalfa Pellet Granulator to make the production of Alfalfa pellets more convenient.
Adjustable Speed Anti-Arching Feeder :
The feeder is the first part where the raw material comes into contact with the RICHI Alfalfa Pellet Granulator . The feeder of the RICHI Alfalfa Pellet Granulator is equipped with a variable frequency motor, which allows the feeding speed to be controlled and prevents material jams. In addition, there is an anti-arching device specially designed for dry alfalfa powder inside the feeder, which can prevent lighter raw materials such as alfalfa powder from accumulating in the feeding port. Make the feeding smoother.
RICHI Alfalfa Pellet Granulator 's Pelletizing System:
· Stainless Steel:
The pelletizing chamber, ring die, and pressure roller made of stainless steel and alloy steel ensure that it can work stably for a long time in the humid environment during the alfalfa pelletizing process.

· Customizable and A djustable :
By changing the ring die with different hole diameters, pellets of different diameters can be produced. By adjusting the cutter adjustment handle, the length of the pellets can be controlled. Thus, you can get the diameter and length of the pellets you want.

· Efficient:
Equipped with a forced feeder designed for lighter raw materials such as alfalfa, it is located in front of the pelletizing chamber. In this way, the alfalfa powder can enter the granulation chamber more smoothly.

Equipped with a ring die lifter, it is more convenient to quickly replace the ring die, which will play a great role in the need to produce pellets of different diameters.
Using Siemens Motor as The Main Motor:
The combination of Siemens motor and gear reducer ensures long-term effective and stable operation of the Alfalfa Pellet Granulator . The gearbox does not require maintenance, only the mechanical oil needs to be changed regularly.
Automatic Emergency Stop Safety System:
The RICHI Alfalfa Pellet Granulator is equipped with a unique automatic safety control system. Once there are relatively hard impurities such as small iron blocks and small stones entering the pelletizing chamber with the raw materials, the machine will automatically stop in an emergency to protect the pressing roller and ring die.
Want A Compelet Alfalfa Pellet Line?
Why Do We Need a Complete Alfalfa Pellet Production Line?
Generally speaking, a RICHI Alfalfa Pellet Granulator can only handle alfalfa powder. If your alfalfa is a round or square bale with very high moisture content, we need to break it open and crush it first, then dry it to the right moisture before pelletizing. If you want to put alfalfa pellets on the market, you also need a fully automatic weighing and packing system to improve work efficiency. Fortunately, as a manufacturer with turnkey engineering capabilities. RICHI will manufacture and supply all the machines you need.

Here are some simple introductions of the main machines in alfalfa pellet line:
Alfalfa Bale Shredder :
Alfalfa Bale Shredder is used to break the alfalfa bale. It doesn't matter if it's round or square. It all works fine. It can also handle straw bales, grass bales, etc.
Alfalfa Crusher :
Alfalfa Crusher is used to crush alfalfa into alfalfa powder/meal of 3~5mm, this size will be beneficial to be made into pellets by RICHI Alfalfa Pellet Granulator .

Equipped with a rotating feeding grapple device, to ensure that the alfalfa can enter the crushing chamber smoothly.
Alfalfa Dryer :
The crushed alfalfa powder will still have a higher moisture content. Through a Rotary Drum Type Dryer, the alfalfa can be efficiently and quickly dried to the appropriate moisture, about 10%~15%.
RICHI Alfalfa Pellet Granulator :
As the core machine in the alfalfa pellet production line. The quality of the Alfalfa Pellet Granulator will directly affect the quality of the pellets. RICHI will test and adjust each machine before it leaves our factory to ensure that each machine is as perfect as possible when it is delivered to the customer.
Alfalfa Pellet Cooler:
To cooling the pellets to room temperature. The hardness of the pellets will become stronger. So as to obtain better hardness and strength. It can also improve transportation capacity and storage capacity. All stainless steel coolers are available.
Automatic Pellet Packaging Machine:
The pellets are packed into bag from 10 kg to 100 kg or 1 ton .Then use thermoplastic sealing machine to sew, these can make the pellets dry and water-proof . To extend the pellets storage time. The whole process can be done automatically, saving manpower.
Project Cases
10 T/H Alfalfa Straw Hemp Pellet Production Line In America:
This is an agricultural waste pellet production line produced by RICHI, and its raw materials are alfalfa grass, straw and hemp waste. Mainly used as cattle feed pellets. Customers sell most of the pellets in the market, and a small portion is used to feed dairy and beef cattle on their own farms.
3-4 T/H Alfalfa And Wheat Straw Pellet Production Line For South Africa:
This line was designed and manufactured for South African customers. Mainly used to make wheat straw pellets and alfalfa grass pellets for animal feed.
About RICHI
More About RICHI:
1. Headquartered in Zhengzhou of central China's Henan Province, RICHI Machinery is an industrial group mainly specialized in feed pellet machinery, and also covers some other strategic businesses such as biomass pellet machinery, organic fertilizer pellet machinery, parts and components, and so on.

2. RICHI owns a sound sales system and complete sales service network, and its products are sold all over the country and overseas in more than 132 countries and regions. At present, the international strategy is implemented stably, Richi has 21 overseas agents, as well as 1 overseas subsidiary in Uzbekistan.

3. In the future, RICHI will always strive to enhance its core technology and international competitiveness to become a sustainable machinery manufacturer.

Quality certifications:
With the deep commitment towards quality, we bring forth products having impeccable standards. We perform production process with superior quality material and electrically advanced components. Tested on several parameters, our product-range ensures longer service life and eficient performance. Company has passed the ISO2008 quality management system certification, CE certicication etc.
Which Countries Are RICHI's Machines Exported To?
RICHI's products has exported to more than 132 countries such as America, Canada, Mexico, England, Russia, Uzbekistan, South Africa, Kenya, Tanznia, Algeria, Morocco, Sudan, Saudi Arabia, Australia, Malaysia, Indonesia, Philippines etc.
FAQ

Here are some frequently asked questions that you might be interested in:


Q: Are you a trading company or a manufacturer?
We are a manufacturer, which has more than 27 years of experience in this industry.

Q: Where is your factory? Can I visit it?
Of course, we welcome customers to visit our factory. RICHI's Factory located in Kaifeng City, Henan Province, China. RICHI's Technology Research and Development Center in Zhengzhou City, Henan Province, China.

Q: I know little about the pellet machines and pellet production line, how can I choose the most suitable machine?
Just tell us your raw materials, your capacity (t/h), and the size of the final pellet product, and we will select the machine for you according to your specific situation.

Q: What brand is your motor and bearing?
We use German Siemens motors and SKF brand bearings.

Q: Can I use this machine to produce multiple-size pellets?
Yes, RICHI can customize the pellet size for you.

Q: Our worker can not know how to operate the pellet machine, what should I do?
Our engineers will guide workers on-site on how to install machines and build workshops. Then our engineers will test run the production line on-site and train your workers on how to operate it.

Q: Do you provide after-sales service?
Yes, we provide a two-year warranty and after-sales service, including technical support, equipment maintenance, and spare parts services etc.

Q: How do I get more details, catalogs and quotations about your machine?
Just please leave your message in the text box below, and send an inquiry to RICHI.
Or click the " Contact Supplier " or " Chat Now " button to contact us online.
