Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hong Yuan
-
Use:
-
pipe cleaning
-
Industry Used:
-
industrial pipe cleaning
-
Dimension(L*W*H):
-
3000*1500*2000
-
Machine type:
-
Water jet cleaner
-
Pump advantage:
-
Easy maintenance, best quality, and low noise
-
Connection type:
-
Flexible connection, direct-connected
-
Machine Advantage:
-
Auto alarm and protecting system
-
Crankshaft lubrication:
-
Splash and force feed Lubrication
-
Plunger material:
-
Solid ceramic plunger
-
Purification system Purification system:
-
Secondary filter
-
Plunger:
-
Alloy plunger with cooling system
-
Protecting cover:
-
Container full cover as require
-
Mounted type:
-
Skid mounted or as require
Quick Details
-
Cleaning Process:
-
Cold Water Cleaning
-
Power:
-
138kw
-
Max. Pressure:
-
1000 bar
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hong Yuan
-
Use:
-
pipe cleaning
-
Industry Used:
-
industrial pipe cleaning
-
Dimension(L*W*H):
-
3000*1500*2000
-
Machine type:
-
Water jet cleaner
-
Pump advantage:
-
Easy maintenance, best quality, and low noise
-
Connection type:
-
Flexible connection, direct-connected
-
Machine Advantage:
-
Auto alarm and protecting system
-
Crankshaft lubrication:
-
Splash and force feed Lubrication
-
Plunger material:
-
Solid ceramic plunger
-
Purification system Purification system:
-
Secondary filter
-
Plunger:
-
Alloy plunger with cooling system
-
Protecting cover:
-
Container full cover as require
-
Mounted type:
-
Skid mounted or as require

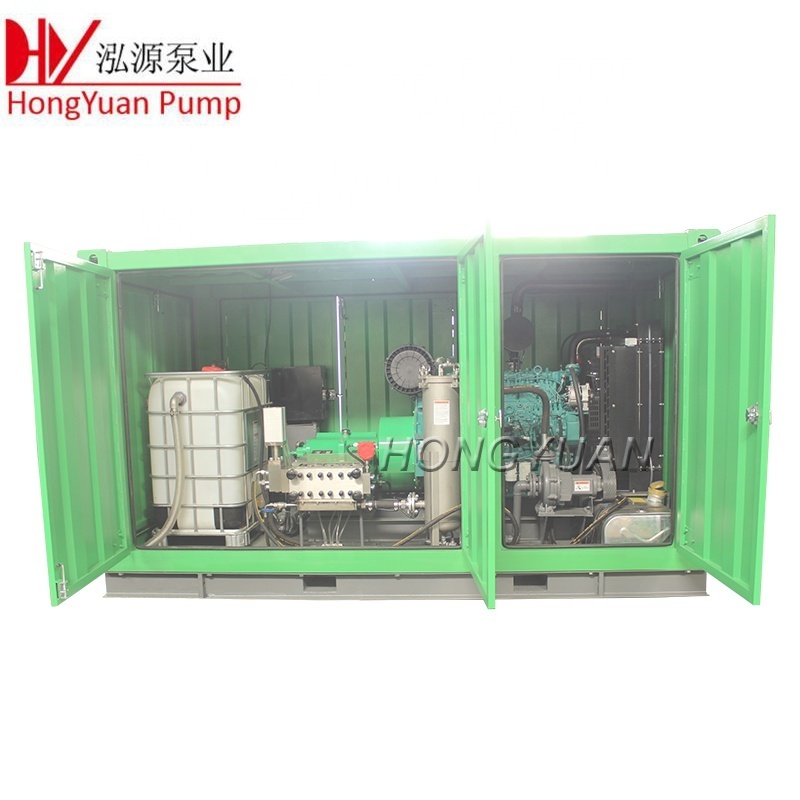

1000bar 67lpm industrial pipe cleaning high pressure water jet cleaner
Product description
Machine name:1000bar 67lpm industrial pipe cleaning high pressure water jet cleaner
Machine type:Water jet cleaner
Motor Speed: 1500rpm
Working pressure:1000 Bar
Flow rate:67 l pm
Medium: Fresh water,soda ash ,oil.ect
Certification: ISO9001:2008 , CE
Standard features
*High pressure pump ( 1000 bar 67L/M Model WHY13226 )
* 138 Kw diesel engine
* Control box ( Incl pump protecting system )
*Flexible coupling
* C oupling protecting cover for water jet cleaner
* Double filter tank (Stainless steel as require )
*Safety valve
*Pressure regulating valve( Manual control or pneumatic control )
*Pressure gauge ( Wika Germany as require )
*High pressure hose ( 4 0Kpsi Brand Parker made in USA )
* Skid mounted base
*High pressure water jetting gun ( dump type)
* Water inlet Booster pump and piping system
We are leader manufacturer of water jet cleaner, support by 26years water jet cleaner R&D team.
Optional features:
* Stainless steel w ater tank
* High pressure hose
* Water jetting tools
* Full cover machine protecting container
* Engine Insulation kit
* Water jet high pressure cleaner Noise reduction kit
* Other special requirement of Customer
Technical parameters:
| Model | Plunger | Flow | Required power (kw) | D | r.p.m | ||||
| Diameter | 55kw | 75kw | 90kw | 110kw | 132kw | n1 | n2 | ||
| (mm) | (l/min) | Operating pressure (bar) | |||||||
| WHY13216 | 16 | 26 | 1100 | 1500 | 1800 | 2200 | 2700 | 1500 | 470 |
| WHY13218 | 18 | 32 | 850 | 1150 | 1400 | 1700 | 2100 | 1500 | 470 |
| WHY13220 | 20 | 40 | 700 | 940 | 1120 | 1400 | 1700 | 1500 | 470 |
| WHY13222 | 22 | 48 | 570 | 780 | 930 | 1150 | 1400 | 1500 | 470 |
| WHY13224 | 24 | 57 | 480 | 650 | 780 | 960 | 1200 | 1500 | 470 |
| WHY13226 | 26 | 67 | 400 | 550 | 670 | 820 | 1020 | 1500 | 470 |
Product show:
