Quick Details
-
Dimension(L*W*H):
-
288X220X192 cm
-
Application:
-
Planer, Woodworking, cutting plate saw
-
Weight (KG):
-
1900 KG
-
Power (kW):
-
18.87
-
Max.Working Width(mm):
-
400mm
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Horizontal Band Saw machine
-
Machine size(mm):
-
2880*2200*1920
-
Machine weight:
-
1900kg
-
Total power:
-
18.87kw
-
Maximum machining width:
-
400mm
-
Saw blade to table distance:
-
3-200m
-
Conveyor belt width:
-
380mm
-
Saw wheel diameter:
-
711mm
-
Feed speed:
-
0-18m/min
-
Saw wheel lifting motor power::
-
0.37kw
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Joway
-
Voltage:
-
Custom
-
Dimension(L*W*H):
-
288X220X192 cm
-
Application:
-
Planer, Woodworking, cutting plate saw
-
Weight (KG):
-
1900 KG
-
Power (kW):
-
18.87
-
Max.Working Width(mm):
-
400mm
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Horizontal Band Saw machine
-
Machine size(mm):
-
2880*2200*1920
-
Machine weight:
-
1900kg
-
Total power:
-
18.87kw
-
Maximum machining width:
-
400mm
-
Saw blade to table distance:
-
3-200m
-
Conveyor belt width:
-
380mm
-
Saw wheel diameter:
-
711mm
-
Feed speed:
-
0-18m/min
-
Saw wheel lifting motor power::
-
0.37kw
Product Description
The
Horizontal Band Saw
Machine
1,Digitalize thickness display for quick and accurate saw blade position, ensure a simple and convenient operation.
2,Which achieves low noise, small torque fluctuations and long-term maintenance, also ensure the greater accuracy of sawing thickness.
3,Automatic hydraulic saw blade tensioning compensation system to ensure the best tension state of the working saw blade and extend the useful life of the saw blade.
4,Saw wheel is made by medium carbon steel, convex saw wheel avoids saw blade sliding off.
5,The PLC integrated control system, assures a simple and steady operation.
6,The conveyor belt is driven by a hydraulic or electric motor, which provides steady operation, constant and powerful driving power, so as to ensure the work piece is well shaped and smooth.
3,Automatic hydraulic saw blade tensioning compensation system to ensure the best tension state of the working saw blade and extend the useful life of the saw blade.
4,Saw wheel is made by medium carbon steel, convex saw wheel avoids saw blade sliding off.
5,The PLC integrated control system, assures a simple and steady operation.
6,The conveyor belt is driven by a hydraulic or electric motor, which provides steady operation, constant and powerful driving power, so as to ensure the work piece is well shaped and smooth.
Horizontal woodworking band saw cutting machine (can be customized according to needs)
Details Images

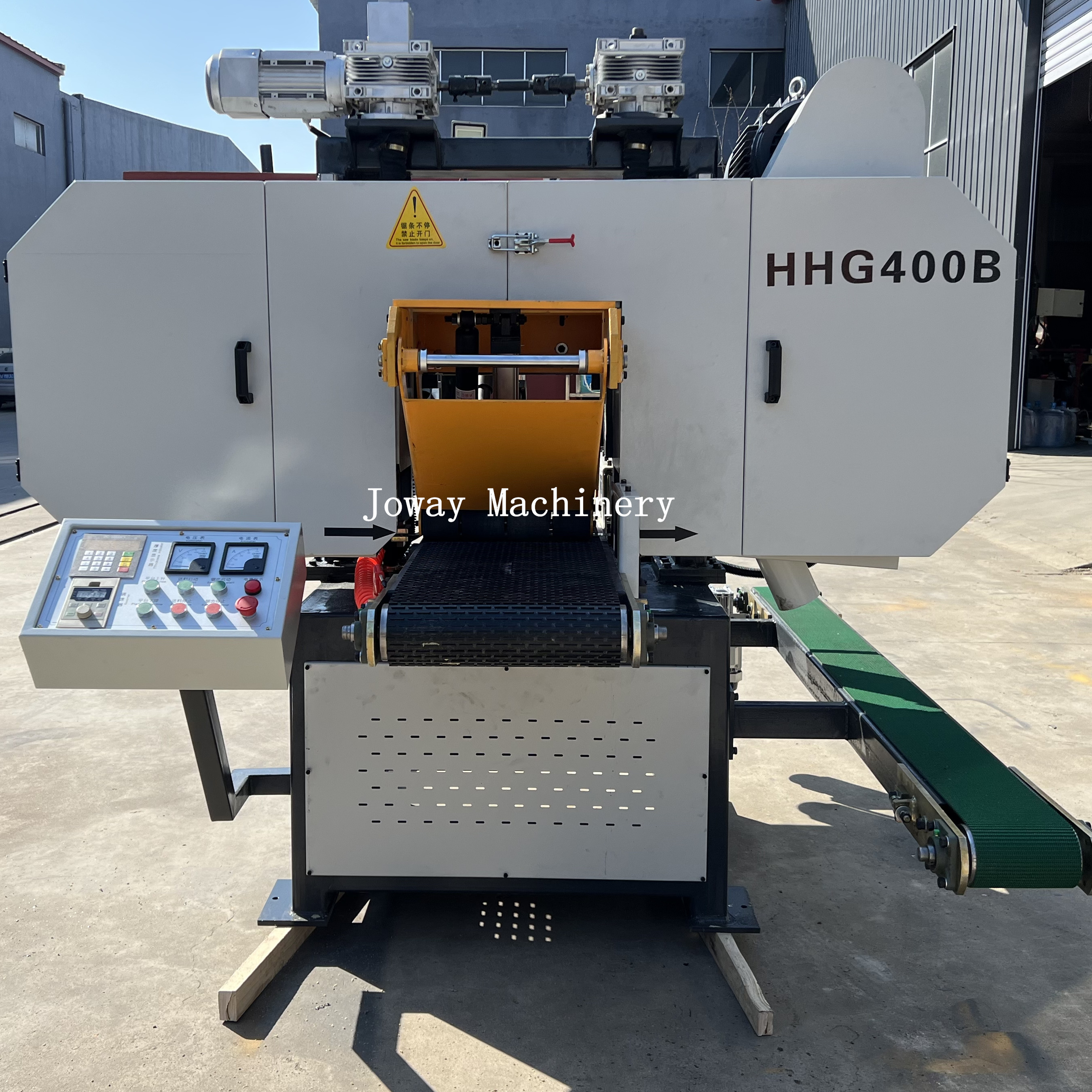

Precision cutting saw with display operation panel.
The lower horizontal band saw is cheaper and more practical.
Specification
|
Machine size(mm)
|
2880*1950*1850
|
2880*2200*1920
|
2880*2200*1920
|
|
Machine weight
|
1600kg
|
1900kg
|
1900kg
|
|
Total power
|
15.37kw
|
18.87kw
|
22.37kw
|
|
Maximum machining width
|
300mm
|
400mm
|
650mm
|
|
Saw blade to table distance
|
3-200m
|
3-200m
|
3-200m
|
|
Conveyor belt width
|
285mm
|
380mm
|
650mm
|
|
Saw wheel diameter
|
711mm
|
711mm
|
710mm
|
|
Feed speed
|
0-18m/min
|
0-18m/min
|
0-18m/min
|
|
Saw wheel lifting
motor power:
|
0.37kw
|
0.37kw
|
0.37kw
|
|
Saw wheel motor power:
|
15kw
|
18.5kw
|
22kw
|
|
Dust pipe diameter:
|
102mm*2
|
102mm*2
|
102mm*2
|
|
Saw blade size:
|
4572*27*0.9mm
|
4572*27*0.9mm
|
5172*40*0.9mm
|
|
Saw path:
|
1.2-2.2mm
|
1.2-2.2mm
|
1.2-2.2mm
|
Optional Parts
CNC band saw, capable of cutting round and square wood (supports customization)
Non CNC band saw, capable of cutting round and square wood (supports customization)
Band saw with bracket, capable of cutting round and square wood (supports customization)
Accessories
Grinding machine to enhance the sharpness of the saw blade.
Customizable according to needs.
Packing & Delivery
Grinding machine to enhance the sharpness of the saw blade. Customizable according to needs.
Recommend Products
FAQ
Q1: Are you a manufacturer or trading company?
A: We are a manufacturer .
A: We are a manufacturer .
We are dedicated to woodworking machinery manufacturing.
Q2: Where is the nearest airport and port from your factory?
A: The nearest port is Qingdao.
Q3: How can I get an accurate price?
Kindly send us the picture of furniture you want to produceand and the working size.
Or detailed machine functions you need, electricity voltage, Hz.
Q4: How is your after sales service?
Our sales are online for 24-hours. We can also supply overseas install service. Also we have more than 10 countries warehouse and department.
Q5: How long is the delivery time?
Generally 7 ~ 15 days.
Q6: Can I get a machine according to my own requirements?
Sure.We accept OEM and ODM.
Q2: Where is the nearest airport and port from your factory?
A: The nearest port is Qingdao.
Q3: How can I get an accurate price?
Kindly send us the picture of furniture you want to produceand and the working size.
Or detailed machine functions you need, electricity voltage, Hz.
Q4: How is your after sales service?
Our sales are online for 24-hours. We can also supply overseas install service. Also we have more than 10 countries warehouse and department.
Q5: How long is the delivery time?
Generally 7 ~ 15 days.
Q6: Can I get a machine according to my own requirements?
Sure.We accept OEM and ODM.
