Quick Details
-
Application:
-
Warehouse, Construction,pipe
-
Design Style:
-
Industrial
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
CYK
-
Type:
-
Other Heat Insulation Materials
-
Name:
-
aerogel insulation
-
Thickness:
-
3mm
-
Width:
-
1.5m
-
Length:
-
65m
-
Color:
-
White
-
Hydrophobicity:
-
99%
-
Thermal conductivity w/m.k:
-
<0.02
-
Bulk density:
-
160~180kg/m3
-
Compressive strength:
-
95~230Kpa
-
Combustion rating:
-
A1 grade
Quick Details
-
Warranty:
-
NONE
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
Others
-
Application:
-
Warehouse, Construction,pipe
-
Design Style:
-
Industrial
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
CYK
-
Type:
-
Other Heat Insulation Materials
-
Name:
-
aerogel insulation
-
Thickness:
-
3mm
-
Width:
-
1.5m
-
Length:
-
65m
-
Color:
-
White
-
Hydrophobicity:
-
99%
-
Thermal conductivity w/m.k:
-
<0.02
-
Bulk density:
-
160~180kg/m3
-
Compressive strength:
-
95~230Kpa
-
Combustion rating:
-
A1 grade

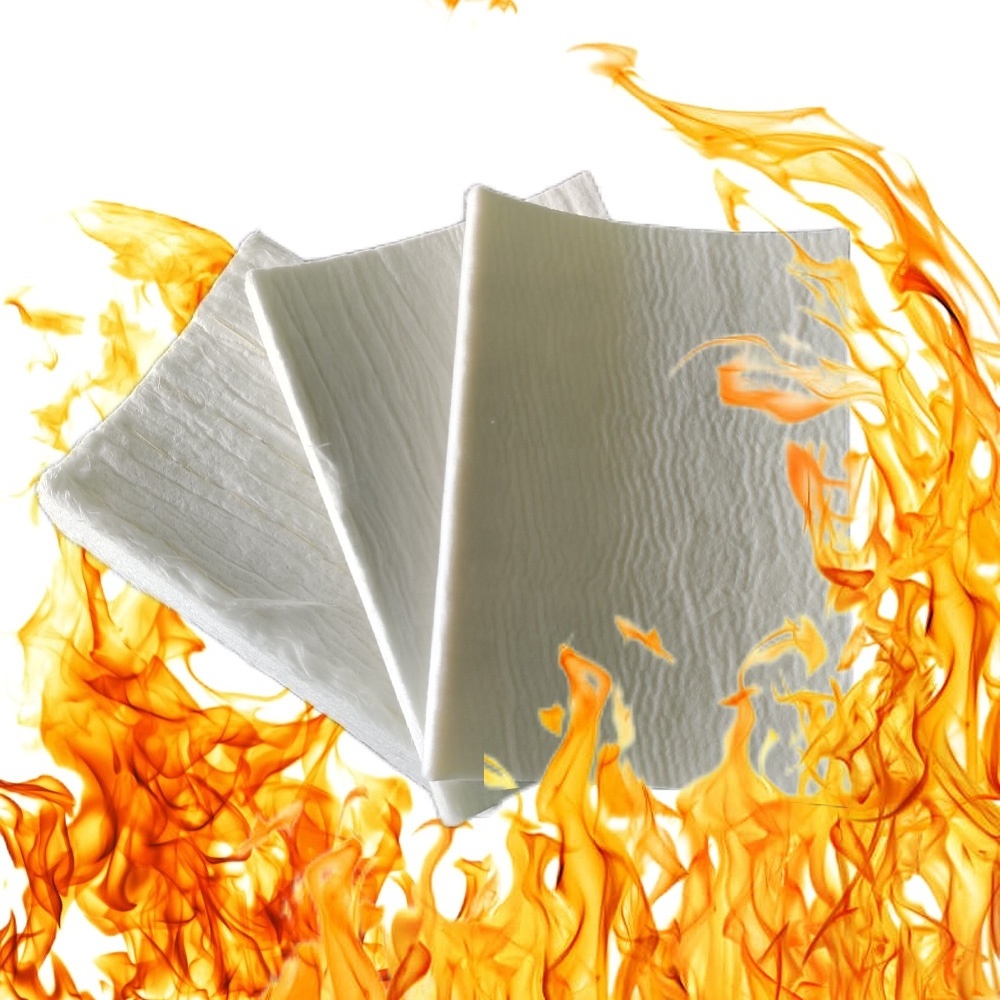

Aerogel Blanket
Aerogel Blanket is made by compounding Silica aerogel and fiberglass as the basal. It has the characteristics of softness, easy cutting, low density, inorganic fire resistance, overall hydrophobicity, and environmental protection. It can replace glass fiber products, asbestos insulation felt, silicate fiber products and other traditional flexibility that are not environmentally friendly and have poor insulation performance insulation Materials.
Aerogel Blanket is mainly used in industrial pipelines, storage tanks, industrial furnace bodies, power plants, rescue cabins,warship bulkheads, motor cars, directly buried pipelines, injection molding machines, detachable insulation sleeves, high-temperature steam pipelines for heavy oil mining, transportation , Household appliances, steel, non-ferrous metals, glass and other fields of thermal insulation.
Storage:
keep the packaging closed and store in a dry and ventilated place, away from other volatile chemical materials.
Parameter
|
Item
|
Unit
|
Value
|
|
Test method
|
|
|
Thickness
|
mm
|
3/6/10/20 or others
|
|
Vernier caliper
|
|
|
Color
|
--
|
White
|
|
Visually
|
|
|
Thermal Conductivity
|
W/(m•K)
|
25℃
|
≤0.018
|
GB/T 10294-2008
|
|
|
|
％
|
300℃
|
≤0.037
|
|
|
|
|
Kpa
|
500℃
|
≤0.076
|
|
|
|
Linear shrinkage
|
％
|
<1.0％
|
|
ASTM-C177
|
|
|
Compressive strength
|
％
|
31@10％
|
|
GB/T 13480-2014
|
|
|
Chloride ion content
|
％
|
≤0.0003
|
|
JC/T 618-2005
|
|
|
Vibration loss rate
|
％
|
0.4
|
|
GB/T 34336-2017
|
|
|
Porosity
|
％
|
>95
|
|
GB/T 1799-2018
|
|
|
Hydrophobicity
|
％
|
99
|
|
GB/T 10299-2011
|
|
|
Bulk density
|
kg/m3
|
160~180
|
|
GB/T 1799-2018
|
|
|
Maximum service temperature
|
℃
|
650/1100
|
|
GB/T 17430-1998
|
|
|
Combustion rating
|
A grade
|
A1 grade
|
|
GB 8624-2012
|
|
Application
Aerospace applications
Building wall, roof, floor insulation
Thermal insulation for high-speed trains, automobiles, power
batteries, aircraft and other transportation
Refrigerator, liquefied natural gas, cold chain vehicles and
other thermal insulation fields
Outdoor equipment such as space suits, warm clothes, thermal shoes and gloves
Details Images
Product packaging
1. who are we?
We are a specialized supplier of heat insulation and filtration materials ,based in Chongqing, China, start from 2010. We have our own plants to serve our customers both in China and overseas' market. We have established the strategic cooperation with some of customers and quikly grows in these years. Besides it, we work closely with our partner manufacturers of glass fiber, basalt fiber and carbon fiber products etc to serve well on our customers.
2. how can we guarantee quality?
We always adhere to the principle of "to provide the best quality as we can". We have the strict quality control policy on our products and on our partner's companies before the goods delivery. If there is some quliaty issue, we will closely check with our customers and always take our responsibilities if it happen even though the possiblility is very low.
3.what can you buy from us?
The heat insulation materials include vacuum insulation panel(or board), Vacuum glass ,Aerogel mat and others for construction and industrial applications. The filtration material and product include various kinds of glass fiber filtrate paper (F and Hepa grade, laminated ones), wood pulp filter paper (tea and coffee filter paper), various kinds of non-woven tissue (used for face mask and others) and PP, PET filter paper. The new material of fiber products include glass fiber, basalt fiber and carbon fiber materials such as roving, chop strand,fabric and mat.etc.
4. why should you buy from us not from other suppliers?
We are specialized in the heat insulation and filtration fields morn than 10 years and can provide the best solutions to our customers. We always respect our reputation and treat our customers sincerely.
5. what services can we provide?
Accepted Delivery Terms:EXW, FOB,CFR,CIF,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T, L/C, D/P,Western union,Paypal;
