Quick Details
-
Precision Rating:
-
P0-P6
-
Product name:
-
SNL 216
-
Material:
-
Chrome Steel GCR15
-
Housing material:
-
Stainless Steel AISI304
-
Application:
-
Automotive.tractor.construction Machinery.rolling Mill
-
Package:
-
Original Package
-
Sample:
-
Avaliable
-
Quality:
-
Long Life Cycle
-
Weight:
-
9.00 kg
Quick Details
-
Applicable Industries:
-
Manufacturing Plant, Machinery Repair Shops, Restaurant, Retail, Energy & Mining
-
Model Number:
-
SNL 216
-
Place of Origin:
-
Japan
-
Precision Rating:
-
P0-P6
-
Product name:
-
SNL 216
-
Material:
-
Chrome Steel GCR15
-
Housing material:
-
Stainless Steel AISI304
-
Application:
-
Automotive.tractor.construction Machinery.rolling Mill
-
Package:
-
Original Package
-
Sample:
-
Avaliable
-
Quality:
-
Long Life Cycle
-
Weight:
-
9.00 kg
Product Description

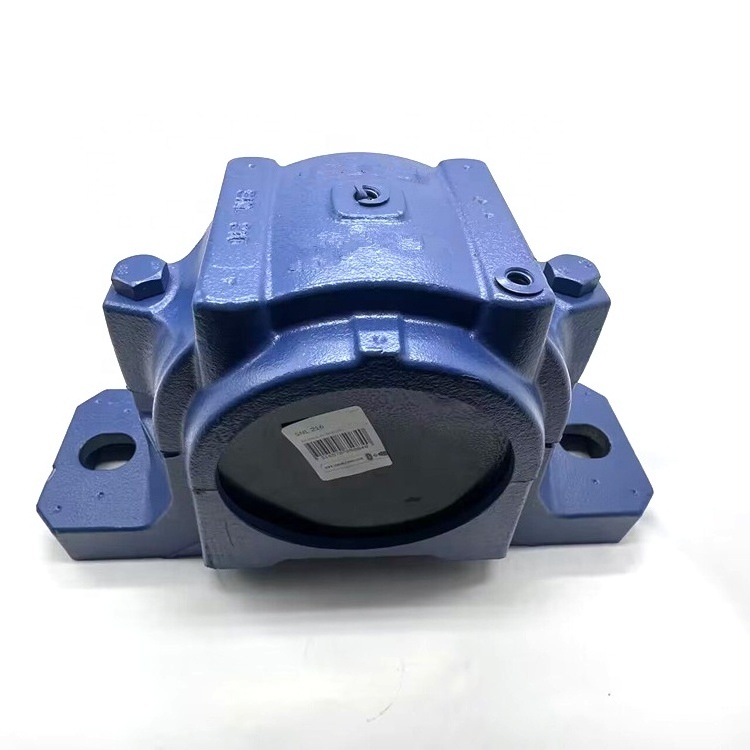

SNL 216 split plummer block housing SNL216 housing
|
Item number
|
SNL 216
|
|
|
|
Da
|
140 mm
|
Diameter of bearing seat
|
|
|
|
G7
|
Tolerance class of bearing seat diameter
|
|
|
Ca
|
58 mm
|
Width of bearing seat
|
|
|
H1
|
95 mm
|
Centre height of bearing seat
|
|
|
Db
|
108 mm
|
Bore diameter
|
|
|
A
|
120 mm
|
Overall width
|
|
|
A1
|
90 mm
|
Foot width
|
|
|
|
1/8-27 NPSF
|
Thread of relubrication holes
|
|
|
H
|
177 mm
|
Overall height
|
|
|
H2
|
32 mm
|
Foot height
|
|
|
L
|
315 mm
|
Overall length
|
|
|
J
|
260 mm
|
Distance between attachment bolts
|
|
|
N
|
28 mm
|
Length of attachment bolt hole
|
|
|
N1
|
22 mm
|
Width of attachment bolt hole
|
|
|
A3
|
92 mm
|
Inside width between seal grooves
|
|
|
A4
|
5 mm
|
Width of seal groove
|
|
|
A5
|
9 mm
|
Distance to seal groove back face
|
|
|
A6
|
13 mm
|
Width at bore diameter
|
|
|
Dc
|
116.5 mm
|
Diameter of seal groove
|
|
|
J6
|
288 mm
|
Distance between dowel pins
|
|
|
J7
|
33 mm
|
Axial offset of dowel pins
|
|
|
N4
|
max.8 mm
|
Diameter of dowel pins
|
|
Exhibition
Packing & Delivery
Packaging Details :
1 . Industrial tube packing + cartons + pallets
2 . Individual colorful or white box + carton + pallets
3 . As the clients ' requirement
Transportation :
1 . Less than 45 KGS, we will send by express. (Door to Door, Convenient)
2 . 45 - 200 KGS , we will send by air transport . (Fastest and safest, but expensive)
3 . More than 200 KGS, we will send by sea . ( Cheapest and common use )
1 . Industrial tube packing + cartons + pallets
2 . Individual colorful or white box + carton + pallets
3 . As the clients ' requirement
Transportation :
1 . Less than 45 KGS, we will send by express. (Door to Door, Convenient)
2 . 45 - 200 KGS , we will send by air transport . (Fastest and safest, but expensive)
3 . More than 200 KGS, we will send by sea . ( Cheapest and common use )
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipping.
Q:Why do we choose your company?
A:Our company has been a professional bearing manufacture for many years.we have our bearing factory, therefore we have advantage in quality control and price.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipping.
Q:Why do we choose your company?
A:Our company has been a professional bearing manufacture for many years.we have our bearing factory, therefore we have advantage in quality control and price.
