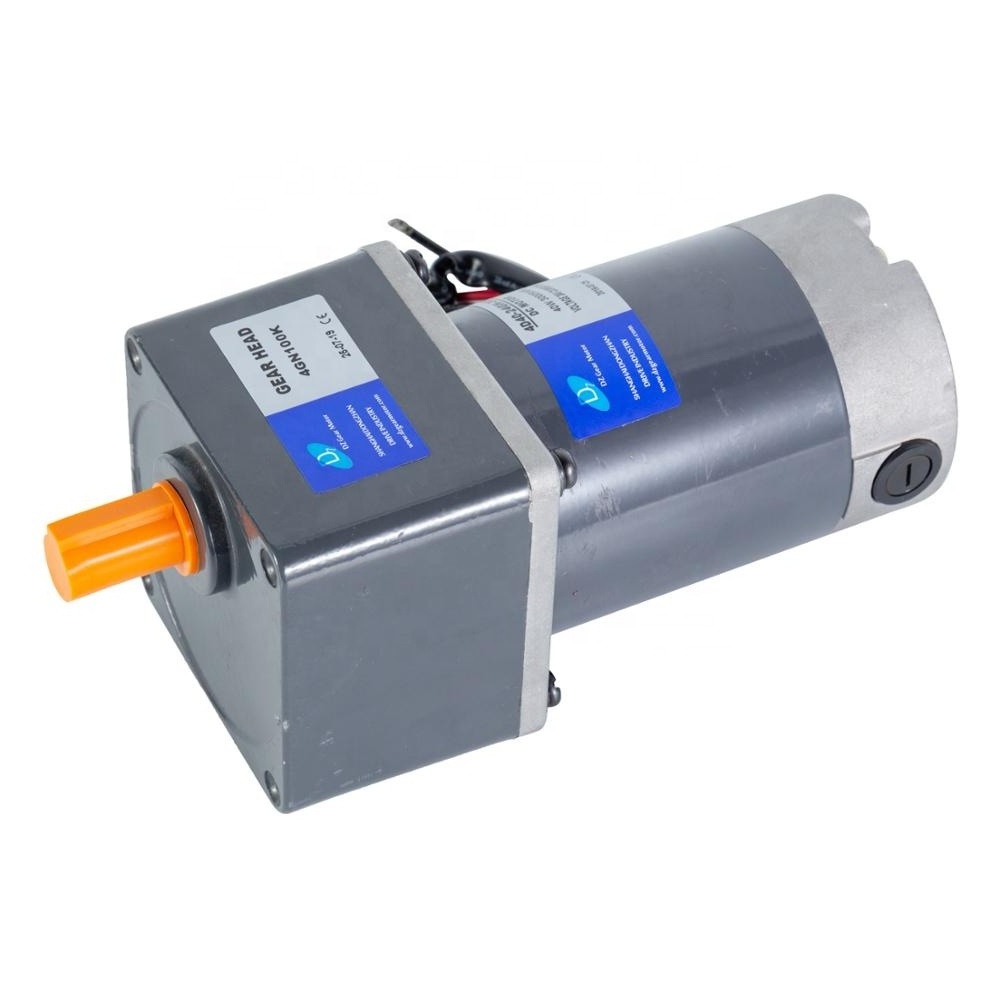

Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
DONG ZHAN
-
Model Number:
-
5D250-12RGU-30S+5GU9KT
-
Torque:
-
1.93N.m-40N.m
-
Product Name:
-
dc gear motor
-
Gearbox Dimension:
-
104mm*104mm
-
Output torque:
-
1.93N.m-40N.m
-
Motor Speed:
-
3000rpm
-
Gear ratio:
-
3:1-200:1
-
Insultaion class:
-
B class(130 degree)
-
Current:
-
0.9/1.5/3.5A
-
Using temprature:
-
-10-+40℃(No freeze)
-
Certification:
-
ce
Quick Details
-
Speed(RPM):
-
3000rpm
-
Continuous Current(A):
-
0.9/1.5/3.5A
-
Efficiency:
-
IE 2
-
Warranty:
-
1 year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
DONG ZHAN
-
Model Number:
-
5D250-12RGU-30S+5GU9KT
-
Torque:
-
1.93N.m-40N.m
-
Product Name:
-
dc gear motor
-
Gearbox Dimension:
-
104mm*104mm
-
Output torque:
-
1.93N.m-40N.m
-
Motor Speed:
-
3000rpm
-
Gear ratio:
-
3:1-200:1
-
Insultaion class:
-
B class(130 degree)
-
Current:
-
0.9/1.5/3.5A
-
Using temprature:
-
-10-+40℃(No freeze)
-
Certification:
-
ce
|
Product name |
|
|
Type |
Gear Motor |
|
Dimension |
60mm,70mm,80mm,90mm,104mm |
|
Power |
6W,10W,15W,25W,30W,40W,50W,60W,
|
|
Voltage |
12V 24V 48V 90V 220V |
|
Gear ratio |
3, 3.6, 5, 6, 7.5, 9, 12.5 15, 18, 25, 30, 36, 50, 60, 75, 90, 100, 150, 180,200 ~750 |
|
Shaft Type |
Parallel shaft |
|
Using humidity |
≤85%(Place without dew) |
|
Using temperature |
-10℃~+40℃(No freeze) |
|
Insulation class |
Class B (130℃) |
|
Temperature rise |
The temperature rise should be lower than 80℃ measured
|
|
Insulation voltage |
In the circumstance of normal temperature and humidity,
|
|
Insulation resistance |
In the circumastance of normal temperature and humidity,
|
|
Bearing Type |
Ball Bearing(Mark KB for Type GU square case) |
|
Gear type(Gearbox) |
GN:General Helical Gear; GU:Reinforced Helical Gear |
|
Shape of Motor Shaft |
A:Flat type; A1:Milling Keyway; GN:General Helical Gear;
|
Who we are ?
DZ Gear motor,a factory and started gear motor life and business since 2004 and will continuously concentrated in gear solution.
What we can do ?
Product range:
AC GEAR MOTOR:6W-3700W;
DC GEAR MOTOR:6W-250W;
WORM GEARBOX:NMRVO30-NMRV150;
Planetary gearbox:60mm-220mm(housing diameter)
