Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
VOIERN
-
Dimension(L*W*H):
-
142*60*75CM
-
Weight (KG):
-
100 KG
-

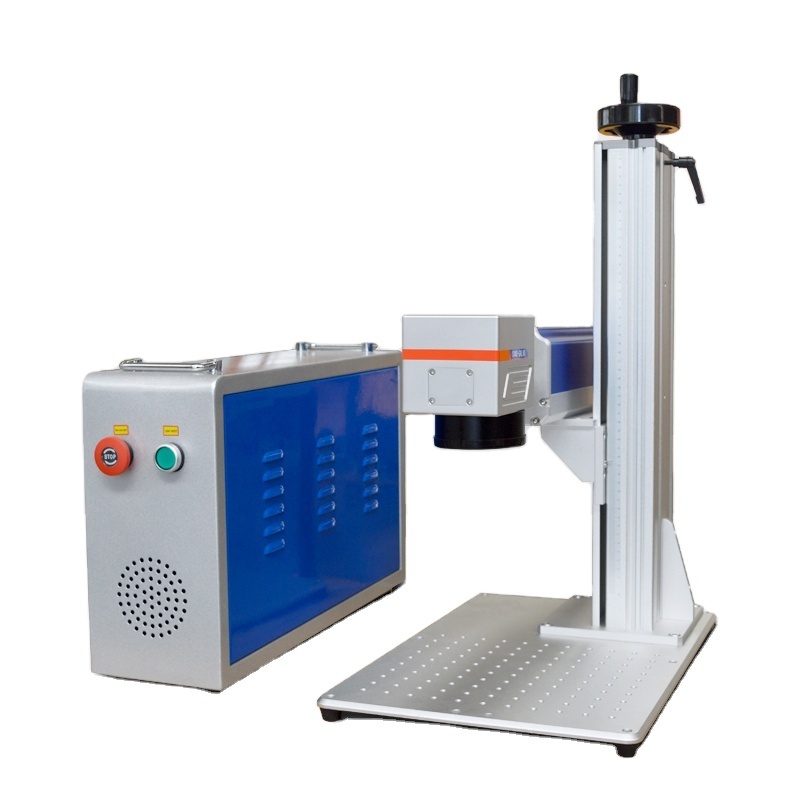

Product name:
-
Fiber Laser Marking Machine
-
Control system:
-
EZCAD
-
Function:
-
Cutting Engraving Non-metal Materials
-
Laser source:
-
Raycus Laser Source
Quick Details
-
Engraving Area:
-
100*100mm--300*300mm
-
Laser Type:
-
Fiber Laser
-
Engraving Speed:
-
1-3000mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
VOIERN
-
Dimension(L*W*H):
-
142*60*75CM
-
Weight (KG):
-
100 KG
-
Product name:
-
Fiber Laser Marking Machine
-
Control system:
-
EZCAD
-
Function:
-
Cutting Engraving Non-metal Materials
-
Laser source:
-
Raycus Laser Source
Product Description
We are the factory Who has been in the laser engraving machine, laser cutting machine and laser marketing machine field for 15 years.We have laser products of various working areas and models.Our laser engraving and cutting machine's work area include 300x200mm to 1500x3000mm,fiber laser marking machine's include 50*50mm to 800*800mm.If you need other machines or have any questions,
please contact u
s.
Detailed Images
The main parts of our products are high-quality industrial-grade accessories.
1-laser source
Laser source we use RAYCUS famous brand laser source, high stability, long life, no consumables.This is the key part of fiber laser marking machine.
2-Galvo head
High speed galvanometer scanning head adopts scanning laboratory technology, digital signal, high precision.
3-Ftheta lens
Smart f theta lens with working area 110*110,200 * 200,300 x 300(mm)
The fiber laser beam through its focus to the work piece surface, so the energy is enough.This optical accessories control marking area.Using high performance photoelectric digital mirror, excellent performance
The fiber laser beam through its focus to the work piece surface, so the energy is enough.This optical accessories control marking area.Using high performance photoelectric digital mirror, excellent performance
4-EZCAD control card .
Famous brand directional EZCAD control system, easy to operate.Humanized operation system is simple and convenient for laser power, frequency, marking speed modulation. Compatible vector graphics commonly used (AI, DXF, DWG, PLT etc.) compatible with commonly used graphics format (BMP, JPG, JIF... Etc..) bar code, two-dimensional code, serial number, line marking, rotary marking and other complex processing. Additional red light indicates, easy contraposition and simulated marking.
Optional Accessories
Lifting platform
The height can be adjusted according to the size of the carving items to achieve the best carving effect.
Standard rotation
Standard rotation
Used to carve round and irregular objects.
Related Products
Parameter table
|
Laser power
|
10w(20W,30W,50W optional)
|
|
Laser wavelength
|
1064nm
|
|
Laser type
|
Fiber Laser
|
|
Laser beam quality
|
M2:1.5
|
|
Repeat Frequency
|
20KHz-80KHz
|
|
Repeat Positioning Accuracy
|
0.005mm
|
|
Min linear width
|
0.01mm
|
|
Marking Depth
|
0.01-0.5mm
|
|
Standard Marking Area
|
110×110mm
|
|
Optional Marking Area
|
70×70mm/175×175mm
|
|
Rated Power Consumption
|
less 500W
|
|
Operating Voltage
|
220V/50Hz/15A
|
|
Graphic formate supported
|
PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO. DXF,etc
|
|
Working temperature
|
5-35 centigrade
|
|
Cooling
|
Air Cooling
|
Packing&Shipping
We serve the whole process from production to transportation.
Company Introduction
Voiern Laser Technology is located in Liaocheng High-tech Industrial Development Zone. Our company is mainly committed to research, development and production of laser engraving, cutting and marking machines in many fields. Covering R&D, production,sales, and customization of various high-end laser equipment.The products are mainly used in scientific research teaching andelectronic materials, LEDs, advertising materials, medical supplies, handicrafts, textiles,clothing, footwear, auto parts,furniture, and other industrial fields.
Our Services & Strength
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept .
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept .
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
