Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Brand Name:
-
DLX
-
Voltage:
-
380V
-
Power:
-
4KW
-
Dimension(L*W*H):
-
1500*600*1000
-
Weight:
-
400
-
Product name:
-
Portable Electric Powerful Small Steel Bar Threading Rolling Machine
-
Rebar Diameter:
-
16mm-40mm
-
Control:
-
Semi-automatic
-
Max Thread Length:
-
100mm
-
Thread Pitch:
-
1.75-4.0MM
-
Spindle speed:
-
1:19
-
Type:
-
Portable Electric Powerful Small Steel Bar Threading Rolling Machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Application:
-
Rebar, Construction works
-
Production Capacity:
-
100%, 100%
-
Marketing Type:
-
Hot Product 2023
-
Brand Name:
-
DLX
-
Voltage:
-
380V
-
Power:
-
4KW
-
Dimension(L*W*H):
-
1500*600*1000
-
Weight:
-
400
-
Product name:
-
Portable Electric Powerful Small Steel Bar Threading Rolling Machine
-
Rebar Diameter:
-
16mm-40mm
-
Control:
-
Semi-automatic
-
Max Thread Length:
-
100mm
-
Thread Pitch:
-
1.75-4.0MM
-
Spindle speed:
-
1:19
-
Type:
-
Portable Electric Powerful Small Steel Bar Threading Rolling Machine

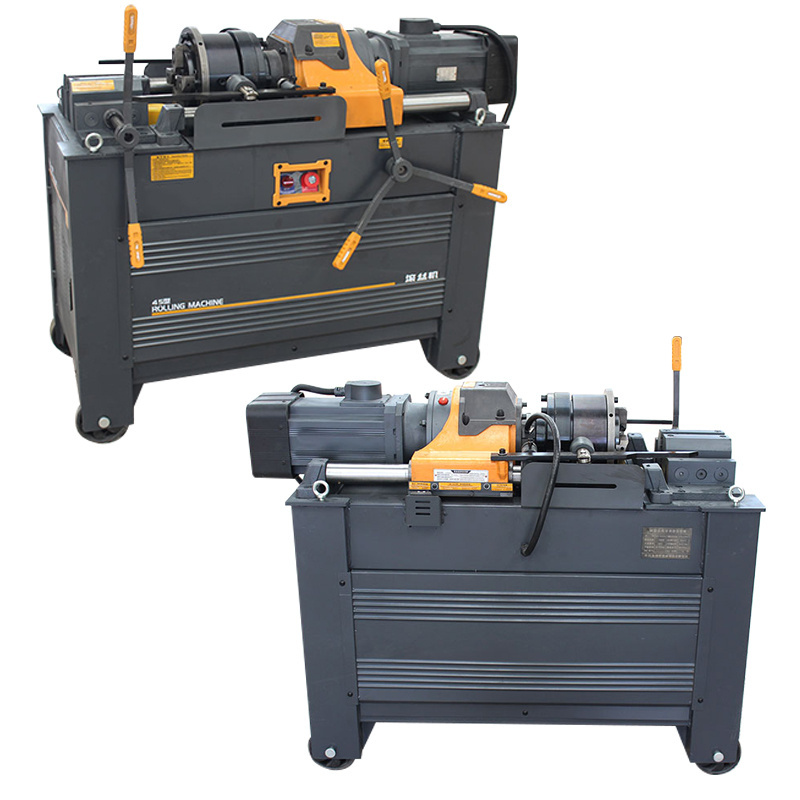

Portable Electric Powerful Small Steel Bar Threading Rolling Machine
Rebar thread rolling machine is mainly applied to peel rebar rib first, then roll parallel thread on rebar end. It is also applied to roll threads on round steel bar, anchor rod, or other equivalent materials.
| Model | HGS-40 | HGS-45 | HGS-50 | HGS-40 Pneumatic | HGS-50 Automatic |
| Rolling length | 0-80mm | 0-90mm | 0-100mm | 0-80mm | |
| Rebar diameter | Φ16-Φ32mm | Φ16-Φ40mm | Φ16-Φ32mm | ||
| Motor | 4.5KW | 5.5KW | 7.5KW | 7.5KW | |
| Weight | 310KG | 320KG | 330KG | 800KG | 880kg |
| Dimension | 1300*1150*750mm | 1300*1000*850mm | 1300*600*1000mm | 1400*1150*750mm | 1400*1150*750mm |
Product Features:
1. One-time clamping reinforced rib peeling rolling thread can be completed.
2. Both right-handed & left-handed threads could be processed with one machine head.
3. Processing speed, high degree of automation.
4. Convenient operation, service life is long.
5. The thread rolling round joint additional cost is low.
6. Environment-friendly, safe, no environment and weather restrictions.
Packing a nd Shipping
1. Packaging: 1)Wrapped by proctective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
