Quick Details
-
Row Distance(mm):
-
660 - 760 mm
-
Place of Origin:
-
China
-
Brand Name:
-
Chinese Top Brand
-
Dimension(L*W*H):
-
9735*5453*5380 mm
-
Weight:
-
25000 KG
-
Driving mode:
-
4wd/2wd
-
Bars Front and Rear:
-
Front 16 rear 12 pcs
-
Wheelbase:
-
4.32 m
-
Emission standard:
-
State III
Quick Details
-
Number of Rows:
-
6
-
Working Width(mm):
-
2280 mm
-
Tractor Power(HP):
-
395 - 400 HP
-
Row Distance(mm):
-
660 - 760 mm
-
Place of Origin:
-
China
-
Brand Name:
-
Chinese Top Brand
-
Dimension(L*W*H):
-
9735*5453*5380 mm
-
Weight:
-
25000 KG
-
Driving mode:
-
4wd/2wd
-
Bars Front and Rear:
-
Front 16 rear 12 pcs
-
Wheelbase:
-
4.32 m
-
Emission standard:
-
State III
Contact Ways:
Yvonne Liu
Sales Director
Whatsapp/Wechat/Mobile: +86-158 2104 0156
E-mail: yvonne@evangelchina.com
Evangel Industrial (Shanghai) Co., Ltd / Evangel International Machinery Ltd.
Add: Suite 2806, Super Ocean Finance Center
No.2067 West Yan'an Road, Shanghai 200336, China.
Products Description

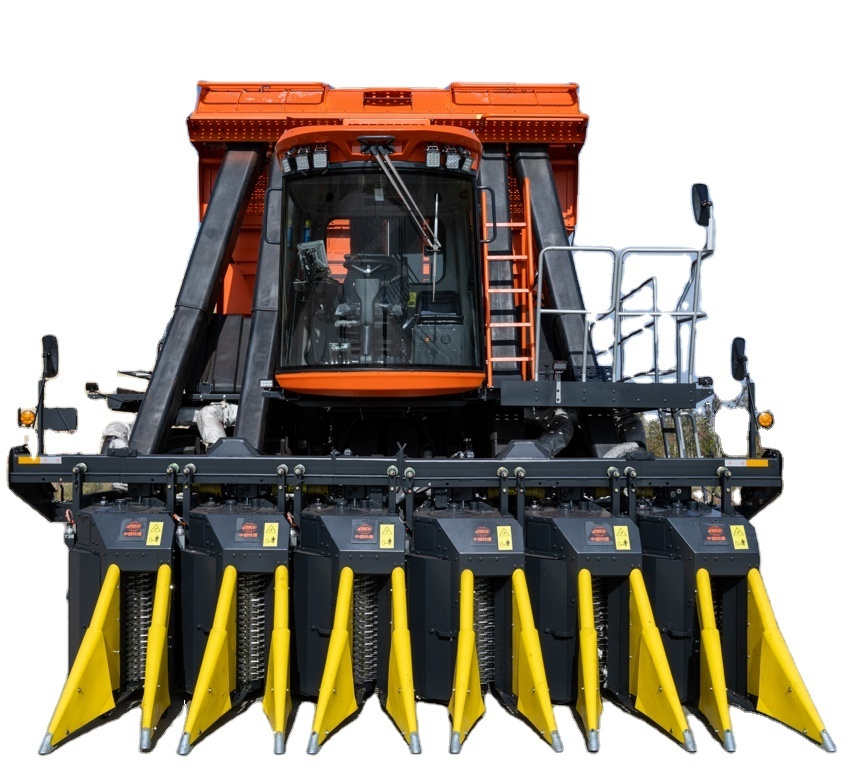

The 4MZ-6 high-end intelligent cotton pickeris mainly composed of picking head, cotton box, cab, chassis and power fan system. The parts of the cotton picker are selected from international and domestic famous brands. Combined with strong R & D technology and manufacturing strength, the reliable use of the products is ensured.
The engine of international famous brand has stable and reliable performance, large power reserve and strong power. It can switch between four-wheel drive and two-wheel drive at will, and adapt to various complex terrain and cotton field harvesting. It has 6 independent mining heads, adopts the structure of front 16 rows and back 12 rows of seat pipes, and each seat pipe is equipped with 20 ingots, commonly known as "big picking head", with high net recovery rate. Improve and innovate the adjustment mechanism of cotton picker, save time and effort, convenient and quick, and more accurate calibration adjustment. Equipped with high-power double fan, strong wind, good conveying effect, strong impurity removal ability.
4MZ-6 high-end intelligent cotton picker is suitable for cotton harvesting in "66 + 10cm" or "68 + 8cm" planting mode.
Specification
|
Number of rows
|
6 pcs
|
|
Bars Front and Rear
|
Front 16 rear 12 pcs
|
|
Bars Front and Rear
|
20 pcs
|
|
Rated power
|
298KW/400HP/2100rpm
|
|
Displacement
|
10.8L
|
|
Emission standard
|
State III
|
|
Driving mode
|
4WD/2WD
|
|
Maximum gradient (no load)
|
32%
|
|
Minimum turning radius
|
6.7m
|
|
Wheelbase
|
4.32m
|
|
Track width Front/Rear
|
2.28m/2.26m
|
|
Installation method Front/Rear
|
Two wheels in parallel/ Single wheel
|
|
Cotton box capacity
|
40 m3
|
|
Maximum unloading height
|
4.2 m
|
|
Road driving Dimension
|
9.79*5.5*4.31m
|
|
Cotton field harvesting Dimension
|
9.79*5.5*5.4m
|
|
Vehicle weight
|
25000kg
|
