Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Anytester
-
Dimension(L*W*H):
-
1640mm*680mm*1550mm
-
Weight:
-
200 KG
-
Power:
-
900
-
Model:
-
AT207B
-
Grooved drum:
-
O/D82mm Pitch: 2.5*147
-
Number of spindles:
-
3, 5, 6, 12,
-
Take-up package:
-
Cylindrical
-
Spindle gauge:
-
340mm
-
Number of doubling yarn:
-
2~3
-
Max. package diameter:
-
280mm
-
Max. length setting:
-
999999 meter, electronic setting
-
Drive mode:
-
DC Motor with adjustable speed
-
Power supply:
-
AC220V 50Hz, single-phase
Quick Details
-
Marketing Type:
-
New Product 2021
-
Application:
-
Doubling Twisting
-
Production Capacity:
-
1100m per min
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Anytester
-
Dimension(L*W*H):
-
1640mm*680mm*1550mm
-
Weight:
-
200 KG
-
Power:
-
900
-
Model:
-
AT207B
-
Grooved drum:
-
O/D82mm Pitch: 2.5*147
-
Number of spindles:
-
3, 5, 6, 12,
-
Take-up package:
-
Cylindrical
-
Spindle gauge:
-
340mm
-
Number of doubling yarn:
-
2~3
-
Max. package diameter:
-
280mm
-
Max. length setting:
-
999999 meter, electronic setting
-
Drive mode:
-
DC Motor with adjustable speed
-
Power supply:
-
AC220V 50Hz, single-phase
Product Description

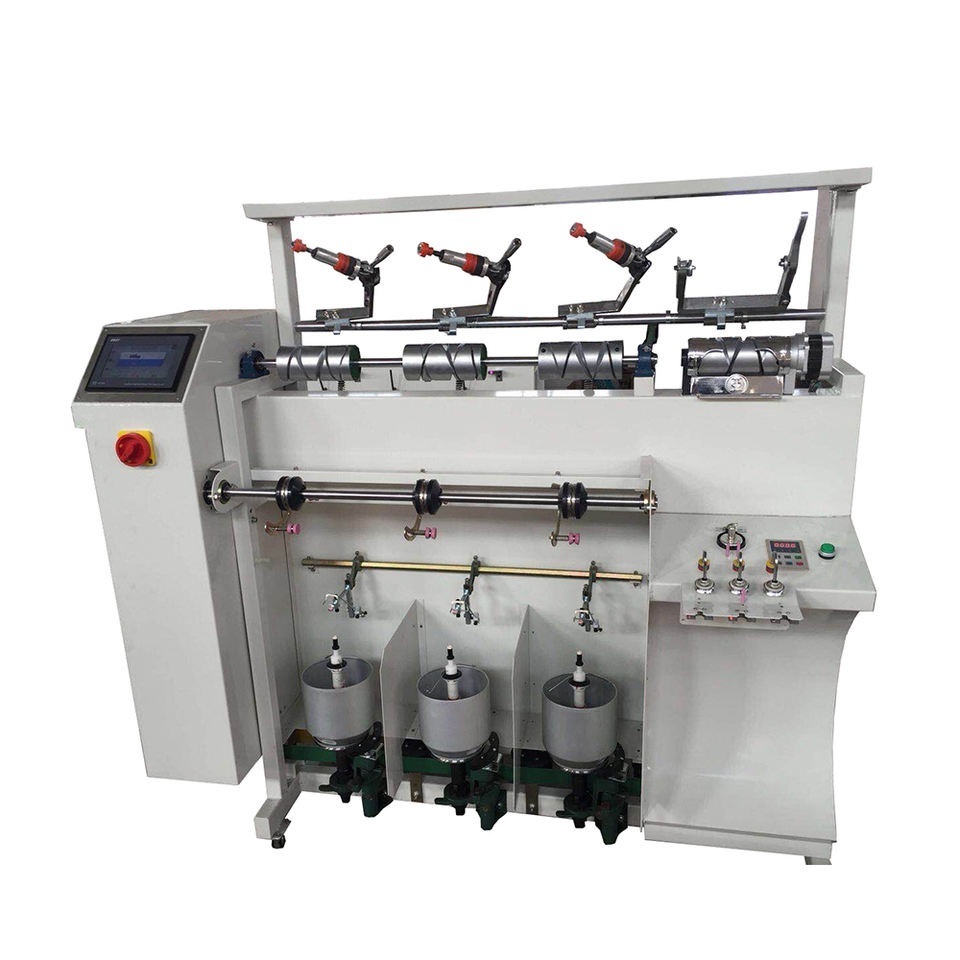

AT207B Lab Doubling Machine
is a two-for-one twisting machine. It doubles the twisting speed than the traditional twisting device.
Feature
AT207B Cotton Wool Fiber Yarn Doubling Two for One Twisting Machine Laboratory Doubling Machine
1. Independent controlling of each position;
2. Convenient and easy to operate;
Specification
|
Model
|
AT207B
|
|
Number of spindles
|
3, 5, 6, 12,
|
|
Grooved drum
|
O/D82mm
Pitch: 2.5×147
|
|
Take-up package
|
Cylindrical
|
|
Spindle gauge
|
340mm
|
|
Number of doubling yarn
|
2~3
|
|
Max. package diameter
|
¢280mm
|
|
Max. length setting
|
999999 meter, electronic setting
|
|
Drive mode
|
DC Motor with adjustable speed
|
|
Max. winding speed
|
1100meter/minute
|
|
Yarn-guiding traverse
|
Standard 147mm
|
|
Power supply
|
AC220V 50Hz, single-phase
|
