Quick Details
-
Product name:
-

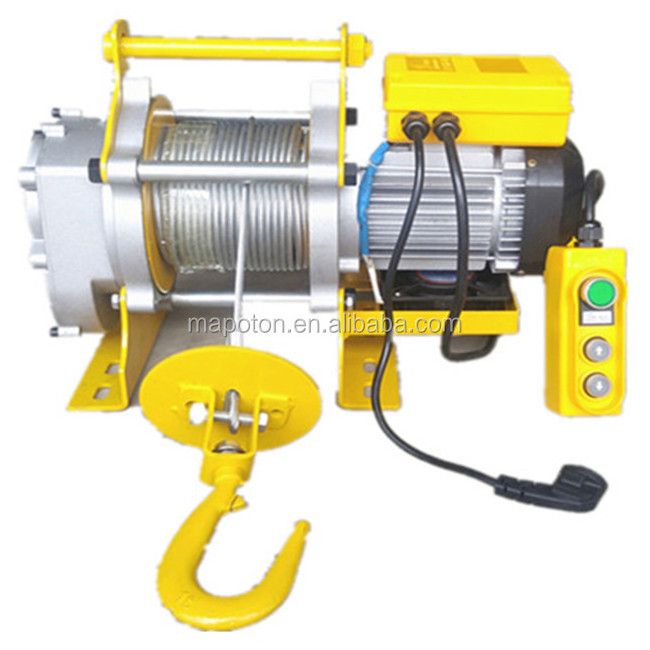

China famous brand motor lifting mini electric winch limit switch
-
Voltage:
-
220v or Customed
-
Power supply:
-
1.85kw 2.3kw
-
Length of wire rope:
-
25m for Standard
-
Clutch:
-
Without Clutch
-
Usage Way::
-
Vertical Lifting/Horizontal Lifting
-
Diameter of Steel Wire Rope:
-
6.0mm Of Galvanized Airline Anti-Rotation Steel Wire Rope
-
The Key words:
-
building equipment small lift winch
-
The type:
-
motor lifting mini winch
Quick Details
-
Power Source:
-
Electric
-
Application:
-
CRANES
-
Capacity:
-
2000lbs
-
Product name:
-
China famous brand motor lifting mini electric winch limit switch
-
Voltage:
-
220v or Customed
-
Power supply:
-
1.85kw 2.3kw
-
Length of wire rope:
-
25m for Standard
-
Clutch:
-
Without Clutch
-
Usage Way::
-
Vertical Lifting/Horizontal Lifting
-
Diameter of Steel Wire Rope:
-
6.0mm Of Galvanized Airline Anti-Rotation Steel Wire Rope
-
The Key words:
-
building equipment small lift winch
-
The type:
-
motor lifting mini winch
Product Description
Product Details: China famous brand motor lifting mini electric winch limit switch
1.The gearbox case of the winch was made of high-strength aluminum alloy materials with light weight and high precision.
2. The high speed winch increased the module gear which could reduce the noise of the gearbox ,higher safety coefficient and longer use time.
3.The mini electric winch equiped with afterburner system,specific motor,case fan,the rotary steel wire rope,Rotating hook and so on.The configuration is very high.
4.The construction winch looks delicate appearance and high grade.
|
China famous brand motor lifting mini electric winch limit switch
|
|
|
|
|
||||
|
Items\Types
|
DTS-200-100-A
|
DTS-300-100-A
|
DTS-400-100-A
|
DTS-500-100-A
|
||||
|
Loading Weight(kg)
|
single rope:200kg
double rope:400kg
|
single rope:300kg
double rope:600kg
|
single rope:400kg
double rope:800kg
|
single rope:500kg
double rope:1000kg
|
||||
|
The length of steel wire rope(m)
|
25m
|
25m
|
25m
|
25m
|
||||
|
Lifting Speed(m/min)
|
10m-20m
|
10m-20m
|
6m-12m
|
6-12m
|
||||
|
Motor Capacity(kw)
|
1.85kw
|
2.3kw
|
1.85kw
|
2.3kw
|
||||
|
Supply Voltage(v)
|
220v
|
220v
|
220v
|
220v
|
||||
|
Rope Diameter(mm)
|
5.0mm
|
6.0mm
|
6.0mm
|
7.0mm
|
||||
|
Total Weight(kg)
|
33kg
|
38kg
|
35kg
|
40kg
|
||||
Detailed Images
China famous brand winch steel wire rope:
The steel wire rope adopts type of 19*7 galvanized airline anti-rotation steel wire rope to guarantee the goods not to rotate during lifting .
The gearbox case of the hot sale winch:
The gearbox case of the easy to use winch was made of high-strength aluminum alloy materials with light weight and high precision.The hoist adopts the 220v big power alongside magneto motor , Which can guarantee the sensitive brake and safe use .
The module gear case:
The motor lifting winch increased the module gear which could reduce the noise of the gearbox ,higher safety coefficient and longer use time.
The power-stress button:
The power-controlled system has an innovation that it adds the power- stress button system to avoid the situation when the main engine doesn't work when the voltage is unstable or lower during the goods is lifted in mid- air.
The rotation hook:
The high-grade large -opening rotation hook ,the stress bearing is installed with the rotation bearing to guarantee the bearing can be rotated to avoid the rope wiching
The high-tension cooling fan :
It is designed and installed along the engine side to make it prefectly work.and it can meet the need of long-time working in special working please.
|
Product Name
|
China famous brand motor lifting mini electric winch limit switch
|
|
|
||
|
Voltage
|
110v-460v Customized
|
|
|
||
|
Power
|
2.3kw
|
|
|
||
|
Loading Weight
|
400kg-500kg
|
|
|
||
|
Diameter of Steel Wire Rope
|
6.0mm Of Galvanized Airline Anti-Rotation
|
|
|
||
|
Lifting Height
|
25m
|
|
|
||
|
Lifting Speed
|
20m/min
|
|
|
||
|
Color
|
Yellow Or Customized
|
|
|
||
|
Clutch
|
Without Clutch
|
|
|
||
OUR FACTORY
PK
OTHER FACTORY ABOUT THE PRODUCT DETAILS
About the below pictures, each line, the left picture belongs to other factory; the right picture belongs to our factory!
About the engine cover:
Our factory:
The material of the engine cover adopts the national standard JIS H5302-2006 aluminum alloy ADC12, based on the acceptance standard of GB/T10851-1989 casting aluminum alloy pinhole.
Other factory:
The material of the engine cover mostly adopts the recycling mixed aluminum.
About the back cover of the engine:
Our factory:
We adopts the ADC12 material to make the engine much more effective.
Other factory:
They adopt the inferior material and rough machine.
About the gearbox case of the engine:
Our factory:
The gearbox case becomes much more bigger and thicken and has a long lifespan more than 3 years. The bearings on the gearbox case also become more bigger. What's more, our factory design 2 oil-filling holes on the one side of the gearbox case so that it is convenient to fill oil and extend the lifespan of the gear usage.
Other factory: It is the old-style gearbox case which has the features of small volume, thinner case and short lifespan so that it can easily to get broken. And there is no oil-filling hole on the gearbox case, so it is not convenient to fill oil.
Other factory: It is the old-style gearbox case which has the features of small volume, thinner case and short lifespan so that it can easily to get broken. And there is no oil-filling hole on the gearbox case, so it is not convenient to fill oil.
.
About the rotor of the engine:
Our factory:
The engine rotors increase 10% in diameter and length and apply with the 600-grade sheet steel which can decrease the electricity loss so that the engine is powerful in the continuous work.
Other factory:
The engine rotors are thinner and shorter and apply with the ordinary steel plate and iron plate as the raw material which can increase the electrical loss and make the engine produce heat particularly fast so that the engine has no strength in work after a short while.
About the lifting hook of the hoist:
Our factory:
Ours is equipped with the 2T big hook and can rotate 360 degrees. The bigger the hook, the easier to lift the goods.
Other factory:
It is the non-standard small type 0.5T hook which is not equipped with rotation function which is not easy to lift the goods. Some customers even take off it and change into the big hook to make it easy to use.
