Quick Details
-
Power:
-
up to the heating method
-
Dimension(L*W*H):
-
according to the equipment
-
Weight:
-
according to the equipment
-
Core Components:
-
Beer Tank
-
Material:
-
stainless steel 304/316
-
Capacity range:
-
100L to 10000L per patch
-
Heating source:
-
Electric, gas fired or steam
-
Fermening type:
-
ale or lager or both
-
false bottom:
-
removable
-
Insulation:
-
polyurethane/rockwool 100mm
-
fermenter bottom cone:
-
60-72 degree
-
inside polishing:
-
mirror polishing
-
welding:
-
100% argon arc welding
-
Control system:
-
mash temperature/time, agitator, pump speed...
-
Certification:
-
CE, ISO9001, PED
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RAINBOW
-
Voltage:
-
220v or 380v/can be customized
-
Power:
-
up to the heating method
-
Dimension(L*W*H):
-
according to the equipment
-
Weight:
-
according to the equipment
-
Core Components:
-
Beer Tank
-
Material:
-
stainless steel 304/316
-
Capacity range:
-
100L to 10000L per patch
-
Heating source:
-
Electric, gas fired or steam
-
Fermening type:
-
ale or lager or both
-
false bottom:
-
removable
-
Insulation:
-
polyurethane/rockwool 100mm
-
fermenter bottom cone:
-
60-72 degree
-
inside polishing:
-
mirror polishing
-
welding:
-
100% argon arc welding
-
Control system:
-
mash temperature/time, agitator, pump speed...
-
Certification:
-
CE, ISO9001, PED
COMPANY PROFILE:
We, Jinan Rainbow Machinery Co., Ltd are a professional manufacturer and leading supplier of good quality beer brewing system, ranging from 100L-20000L per patch (used for home, pub/hotel, factory, etc.) at a very competitive price, with product design, production, sales, and installation support.

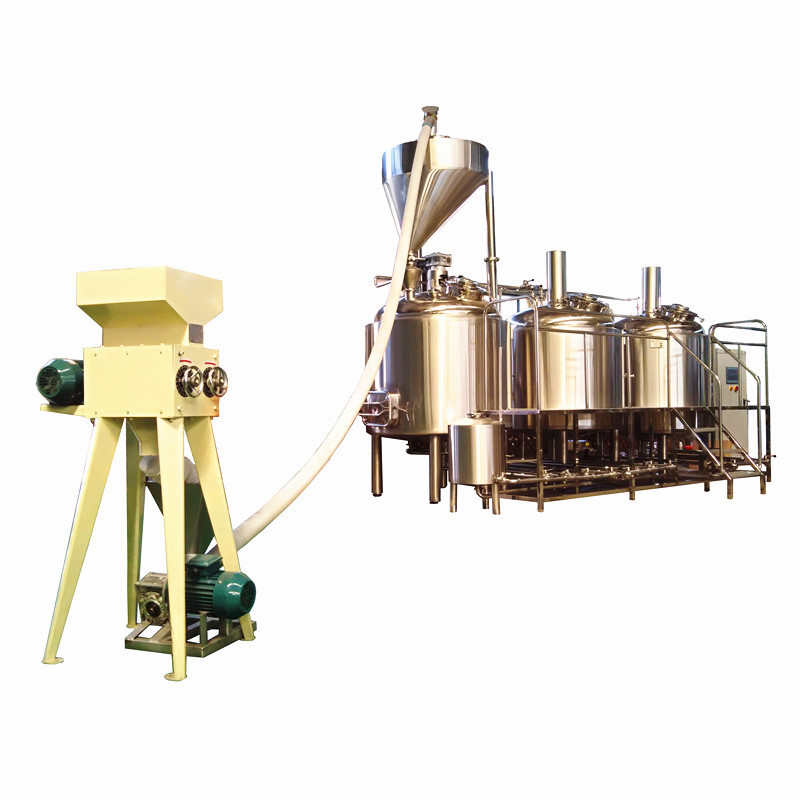

Craft beer brewing equipment
MAIN CONFIGURATIONS :
This brewhouse system includes 3 tanks (mash tun/ lautering tun , brew kettle/whirlpool, hot liquor tank) , please check the details in the following chart.
Optional
:
1-
mash/brew kettle, lauter tun/whirlpool
2- mash/brew kettle, lauter tun, whirlpool
3- mash tun, lauter tun, brew kettle/whirlpool
4- mash tun, lauter tun, brew kettle, whirlpool
This is the 1000L brewing system configuration for your reference.
|
Items |
Equipment |
S pecification |
Quantity ( PCS) |
|
M alt miller |
Malt miller |
300kg/h |
1 |
|
Br e w house |
Mash tun/lautering tun |
1000L |
1 |
|
Brew kettle/whirlpool |
1000L |
1 |
|
|
H ot liquor tank |
1000-20 00L |
1 |
|
|
Plate heat exchanger |
10 m 2 |
1 |
|
|
Pump |
3 m ³ /h |
2 |
|
|
Ox
y
genator
|
|
1 |
|
|
Working platform |
1 |
||
|
Fermentation |
Fermenter |
1000L |
6 |
|
Y east adding tank |
30L |
1 |
|
|
Cooling unit |
G l y c o l water tank |
150 0 L |
1 |
|
C o oling compressor |
5hp |
2 |
|
|
W at er pump |
3 m ³ /h |
1 |
|
|
C I P unit |
A l k a l i tank |
100L |
1 |
|
S t erilization tank |
100L |
1 |
|
|
Pump |
3 m ³ /h |
1 |
|
|
Control unit |
Siemens PLC controlling system |
1 |
|
|
Filte r system |
Kieselguhr filter machine |
500L/H |
1 |
|
Bright beer tank |
1000L |
1 |
|
|
S p a r e parts |
All necessary spare parts such as pipes, valves, gauges and clamps…etc. |
||
Heating source: electricity, gas fired or steam heating
Material: stainless steel 304/316 or copper
Warranty: 36 months
Main specifications of brewhouse and fermentation:
Brewhouse system:
-Top manway with glass
-side manway for spent grain
- insulation: polyurethane/rockwool 100mm;
- inside CIP washing ball
- agitator
- removable false bottom
- sparging arm.. ....
Fermentation system:
1) - I nner wall stainless steel 304, 3mm;
- surface wall stainless steel 304, 2mm
2) t op mounted manway
3) Insulation: polyurethane 100mm
4) Glycol cooling jackets on both cylinder and cone
5) - Inside 360 degree rotating CIP washing ball;
- CIP arm
- safety&vacuum valve on top
- sample valve
- rotating racking arm
-carbonation stone ( optional )
- dry hopping port
6) -100% TIG welding with pure argon gas shield
- Interior Finish:Mirror polishing to 0.4~0.6 μm without dead corner
-Testing pressure: 3 bar
-working pressure: 1.5-2 bar
For Your Information:
1. We have the capacity of 100L, 200L, 300L, 500L, 1000L, 2000L, 3000L, 5000L, 8000L...( 1bbl, 2bbl, 5bbl, 10bbl....) per patch for your reference.
It can be customized, such as the capacity, material, voltage(like 380v, 50Hz, 3phases), heating source, etc.
2. The brewer can also brew draft beer, pale beer, brown beer, stout beer etc,
to meet different taste of customers.
OPTIONAL:
Beer bottling line: bottle washing machine, filling machine, capping machine,
pasteurization tank, labelling machine.
Kegs washer and filler.
Beer kegs(10L,20L,30L,50L...).
Steam boiler.
