•Compressor Optional:Original German Bitzer Brand
•Condenser:Air cooled or Water cooled(for higher ambient temperature)
•Frame:can be stell shell with spray painting or open type on stell frame
•Voltage:
220V/1PH/50HZ or 60HZ 380V-415V/3Ph/50HZ or 60HZ 220V~415V/3PH/60HZ
•Refrigerant:R22/R404a/R410a •Capacity:Singe compressor 2HP-50HP
- Product Details
- {{item.text}}
Quick Details
-
Cooling Capacity:
-
25ton
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OnlyKem
-
Voltage:
-
Customized
-
Power:
-
Depends
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
60 KG
-
Service Door:
-
36 x 81" Metal Plugin Service Door
-
Chiller Room Door type:
-
Hinged / Sliding / Swing / Lifting Doors
-
Surface Material:
-
Galvanized Steel/Stainless Steel
-
PU Core Density:
-
40+-/2kg/M2
-
Floor of Chiller Room:
-
PU Penal/Concrete with XPS / Checker Plate
-
Refrigeration System:
-
New Generation of Smart Cooling System
-
Condenser Type:
-
Fnv / Fnh (Air Cooled, Water Cooled, Evaporative)
-
Condensing Unit:
-
Open / Box Type
-
Insulation Panel:
-
PIR Panel/PUR Panel
-
Uses:
-
Store food, fruit, beverages, beer, meat, fish, etc
Quick Details
-
Temperature:
-
-45℃ ~ +20℃
-
Compressor brand:
-
TECUMSEH, Copeland, Bitzer, Emerson
-
Panel Thickness:
-
100mm, 200mm, 120mm, 75mm, 50mm, 150mm
-
Cooling Capacity:
-
25ton
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OnlyKem
-
Voltage:
-
Customized
-
Power:
-
Depends
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
60 KG
-
Service Door:
-
36 x 81" Metal Plugin Service Door
-
Chiller Room Door type:
-
Hinged / Sliding / Swing / Lifting Doors
-
Surface Material:
-
Galvanized Steel/Stainless Steel
-
PU Core Density:
-
40+-/2kg/M2
-
Floor of Chiller Room:
-
PU Penal/Concrete with XPS / Checker Plate
-
Refrigeration System:
-
New Generation of Smart Cooling System
-
Condenser Type:
-
Fnv / Fnh (Air Cooled, Water Cooled, Evaporative)
-
Condensing Unit:
-
Open / Box Type
-
Insulation Panel:
-
PIR Panel/PUR Panel
-
Uses:
-
Store food, fruit, beverages, beer, meat, fish, etc

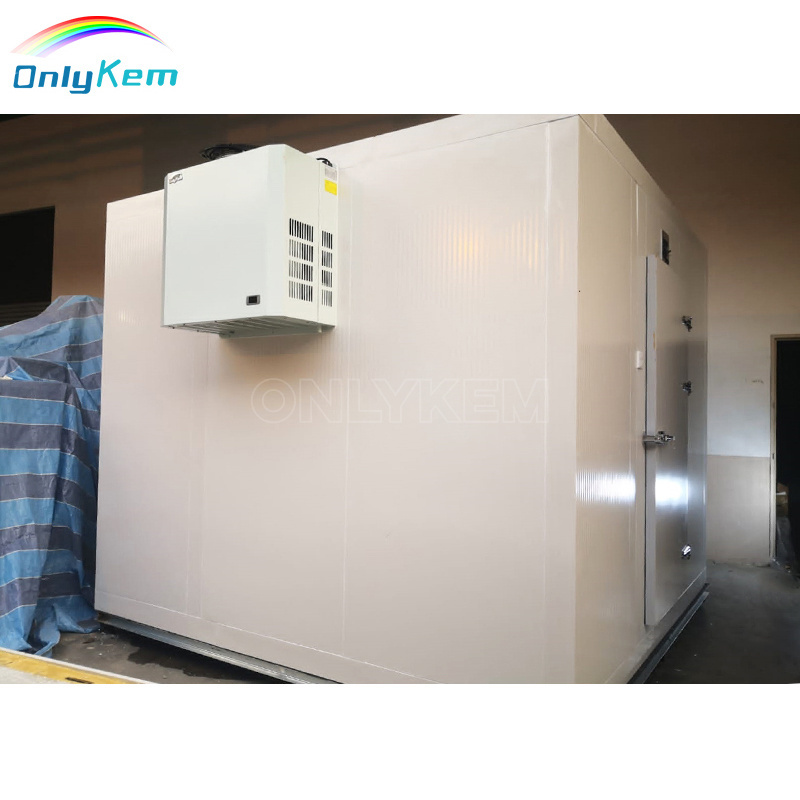

Walk in Freezer Cooling Room Refrigerator Cold Storage Chiller Room
Product Description
If you’re in the market for a walk-in cooler, you’ve come to the right place. Having a reliable and efficient walk-in cooler is essential for businesses in the food and beverage industry. Whether you’re a restaurant owner, caterer, or grocer, finding the perfect walk-in cooler that suits your needs is crucial.
Our walk in cooler refrigeration units are built to the specific needs of our customers. Each panel has been designed to provide quick and easy assembly. To ensure that the locking mechanisms and panels join correctly, our walk-ins coolers are pre-assembled at our manufacturing facility.
After testing your walk-in cooler, the panels are then packaged to ensure they are safe throughout the shipping process.
Our walk in cooler refrigeration units are built to the specific needs of our customers. Each panel has been designed to provide quick and easy assembly. To ensure that the locking mechanisms and panels join correctly, our walk-ins coolers are pre-assembled at our manufacturing facility.
After testing your walk-in cooler, the panels are then packaged to ensure they are safe throughout the shipping process.
Product Details
PUR/PIR Panel
|
Thickness
|
75mm 100mm 120mm 150mm 200mm
|
|
|
|
Width
|
Standard: 950mm
Customization Available |
|
|
|
Length
|
Maximum 10m without connection
|
|
|
|
PU Parameters
|
Density ≥ 42kg/m³
Flame Retardent Time ≤ 5s Hook Distance = 900mm |
|
|
|
Plate
|
Color Steel
|
0.326mm 0.376mm 0.426mm 0.476mm
|
|
|
|
Stainless Steel
|
0.4mm 0.5mm
|
|
|
|
Embossed Aluminium
|
0.7mm 0.8mm
|
|
Condensing Unit
Condensing Unit
Cold Room Door
Hinged door
: the standard size is 0.8 m wide and 1.8 m high, we accept customization, but its width should not exceed 1.2 m.
Sliding door
: the standard size is 1.5 m in width and 2 m in height, very convenient for trolley get in and out. It is often used
in larger freezer, such as 6 m in length and 5 m width.
in larger freezer, such as 6 m in length and 5 m width.
Double swing door
: if the width exceeds 1.2 m, we recommend double swing door. It can even the weight of hinge and extend service
life.
life.
Unit Cooler
Evaporator
• Shell: Steel with spraying,Aluminum,SS304•Temperature:DL -5~5℃(fin space 4.5mm)
DD -15~-20℃(fin space 6.0mm) DJ -25℃(fin space 9.0mm)
•Defrosting:Hot Gas,Electric Heater
•Capacity:
DL 2.2-122KW
DD1.4-88KW
DJ:1.7-58KW
•Fins:Blue fins,better heat exchane effects
•Water Receiver:Double
DD -15~-20℃(fin space 6.0mm) DJ -25℃(fin space 9.0mm)
•Defrosting:Hot Gas,Electric Heater
•Capacity:
DL 2.2-122KW
DD1.4-88KW
DJ:1.7-58KW
•Fins:Blue fins,better heat exchane effects
•Water Receiver:Double
Customer Feedback
Customized Service
In order to offer you the exactly product and price, pls let me know these information as follows :
1. What is the cold room dimensions ?
2. What kind of food to store ?
3. Which country to use the cold room ?
4. EXW/FOB/CIF price ?
Product packaging
The protective packaging of the Smart Packaged Unit:
1. Wooden box: fix the compressor and fan to prevent shaking
2. Bottom support: easy to load and unload to prevent packaging damage
The protective packaging of the PU Panel:
1, film packaging to prevent moisture, rust and transportation scratches
2. Four-corner cardboard protection to prevent impact
3, neatly placed, avoid shaking
1. Wooden box: fix the compressor and fan to prevent shaking
2. Bottom support: easy to load and unload to prevent packaging damage
The protective packaging of the PU Panel:
1, film packaging to prevent moisture, rust and transportation scratches
2. Four-corner cardboard protection to prevent impact
3, neatly placed, avoid shaking
