Quick Details
-
Product name:
-
Beautiful Modern Economic Prefabricated Houses
-
Brand:
-
Magic Core
-
Main structure:
-
light C type steel keel, 1.8-2.0 mm thickness
-
Wall material:
-
Eps/ Glass wool/rock wool Sandwish Panel
-
Roof material:
-
Sandwich panel+ decoration ceiling
-
Sandwich panel thickness:
-
50/75/100 mm or as requirement
-
Window:
-
PVC window
-
Door:
-
Steel security door,sandwich panel door
-
Other fittings:
-
Shower, toilet, kitchen etc
-
Size and color:
-
mK*nK*uP
Quick Details
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Magiccore
-
Model Number:
-
K House
-
Product name:
-
Beautiful Modern Economic Prefabricated Houses
-
Brand:
-
Magic Core
-
Main structure:
-
light C type steel keel, 1.8-2.0 mm thickness
-
Wall material:
-
Eps/ Glass wool/rock wool Sandwish Panel
-
Roof material:
-
Sandwich panel+ decoration ceiling
-
Sandwich panel thickness:
-
50/75/100 mm or as requirement
-
Window:
-
PVC window
-
Door:
-
Steel security door,sandwich panel door
-
Other fittings:
-
Shower, toilet, kitchen etc
-
Size and color:
-
mK*nK*uP
Steel structure building prefab pool house 1 bedroom mobile homes portable homes

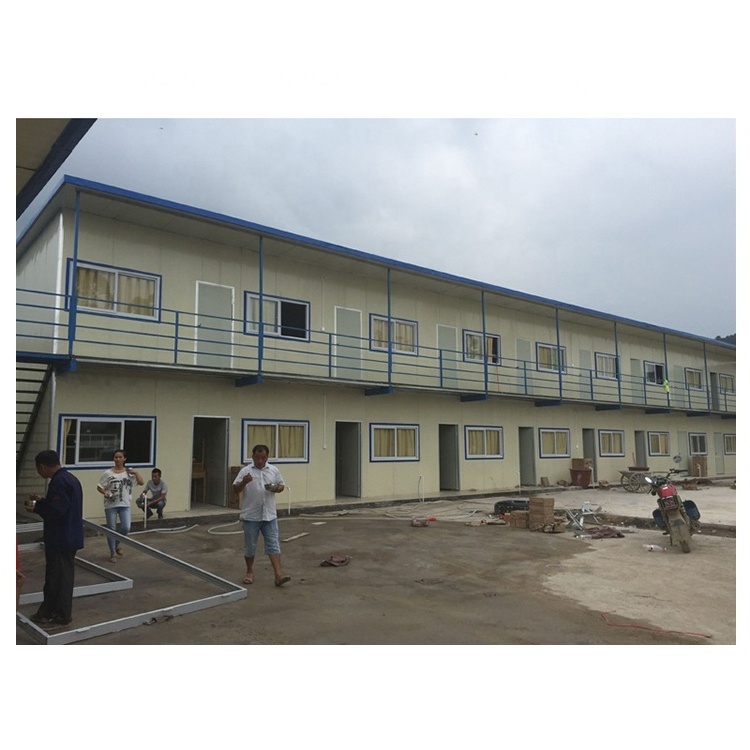

Product Display
Product Description
Prefab house is widely using in the differentindustry:the temporary house for road,railway and building site,etc.Also can be as temporary office,meeting room ,headquarters,public accommodation,and temporary store,school,hospital,parking lots,show rooms,repairing shop,gas station etc.
slope roof prefab house standard size:
Width X Length X height =m K x nK x aP (m=3/4/5, n>=3, K=1820mm, p=950mm)
For more product Information, pls click>> CONTACT ME>>
Product advantages
1.Energy saving & Eco-friendly: Standard manufacturing, no construction garbage, Low-carbon green
2.Safe & steady: Earthquake resistance is Grade 7, wind resistance is Grade 7, floor loading 1.5kN/M2.
3.Easy to assemble and dismantle: Short construction period, 4 people can install 100-150/m2 in one day.
4. Flexible design: Various modular combinations, can satisfy different requirements
5. Recyclable: Material is not easy ageing, recyclable
6.Comfortable and beautiful: Flat connection, elegant chic
7.Easy to load & delivery: 250~350 sqm per 40 HQ
| NO. | Item | Specification |
| A | Steel Structure | |
| Ground Beam | C80*40*15*2.0 | |
| Pillar | C80*40*15*2.0 | |
| Door Pillar | C80*40*15*2.0 | |
| Periphery Beam | C80*40*15*2.0 | |
| Floor Beam | C80*40*15*2.0(5460*3500mm) | |
| Floor Purlin | C40*60*1.3 | |
| Roof Beam | C80*40*15*2.0(5460*3000mm) | |
| Roof Purline | ∠ Angle Iron | |
| B | Panel | |
| Out Wall Panel | EPS panel (0.326mm, 50mm) | |
| Roof Panel | Corrugated EPS panel (0.326mm, 50mm) | |
| Partition Panel | EPS panel (0.326mm, 50mm) | |
| Second Floor Polywood board | 2.44m*1.22m*15mm | |
| C | Window and Door | |
| Window | pvc window (1740*950mm) | |
| Door | Steel Door | |
| D | Fitting | |
| Side Stair | include handrail 4700mm | |
| Corridor plate | 2900mm | |
| Corridor Rail | 3960mm | |
| Corridor support | ||
| Rain Canopy | 1100*980mm | |
| Panel Edge cover etc | 2720*80mm | |
| Waterproof plate | ||
| Straining beam | 950/1050/1818*1150mm | |
| Screw/Glue | ||
