- Product Details
- {{item.text}}
Quick Details
-

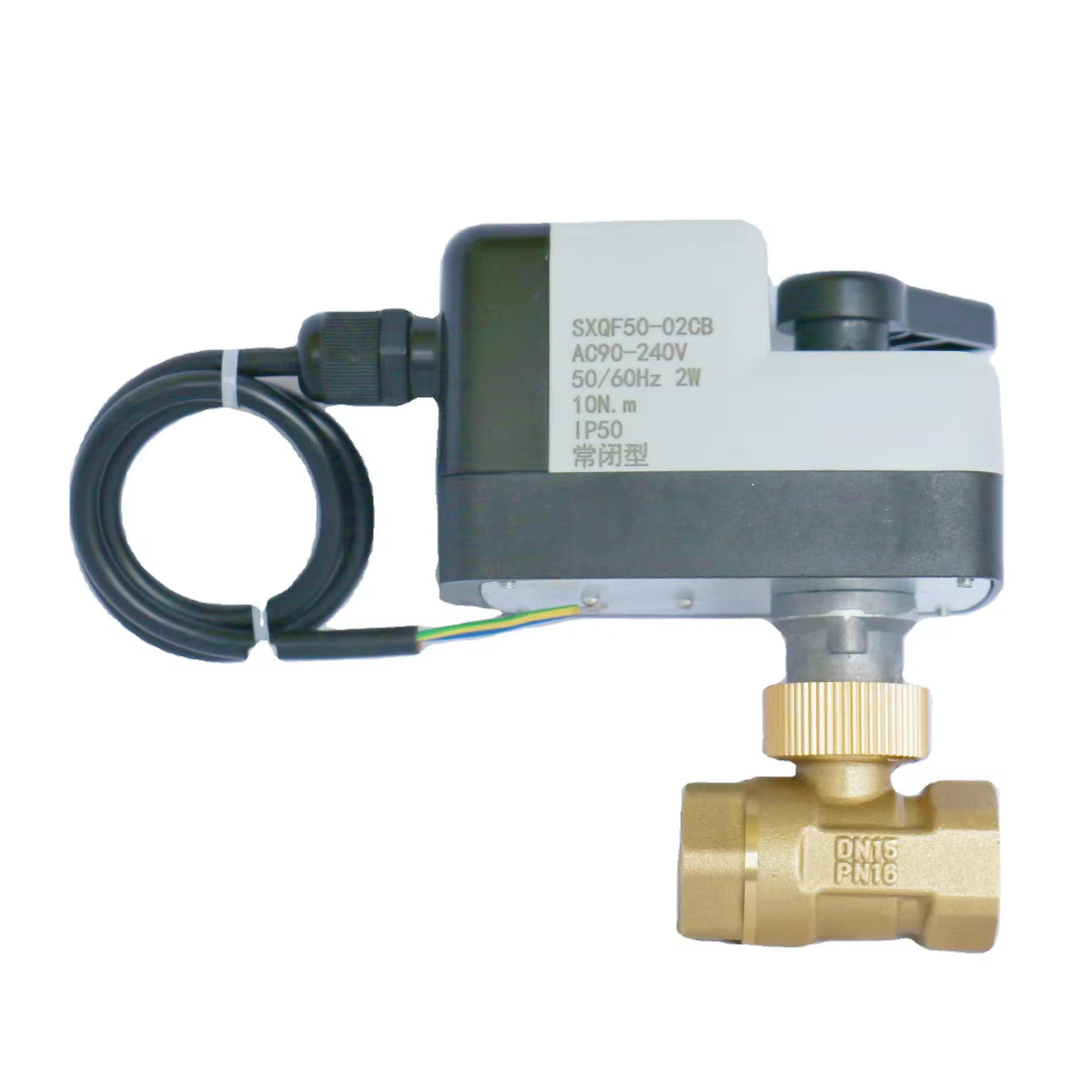

Model Number:
-
SXQF506
-
Brand Name:
-
SIXI
-
Connection Method:
-
Pipe Thread G
-
Closing Pressure Difference:
-
≤0.8Mpa
-
Medium Temperature:
-
2℃-95℃
Quick Details
-
Port Size:
-
DN15,DN20,DN25,DN32,DN40,DN50
-
Warranty:
-
2 years
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
SXQF506
-
Brand Name:
-
SIXI
-
Connection Method:
-
Pipe Thread G
-
Closing Pressure Difference:
-
≤0.8Mpa
-
Medium Temperature:
-
2℃-95℃
Products Description
Details Images
DN15
DN20
DN25
DN32
DN40
DN50
Product Paramenters
|
Motor Type
|
DC Motor
|
|
Power Cord Length
|
400mm
|
|
Protection Level
|
IP50
|
|
Operating Angle
|
0°/90°
|
|
Operation Time
|
15 seconds
|
|
Closing Pressure Difference
|
≤0.8Mpa
|
|
Nominal Pressure
|
PN16
|
|
Medium Temperature
|
2℃-95℃
|
|
Drive Torque
|
10N.m
|
|
Power Supply Specification
|
(50/60Hz)AC100-230V，AC/DC9-30V
|
|
Power Consumption
|
2W (Only when the valve is opening and closing)
|
|
Applicable Medium
|
Hot and cold water or 60% ethanol solutio
|
Certifications
Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Manufacturing Technique
The provided products are all manufactured using advanced processing techniques and comprehensive quality control procedures to ensure the reliability of product quality.
