Quick Details
-
Warranty:
-
12 years
-
Brand Name:
-
SUNERGY
-
Model Number:
-
JX108HC- 182M
-
Place of Origin:
-
Hebei, China
-
Panel Dimensions:
-
1722*1134*30mm
-
Product name:
-

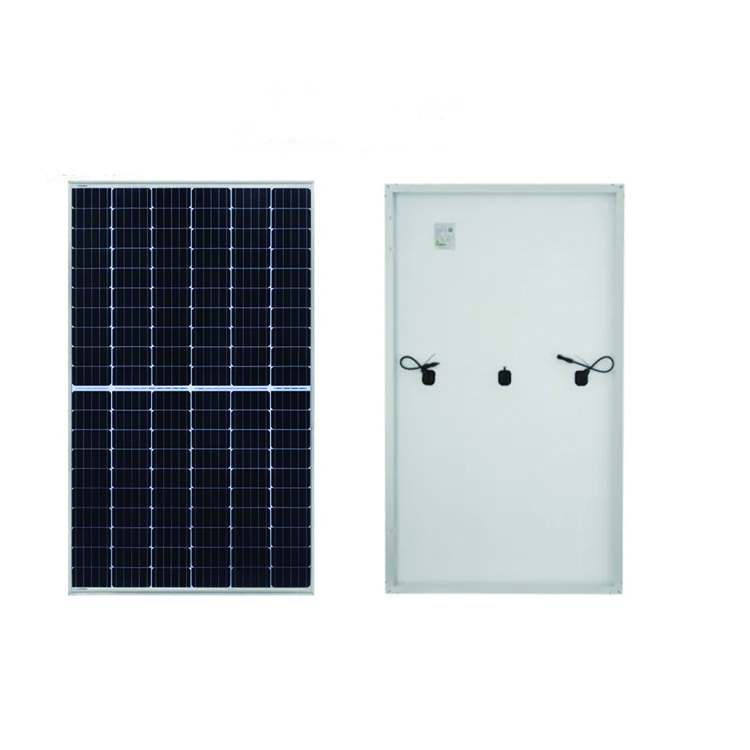

half cell monocrystalline solar panel
-
Color:
-
White/full black
-
Material:
-
Monocrystaline Silicon
-
Thickness:
-
30mm
-
Connector:
-
MC 4 Compatible Connector
-
Weight:
-
21.5kg
-
Junction Box:
-
IP68 Rated
-
Cable:
-
4.0mm2
-
Frame:
-
Anodized Aluminium Alloy
-
Application:
-
Solar Power System
Quick Details
-
Cell size:
-
182mmx91mm
-
Type:
-
PERC, Half Cell, All Black
-
Panel Efficiency:
-
21.01%
-
Warranty:
-
12 years
-
Brand Name:
-
SUNERGY
-
Model Number:
-
JX108HC- 182M
-
Place of Origin:
-
Hebei, China
-
Panel Dimensions:
-
1722*1134*30mm
-
Product name:
-
half cell monocrystalline solar panel
-
Color:
-
White/full black
-
Material:
-
Monocrystaline Silicon
-
Thickness:
-
30mm
-
Connector:
-
MC 4 Compatible Connector
-
Weight:
-
21.5kg
-
Junction Box:
-
IP68 Rated
-
Cable:
-
4.0mm2
-
Frame:
-
Anodized Aluminium Alloy
-
Application:
-
Solar Power System
Product Description
Specification
|
DATA(STC)
|
|
|
|
|
|
|||||
|
ELECTRICAL DATA(STC)
|
|
|
|
|
|
|||||
|
Peak Power Watts-Pmax(Wp)
|
390
|
395
|
400
|
405
|
410
|
|||||
|
Power Output Tolerance-P MAX (W)
|
0~+5W
|
|
|
|
|
|||||
|
Maximum Power Voltage-V MPP (V)
|
30.17
|
30.36
|
30.55
|
30.74
|
30.93
|
|||||
|
Maximum Power Current-l MPP (A)
|
12.93
|
13.02
|
13.1
|
13.12
|
13.26
|
|||||
|
Open Circuit Voltage-V OC (V)
|
36.55
|
36.78
|
37.01
|
37.24
|
37.47
|
|||||
|
Short Circuit Current-l SC (A)
|
13.61
|
13.70
|
13.79
|
13.81
|
13.96
|
|||||
|
Module Efficiencyηm (%)
|
19.98
|
20.24
|
20.5
|
20.75
|
21.01
|
|||||
|
STC:Irradiance 1000 W/m2，Cell Temperature 25℃,Air Mass AM1.5.
|
|
|
|
|
|
|||||
|
MECHNANICAL DATA
|
|
|
|
Solar cells
|
Monocrystalline 182*91mm
|
|
|
Cell orientation
|
108 cells (6*18)
|
|
|
Module dimensions
|
1722×1134×30mm
|
|
|
Weight
|
21.5kg
|
|
|
Glass
|
3.2mm (0.13 inches), High Tansmission, AR Coated Tempered Glass
|
|
|
Frame
|
Sliver anodized aluminum alloy
|
|
|
Backsheet
|
White/black
|
|
|
J-box
|
IP68 rated
|
|
|
Cables
|
Portrait 300mm(+)/300(-) 4mm2
|
|
|
Connector
|
MC4
|
|
Details Images
Solar cell
High eficiency 9bb/ 10bb /11bb /12bb
166mm/182mm/210mm
Anti-PID
Tire 1 solar cells
Anti-PID
Tire 1 solar cells
Frame
Black/Silver Color
Thickness 30/35/40mm
Thickness 30/35/40mm
Anodized Aluminium
Stress Test
Stress Test
Glass
Anti-reflective
Module efficiency increased 2%
Self-clean function
Self-clean function
EVA
White TPT
0.32mm thickness
Connector
MC4
500N Tensile Strength
Junction box
IP68 Rate
Excellent heat dissation
Innovative Full-Glue-Filled
Innovative Full-Glue-Filled
Display
Product packaging
