Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ZJGLEADER
-
Model Number:
-
Mgo Board
-
Product name:
-

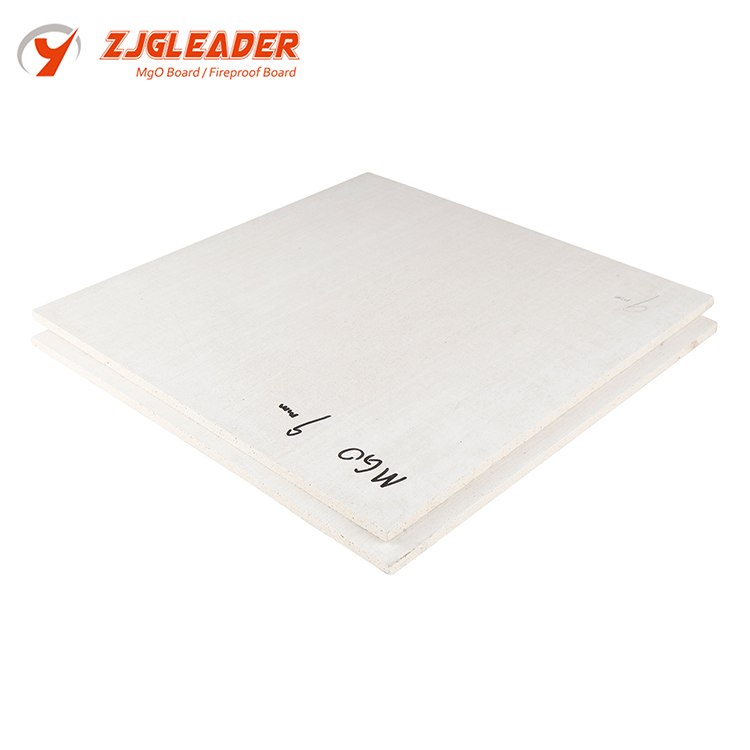

8mm magnesium board
-
Raw material:
-
MgCl2,Fiberglass cloth,MgO
-
Color:
-
White
-
Size:
-
1220*2440*8mm
-
Fireproof Grade:
-
Grade A1
-
Usage1:
-
Swimming pool board
-
Usage2:
-
Kitchen cupboard
-
Usage3:
-
living room Partition
-
Usage4:
-
For sandwich panel
-
Certificate:
-
TUV,Intertek
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ZJGLEADER
-
Model Number:
-
Mgo Board
-
Product name:
-
8mm magnesium board
-
Raw material:
-
MgCl2,Fiberglass cloth,MgO
-
Color:
-
White
-
Size:
-
1220*2440*8mm
-
Fireproof Grade:
-
Grade A1
-
Usage1:
-
Swimming pool board
-
Usage2:
-
Kitchen cupboard
-
Usage3:
-
living room Partition
-
Usage4:
-
For sandwich panel
-
Certificate:
-
TUV,Intertek
Product Description
Advantages of High quality mgo board magnesium oxide fireproof board display
1.Contains no asbestos formaldehyde, no fumes when fire resistant
2.Strong fire resistance, fire resistance up to 3 hours
3.High strength, flexible substrate
4.Waterproof and moisture proof
5.Excellent sound absorption and noise reduction
6.Excellent thermal insulation and reduced energy consumption
7.Easy to construct and save time
8.Anti-termite, anti-fungal
1.Contains no asbestos formaldehyde, no fumes when fire resistant
2.Strong fire resistance, fire resistance up to 3 hours
3.High strength, flexible substrate
4.Waterproof and moisture proof
5.Excellent sound absorption and noise reduction
6.Excellent thermal insulation and reduced energy consumption
7.Easy to construct and save time
8.Anti-termite, anti-fungal
Specification
MGO board uses proprietary with Mgo,MgCl2,Perlite,Fiberglass, Chip compounds to deliver a multi-purpose, versatile,non-combustible, and unique board material. This intergral, hard, inert and paperless construction panel has superior characteristics over panels made from gypsum,clay or wood and paper particles. So for an easier, better and faster job, MGO board is best for interior and exterior construction
|
Magnesium Oxide Board(MgO Board)
|
|
|
|
Common Size
|
1220mm*2440mm*3-20mm
|
|
|
Colors
|
White, Gray
|
|
|
Density
|
0.96-1.12g/cm
3
|
|
|
Moistre Content
|
10-12%
|
|
|
Fire Rating
|
A1
|
|
|
Bending Strength
|
8-15Mpa
|
|
|
Impact Strength
|
2.0-3.6kj/m
2
|
|
|
Antiswelling Effection
|
<=0.6%
|
|
|
Chloride Ion Content
|
<=10%
|
|
Processing
Mgo Board Processing
The difference between standard mgo board and sanded mgo board
The back side of sanded Mgo board is polished and sanded by sanding machine. The surface side is with slurry treatment, more smooth touch.
It can be glued with HPL panels on the surface and directly be spray painted on the back of sanded mgo board. Both of these decorative ways can be used in indoor decoration.
The following sanded MGO board for you better reference
The edge of mgo board
Product Show
Application:
Magnesium board products can be applied as wall sheathing, trim, fascia, and siding. Inside homes, magnesium board serves as a tile backer, wall panel, ceiling board, firewall, floor and drop ceiling tile. Dryboard can also incorporate magnesium boards.
|
Size(mm)
|
Thickness(mm)
|
Application
|
|
1220*2440
|
3-4
|
Liner veneer/Fireproof door
|
|
|
4-6
|
Ceiling/Partition/Liner veneer
|
|
|
6-12
|
Partition/Fireproof door
|
|
|
12-15
|
Interior wall/Exterior wall/Fireproof door
|
|
1220*2440
|
15-20
|
Floor/Fireproof door
|
