Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LISEN
-
Model Number:
-
LS18-1-41
-
Original Part Number:
-
AT16-18SA-K004
-
Material:
-
PBT
-
Othere Part Number:
-
DT16-18SA-K004
-
Color:
-
Black
-
MOQ:
-
10 PCS
-
Aplication:
-
For Car
-
Fitment Type:
-
Direct Replacement
-
Keywords:
-
18-way connector
-
Warranty:
-
one year
-
Shipping by:
-
DHL\UPS\Fedex\EMS\ARAMEX
Quick Details
-
Type:
-
ADAPTER
-
Application:
-
Automotive
-
Gender:
-
Female
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LISEN
-
Model Number:
-
LS18-1-41
-
Original Part Number:
-
AT16-18SA-K004
-
Material:
-
PBT
-
Othere Part Number:
-
DT16-18SA-K004
-
Color:
-
Black
-
MOQ:
-
10 PCS
-
Aplication:
-
For Car
-
Fitment Type:
-
Direct Replacement
-
Keywords:
-
18-way connector
-
Warranty:
-
one year
-
Shipping by:
-
DHL\UPS\Fedex\EMS\ARAMEX
Product Paramenters
|

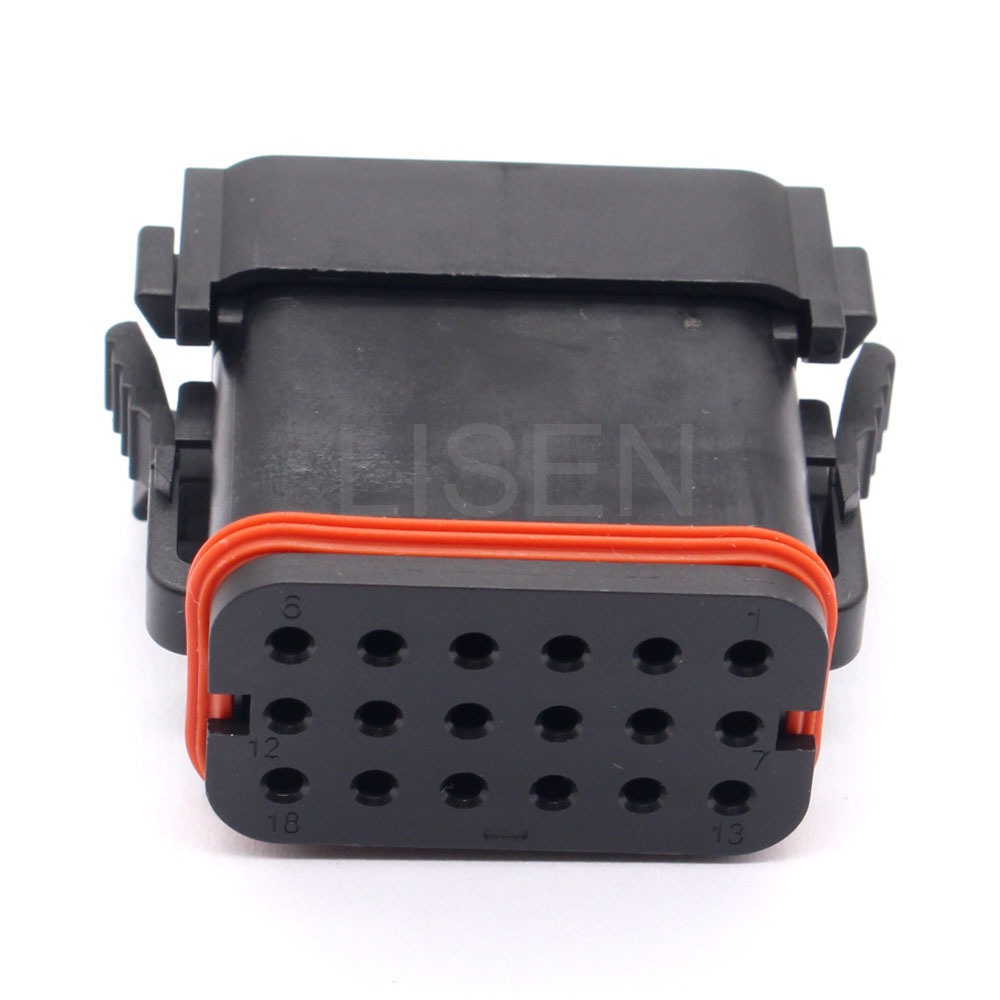

Amphenol AT16-18SA-K004 Power 18-Way Connector With End Cap Comparable to DT16-18SA-K004
|
|
|
|
|
|||
|
Remark
|
All connectors come complete with female terminals and wire seal
|
Application
|
Power,Wire to Board,Wire to Wire
|
|
|||
|
Keywords
|
18-Way Connector
|
Connectors
|
Headers & wire housing
|
|
|||
|
Manufacturer
|
Lisen
|
Current Rating
|
5 A
|
|
|||
|
Number of Positions
|
18 Position
|
Housing Materials
|
Silicone
|
|
|||
|
Number of Rows
|
3 Row
|
Maximum Operating Temperature
|
+ 105C & +125 C
|
|
|||
|
Sealed/Unsealed
|
|
Minimum Operating Temperature
|
- 40 C
|
|
|||
|
Contact Gender
|
Socket (female)
|
Mounting Style
|
Cable Mount / Free Hanging
|
|
|||
|
Housing Gender
|
Female
|
Termination Style
|
Crimp
|
|
|||
|
Contact Type
|
Socket
|
Type
|
Crimp Housing
|
|
|||
|
Features
|
With Connector Position Assurance Lock
|
Contact resistance
|
Initial
8mΩ Max. after durability tests 16mΩ Max. |
|
|||
|
Leak current
|
|
Seal
|
Initial
50kPa Min. after durability tests 30kPa Min. |
|
|||
|
Insulation resistance
|
100MΩ Min.
|
|
|
|
|||
