Quick Details
-
Place of Origin:
-
United States
-
Brand Name:
-
Tesheng
-
Voltage:
-
110-480V
-
Dimension(L*W*H):
-
Customized
-
Weight (KG):
-
50 kg
-
Product name:
-
vacuum conveyor
-
Keyword:
-
material handling machine
-
Application:
-
Conveying
-
Machine Type:
-
Pneumatic/electric type
-
Capacity:
-
600-6000 L/h
-
Installation:
-
Engineer's Guide
-
Function:
-
Conving Equipment
-
Size:
-
Accept Customized Sizes
-
Conveying distance:
-
2-20m
-
Noise:
-
≤65dB
Quick Details
-
Power:
-
1.6-7.5kw
-
Warranty:
-
1 Year
-
Width or Diameter:
-
Customized
-
Place of Origin:
-
United States
-
Brand Name:
-
Tesheng
-
Voltage:
-
110-480V
-
Dimension(L*W*H):
-
Customized
-
Weight (KG):
-
50 kg
-
Product name:
-
vacuum conveyor
-
Keyword:
-
material handling machine
-
Application:
-
Conveying
-
Machine Type:
-
Pneumatic/electric type
-
Capacity:
-
600-6000 L/h
-
Installation:
-
Engineer's Guide
-
Function:
-
Conving Equipment
-
Size:
-
Accept Customized Sizes
-
Conveying distance:
-
2-20m
-
Noise:
-
≤65dB
Product Description

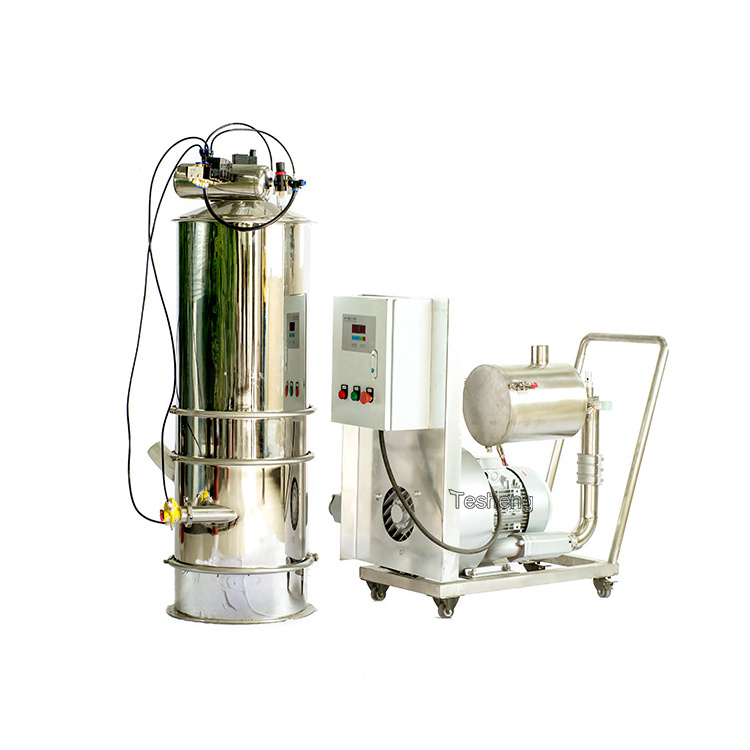

Factory custom material handling machine vacuum conveying
equipment conveyor for production line
Vacuum conveyor is a commonly used material conveying equipment, used to convey powdery or granular materials from low places to high or distant target locations. This vacuum conveying system is widely used in food processing, chemical, plastics, building materials and other industries. It uses negative pressure effect and vacuum suction to extract, convey and unload materials.
When using a vacuum loader, reasonable selection and design need to be made based on factors such as material characteristics, conveying distance, conveying volume, and working environment.
Features of
Vacuum conveyor
1. No pollution: The vacuum conveyor adopts a closed conveying method, which reduces the diffusion of materials and the generation of dust.
2. Precise control: Negative pressure intensity, conveying speed and discharge position can be adjusted through the control system.
3. Strong adaptability: The vacuum
conveyor
can handle particles and powders of different particle sizes and properties.
4. Saving manpower: Automated operations reduce manual intervention and reduce labor costs.
|
Model
|
ZKS-1
|
ZKS-2
|
ZKS-3
|
ZKS-4
|
ZKS-5
|
ZKS-6
|
ZKS-7
|
|
Capacity
|
600L/h
|
600L/h
|
1200L/h
|
2000L/h
|
3000L/h
|
4000L/h
|
6000L/h
|
|
|
|
|
|
|
|
|
|
|
Power
|
1.6kw
|
2.2kw
|
3kw
|
4.0kw
|
5.5kw
|
5.5kw
|
7.5kw
|
|
gas consumption
|
8L/min
|
8L/min
|
10L/min
|
12L/min
|
12L/min
|
12L/min
|
17L/min
|
|
Air pressure
|
0.5-0.6
mpa
|
0.5-0.6
mpa
|
0.5-0.6
mpa
|
0.5-0.6
mpa
|
0.5-0.6
mpa
|
0.5-0.6
mpa
|
0.5-0.6
mpa
|
The following is an
automated production line
designed for
an Indonesian customer
. The material is transported by a vacuum conveyor to the mixer, and then the mixed material is transported by the vacuum conveyor to the silo, and finally the packaging process is completed by the packaging machine.
If you want to design a production line, please contact us today!
