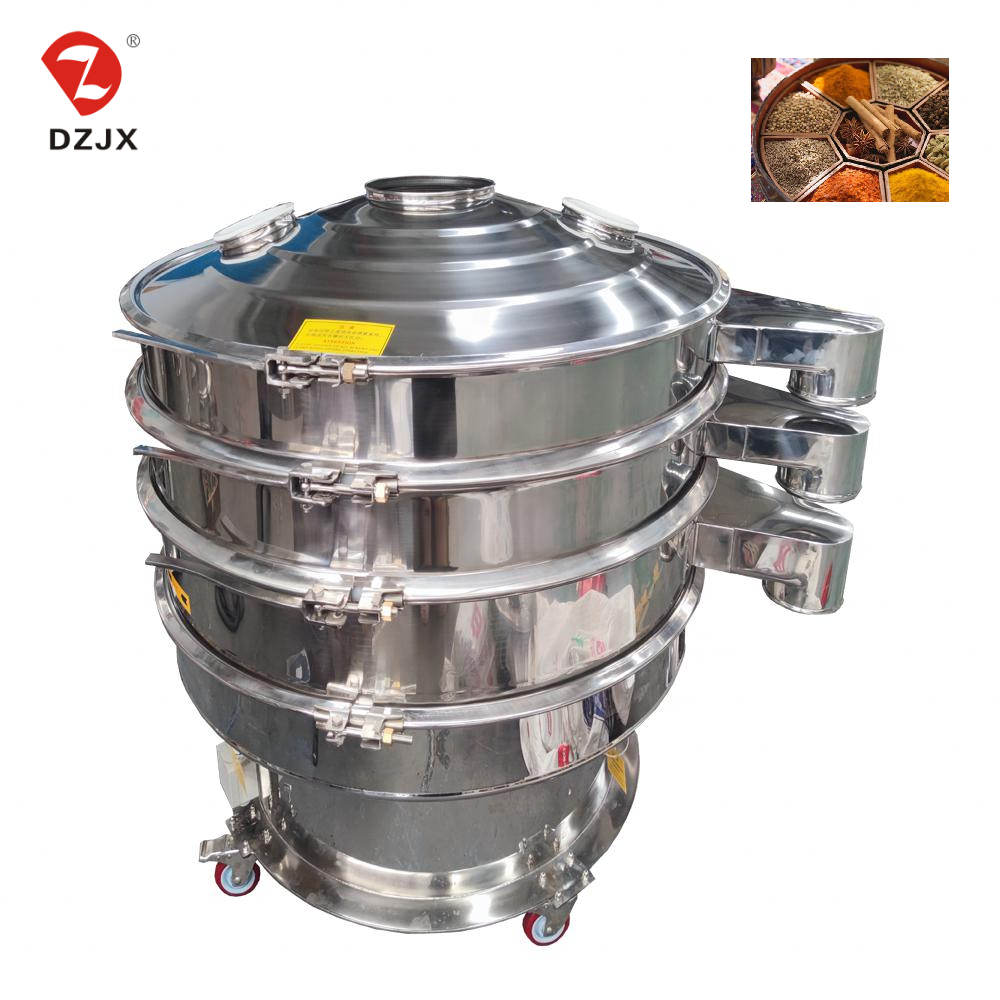

DZJX Small Curry Chemical Mechanical Micron Powder Vibrating Screen/Electric Ultrasonic Vibro Sieve Shaker Screening Machine
DZJX Small Curry Chemical Mechanical Micron Powder Vibrating Screen/Electric Ultrasonic Vibro Sieve Shaker Screening Machine
DZJX Small Curry Chemical Mechanical Micron Powder Vibrating Screen/Electric Ultrasonic Vibro Sieve Shaker Screening Machine
DZJX Small Curry Chemical Mechanical Micron Powder Vibrating Screen/Electric Ultrasonic Vibro Sieve Shaker Screening Machine
DZJX Small Curry Chemical Mechanical Micron Powder Vibrating Screen/Electric Ultrasonic Vibro Sieve Shaker Screening Machine
DZJX Small Curry Chemical Mechanical Micron Powder Vibrating Screen/Electric Ultrasonic Vibro Sieve Shaker Screening Machine
DZJX Small Curry Chemical Mechanical Micron Powder Vibrating Screen/Electric Ultrasonic Vibro Sieve Shaker Screening Machine
DZJX Small Curry Chemical Mechanical Micron Powder Vibrating Screen/Electric Ultrasonic Vibro Sieve Shaker Screening Machine

DZJX Small Curry Chemical Mechanical Micron Powder Vibrating Screen/Electric Ultrasonic Vibro Sieve Shaker Screening Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $999
≥5 Sets
US $949
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
110V220V230V380V400V415V440V500V600V50HZ60HZ
Dimension(L*W*H):
Vary
Weight:
100 KG
Product name:
Industrial Rubber vibro sieve screen/Palm oil vibrating screen sifter
Material:
Carbon Steel/ Stainless Steel 304/SUS316
Motor:
Vertical Vibrating Motor
Function:
Screening\separation
Layer(s):
1-4 Layers
Capacity:
Recommended Suitable Model
Mesh size:
2-500 Mesh
Surface treatment:
Sandblast/mirror polishing/coating powder/satin finishing
After-sales Service Provided:
Free spare parts
Certification:
ISO CE

Quick Details

Type:
Circular
Place of Origin:
Henan, China
Brand Name:
DZJX
Voltage:
110V220V230V380V400V415V440V500V600V50HZ60HZ
Dimension(L*W*H):
Vary
Weight:
100 KG
Product name:
Industrial Rubber vibro sieve screen/Palm oil vibrating screen sifter
Material:
Carbon Steel/ Stainless Steel 304/SUS316
Motor:
Vertical Vibrating Motor
Function:
Screening\separation
Layer(s):
1-4 Layers
Capacity:
Recommended Suitable Model
Mesh size:
2-500 Mesh
Surface treatment:
Sandblast/mirror polishing/coating powder/satin finishing
After-sales Service Provided:
Free spare parts
Certification:
ISO CE
Products Description
DZJX Small Curry Chemical Mechanical Micron Powder Vibrating Screen/Electric Ultrasonic Vibro Sieve Shaker Screening Machine
S49 -B Rotary vibration screen is a kind of high-precision screening machinery, its low noise, high efficiency, fast change the screen(3-5 minutes), fully closed structure, suitable for particles , powder, liquid and other materials classification, filtration and removal of impurities.

Working Principle

Rotary vibration screen is made of an upright motor as a source of vibration, the motor is installed at the upper and lower ends of the eccentric heavy hammer, the motor rotation motion into horizontal, vertical, oblique three-dimensional motion, and then the motion to the screen surface. Adjust the phase Angle of the upper and lower ends to change the motion track of the material on the screen surface.
Why choose us

Observation hole & Inlet
* Observation holes can be added on the cover of the machine according to customer requirements, convenient to check the material screening at any time.
* According to customer requirements, the inlet can be designed into various shapes (such as funnel, round, rectangular, etc.)

Equipment surface treatment
* Internal and external mirror surface polishing, leaving no dead angle.
*According to customer requirements, spray painting, sand blasting and other processing methods can also be used.

Vibration motor
* DZJX rotary vibrating screen uses world famous brand motor --OLI motor, more durable, maintenance free, CE certification.

Explosion proof junction box
It is safe, dustproof, waterproof and easy to operate.

Screen cleaning device
* According to the characteristics of the material, choose different screen cleaning device: bouncing ball or ultrasonic generator.
DETAILS DISPLAY NOT AFRAID TO ENLARGE THE DISPLAY
Please click here to contact us,view more.
Product shows
Please click here to contact us,view more.

Application

Chemical industry : resin pigment, calcium carbonate, decorative coatings, medicine, grease, paint, palette, etc. Abrasive material and ceramic industry : building sand, mica, alumina, silica sand, abrasive, refractory material, slurry, etc. Food industry : sugar, salt, alkali, flour powder, nut powder, whey protein powder , maltodextrin , flavors , sucralose , xanthan gum, soy lecithin ,farina, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc. Paper-making industry :coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc. Metallurgy and mining industry : quartz sand, sand, ore, titanium oxide, zinc oxide, etc. Mechanical industry : casting sand, charcoal, grafito, powder metallurgy, electromagnetic material and metal powder, etc

Product Parameters


Model
Diameter(mm)
Deck
Screen mesh area(mm)
Mesh size(mesh)
Max particle size(mm)
Power(kw)
S494-B
Φ400








1-5
Φ380
3-500
<20
0.25
S496-B
Φ600
1-4
Φ600
3-500
<20
0.6
S498-B
Φ800
1-4
Φ750
3-500
<30
0.6
S4910-B
Φ1000
1-5
Φ900
3-500
<30
0.8
S4912-B
Φ1200
1-5
Φ1100
3-500
<30
1.5
S4915-B
Φ1500
1-4
Φ1450
3-500
<50
2.2
S4918-B
Φ1800
1-3
Φ1750
3-500
<50
2.5
S4920-B
Φ2000
1-3
Φ1950
3-500
<60
2.5
Please click here to contact us,view more.
Customer site
Packing & Delivery
Please click here to contact us,view more.
About us
Xinxiang Dongzhen Machinery Co. LTD
(1) 36 years professional pharmaceutical ,food and chemical machinery manufacturer and supplier. (2) 1 Years Warranty, 14 Days Delivery, Factory Price.
(3) 14800㎡ factory, Own R&D Team. (4) Free design service, free professional solutions. (5) Passed ISO9001, CE, SGS, Intetek certificates. (6) Provide alibaba quality and delivery guarantee services.
