Quick Details
-
Weight (KG):
-
1150
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SmartWeigh
-
Warranty of core components:
-
1.5Year
-
Core Components:
-
multihead weigher
-
Product name:
-
automatic tray denester machine
-
Main Function:
-
Weighing Forming Filling Sealing
-
Usage:
-
food
-
Keyword:
-
automatic meat packing machine
-
Feature:
-
High Effective
-
Control system:
-
PLC+Servo+Touch Screen
-
Capacity:
-
30-tray/m
-
Item:
-
tary packing mahcine
-
Material:
-
Stainless Steel 304
-
Other name:
-
multihead weigher packing line
-
Marketing Type:
-
New Product 2021
Quick Details
-
Function:
-
FILLING, Laminating
-
Packaging Type:
-
tray
-
Packaging Material:
-
Plastic
-
Weight (KG):
-
1150
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SmartWeigh
-
Warranty of core components:
-
1.5Year
-
Core Components:
-
multihead weigher
-
Product name:
-
automatic tray denester machine
-
Main Function:
-
Weighing Forming Filling Sealing
-
Usage:
-
food
-
Keyword:
-
automatic meat packing machine
-
Feature:
-
High Effective
-
Control system:
-
PLC+Servo+Touch Screen
-
Capacity:
-
30-tray/m
-
Item:
-
tary packing mahcine
-
Material:
-
Stainless Steel 304
-
Other name:
-
multihead weigher packing line
-
Marketing Type:
-
New Product 2021
Products Description

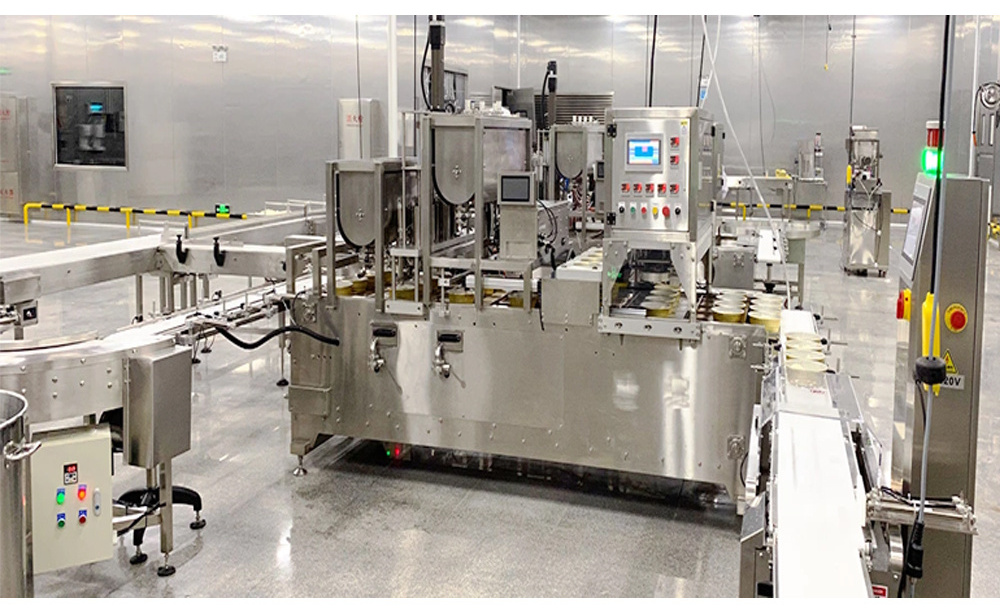

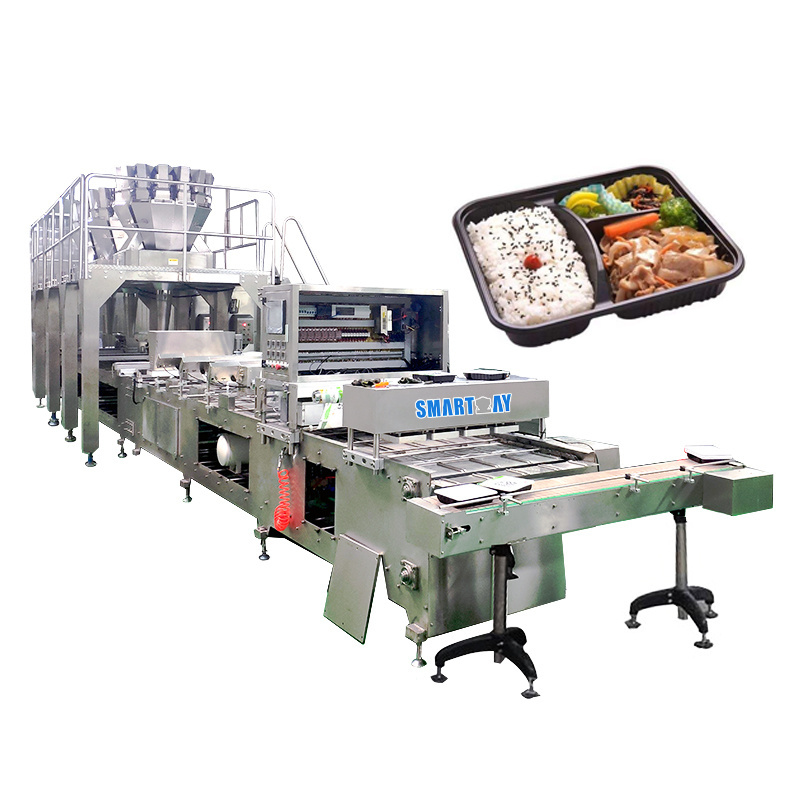

Fully automatic linear tray filling sealing machine can auto loading the empty trays, empty trays detecting, auto quantitative filling product into tray, automatic film pulling and waste collecting, auto tray vacuum gas flushing, sealing and film cutting,auto ejecting the finish product to conveyor. Its capacity 1000-1500trays per hour, suitable for the foods factory production needs.
|
Model
|
SW-2R-VG
|
SW-4R-VG
|
|
|
Voltage
|
3P380v/50hz
|
|
|
|
Power
|
3.2kW
|
5.5kW
|
|
|
Sealing temperature
|
0-300℃
|
|
|
|
Tray size
|
L:W≤ 240*150mm H≤55mm
|
|
|
|
Sealing Material
|
PET/PE, PP, Aluminum foil, Paper/PET/PE
|
|
|
|
Capacity
|
700 trays/h
|
1400 trays/h
|
|
|
Replacement rate
|
≥95%
|
|
|
|
Intake pressure
|
0.6-0.8Mpa
|
|
|
|
G.W
|
680kg
|
960kg
|
|
|
Dimensions
|
2200×1000×1800mm
|
2800×1300×1800mm
|
|
Features
1.Driven system: servo motor with gearbox for the tray molds stepping running, it can move filled tray very fast but avoid
material splash because servo motor can start and stop smoothly, and also high positioning accuracy.
2. Empty tray loading function: it using spiral separating and pressing technology which can avoid the tray damage and deforming,
it has vacuum sucker which guide the tray enter into mold accuracy.
3.Empty tray detecting function: it use photoelectric sensor or optical fiber sensor to detect the mold have or haven’t empty tray, it can avoid the mistake filling, sealing and capping if the mold without the trays, reduce the product waste and machine cleaning time.
material splash because servo motor can start and stop smoothly, and also high positioning accuracy.
2. Empty tray loading function: it using spiral separating and pressing technology which can avoid the tray damage and deforming,
it has vacuum sucker which guide the tray enter into mold accuracy.
3.Empty tray detecting function: it use photoelectric sensor or optical fiber sensor to detect the mold have or haven’t empty tray, it can avoid the mistake filling, sealing and capping if the mold without the trays, reduce the product waste and machine cleaning time.

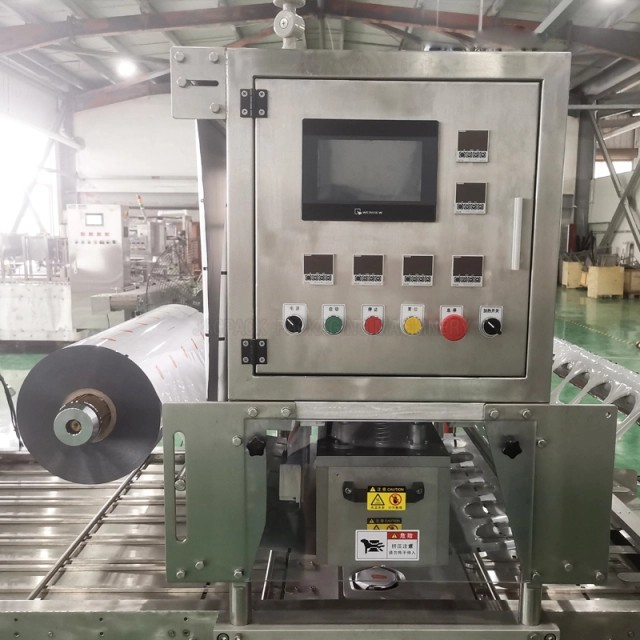

Vacuum gas flushing sealing cutting device

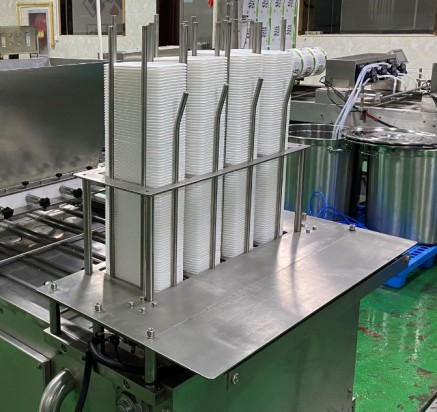

Tray dispenser

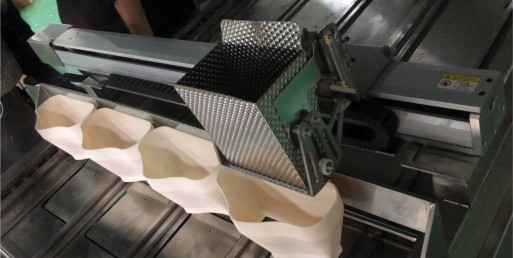

Servo products dispenser
●
Japan Minebea load cell for high weighing accuracy.
●
Modular drive (mother board and driving board) contorol system,stronger data handling ability. Drivingboard is commonly used between
SMARTWEIGH multihead weigher.
●
Weigher surface wrapped stainless steel protective film, avoiding the scratch during assembling and testing.
Application
Dispenses and stacks trays, boxes, food packaging, containers, cups, plastic pots, and so much more
Numerous tray shapes and sizes including: rectangular; square; round; oval; octagon – any shapes available in the marketplace
Tray compositions supported include: aluminum; foam; surgical plastic trays; plastic “tubs” paperboard; and much more
Detailed Images
Flat conveyer belt
2. Easy to install, simple assembly line with guide frame and light tube;
3. Suitable 750mm height for worker;
4. Independent work tables for many workers;
5. Easy maintenance and keep cleaning ;
It can be applicated for electonics(for example: mobile phone, cable, earphone, battery, mp4, watches...), pcb, chips, mini
boxes, mini ESD trays, toys, decorations etc.
Company Introduction
FAQ
1. How can you meet our requirements and needs well?
We will recommend the suitable model of machine and make the unique design based on your project details and requirements.
2. Are you manufacturer or trading company?
We are manufacturer; we are specializing in packing machine line for many years.
3. What about your payment?
* T/T by bank account directly
* Trade assurance service on Alibaba
* L/C at sight
4. How can we check your machine qualityafter we place an order?
We will send the photos and videos of the machine to you to check their running situation before delivery. What's more, welcome to come to our factory to check the machine by you own
5. How can you ensure you will send us the machine after the balance paid?
We are a factory with business license and certificate. If that is not enough, we can make the deal through trade assurance service on Alibaba or L/C payment to guarantee your money.
6. Why we should choose you?
* Professional team 24 hours provide service for you
15 months warranty
Old machine parts can be replaced no matter how long you have bought our
machine
* Oversea sevice is provided.
