Quick Details
-
Voltage:
-
Single Phase 220V
-
Place of Origin:
-
China
-
Brand Name:
-
Easty
-
Dimensions(L*W*H):
-
1.85*0.66*1.25m
-
Weight:
-
432.5kgs
-
Heating:
-
Oil Heating
-
Certification:
-
CE
Quick Details
-
Condition:
-
New
-
Plate Type:
-
dye sublimation printing
-
Color & Page:
-
Multicolor
-
Voltage:
-
Single Phase 220V
-
Place of Origin:
-
China
-
Brand Name:
-
Easty
-
Dimensions(L*W*H):
-
1.85*0.66*1.25m
-
Weight:
-
432.5kgs
-
Heating:
-
Oil Heating
-
Certification:
-
CE

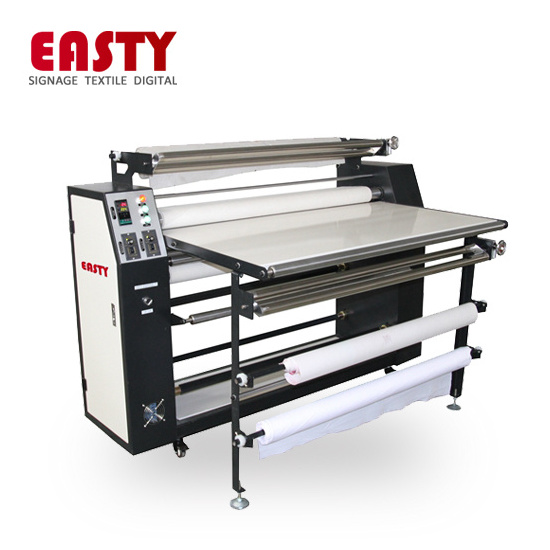

SOT series is entry level small format heat transfer machine. It is able to
lower cost to
handle small production of roll-to-roll or cut piece
jobs
. Easty
SOT
occupies small workplace and only one operator
is needed, which saves
power and labor
cost
.
FEATURES
* Suitable for roll-to-roll & Piece-by-piece jobs
* With 3 pairs of CNC cutting Feeding and Take-up Rolls . R igid rolls prevent deforming , no curl and ripple pattern for ultra-long transfer without tracking.
* S tainless steel h eating rollers , CNC forming ensure smoothness of the surface
* 70% blanket coverage , reduce heat lost & ensure a good transfer result.
* Upper feeding to keep accuracy and lower the fault rate in process.
* Oil heating design, distributes heat evenly across the drum.
*
Optional B
lanket Auto Alignment
SPECIFICATIONS
|
Easty Calendar |
SOT-1220 |
SOT-1320 |
SOT-1720 |
|
Heating Media |
Oil Heating |
||
|
Voltage |
Single Phase 220V |
||
|
Drum Diameter |
200mm (7.9”) |
||
|
Transfer Speed |
Up to 0.5m/min (5.4”/min) |
||
|
Max. Temperature |
240 ℃ (464 ºF) |
||
|
Heating Power |
4.5KW |
5KW |
9KW |
|
Heat Element |
3 pcs |
3 pcs |
6 pcs |
|
Transfer width |
1220mm (48”) |
1370mm (54”) |
1700mm (64”) |
|
Piece or Rolls Jobs |
Yes (3 feeding & 3 collecting rollers) |
||
|
Felt Release |
Yes, by hand crank |
||
|
Table size(m) |
1.63*0.8*0.95m(64”*32”*38”) |
1.73*0.8*0.95m(68”*32*38”) |
.9*0.62*0.68m(75”*25”*27”) |
|
Machine size(m) |
1.85*0.66*1.25m(73”*26”*50”) |
1.95*0.66*1.25m(77”*26”*50”) |
2.45*0.72*1.3m(96”*28”*51”) |
|
Packing size(m) |
2.01*0.85*1.52m(79”*34”*60”) |
2.15*0.86*1.53m(84”*34”*60”) |
2.64*0.95*1.6m(104”*38”*63”) |
|
Gross Weight |
432.5kg (953lb) |
TBD |
984kg (2169lb) |
* Blanket and oil drum are not under warranty
* Other parts are eligible for 12 months warranty under proper use (starting from EXW-factory time)
