Quick Details
-
Particle diameter:
-
<7mm
-
Function:
-
Wet Model Plastering Machine
-
Pressure:
-
2-5Mpa
-
COLOR:
-
Customized
-
Hopper volume:
-
50-130L
-
Voltage:
-
220v
-
Type:
-
Wall Spray Grouting Machine
-
Usage:
-
Wall spraying
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Henan, China
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Online support
-
Name:
-
cement mortar spraying machine
-
Particle diameter:
-
<7mm
-
Function:
-
Wet Model Plastering Machine
-
Pressure:
-
2-5Mpa
-
COLOR:
-
Customized
-
Hopper volume:
-
50-130L
-
Voltage:
-
220v
-
Type:
-
Wall Spray Grouting Machine
-
Usage:
-
Wall spraying
-
Certification:
-
CE

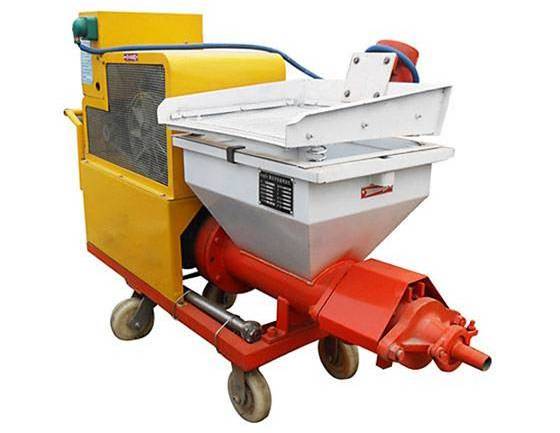

High quality wall plaster spraying machine cement mortar spraying machine
Advantage:
1. Wide range of application
2. Computer automatic control
3. Compact and lightweight
4. Energy saving and environmental protection
Technical Parameters:
|
Model |
QT-3m³ |
QT-5m³ |
|
Conveying pressure |
3MPa |
5MPa |
|
Conveying height |
30m |
40m |
|
Conveying distance |
60m |
80m |
|
Particle diameter |
<7mm |
<7mm |
|
proportion of water, ash and sand |
0.7-1: 1 : 4 |
0.7-1: 1 : 6 |
|
Hopper volume |
60L |
90L |
|
Supporting air compressor |
3m³ |
5m³ |
|
Supporting nozzle |
32mm |
38mm |
|
main motor power |
7.5KW |
7.5KW |
|
Voltage |
220V |
220V |
|
Weight |
260KG |
320KG |
Service before sale
1. 24 hours online .Your inquiry will be quick reply by email .
Also can go through all questions with you by any online chatting tools (Wechat ,Whatsapp ,Skype ,Viber ,QQ , TradeManager )
2. Professionally and patiently introduction,details pictures and working video to show machine
Service on sale
1. Test every machine and inspect the machine seriously .
2.Send the machine picture which you order , then packing it with standard export wooden box after you confirm the machine is ok .
3.Delivery:If ship by sea .after delivery to seaport .Will tell you the shipping time and arrival time . Finally, send all original documents to you by Express For Free.
If delivery it by Express to your door(DHL, TNT,Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request . We will tell you the tracking number after delivery .
Service after sale
1. Free insurance for goods
2.24 hours online to solve any problem . Supply you English manual book and technical support , maintain and install video to help you solve the problem, or dispatch worker to your factory.
