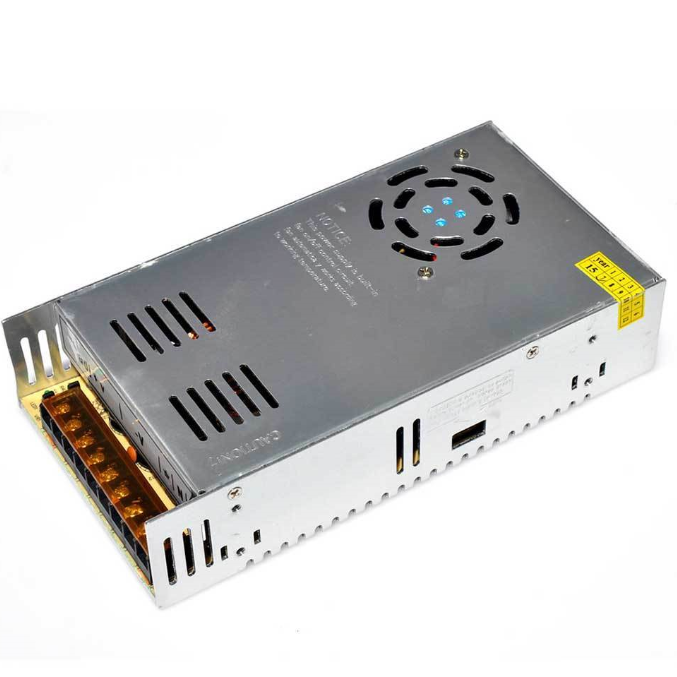

Well- designed 220v ac dc 33a 400w 12v 24v switch power supply for LED strip
Well- designed 220v ac dc 33a 400w 12v 24v switch power supply for LED strip
Well- designed 220v ac dc 33a 400w 12v 24v switch power supply for LED strip
Well- designed 220v ac dc 33a 400w 12v 24v switch power supply for LED strip
Well- designed 220v ac dc 33a 400w 12v 24v switch power supply for LED strip
Well- designed 220v ac dc 33a 400w 12v 24v switch power supply for LED strip

Well- designed 220v ac dc 33a 400w 12v 24v switch power supply for LED strip

FOB Reference Price: Get Latest Price
≥5 Pieces
US $6.8
≥500 Pieces
US $6.7
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
C-Power
Model Number:
CP-40012S
Output Frequency:
50/60Hz
Output Current:
33A
Application:
Electronics
Certification:
CE
Warranty:
3 Years
Type:
Constant Voltage
Efficiency:
82%
Product Name:
400w 12v power supply
Output voltage:
12vdc
Current:
33a
Brand:
C-Power

Quick Details

Input Voltage:
110v/220v, 220V
Output Voltage:
12V
Place of Origin:
Guangdong, China
Brand Name:
C-Power
Model Number:
CP-40012S
Output Frequency:
50/60Hz
Output Current:
33A
Application:
Electronics
Certification:
CE
Warranty:
3 Years
Type:
Constant Voltage
Efficiency:
82%
Product Name:
400w 12v power supply
Output voltage:
12vdc
Current:
33a
Brand:
C-Power
Product Description

Feature

1.Universal AC input / full range
2.Input Frequency 47-63Hz
3.low products cost, high quality level
4.100% aging test
5.AC input Voltage range: 110/220VAC±20%, Selected by switch
6. Short circuit / Overload Protection
7. Soft-start current , reduce the AC input Inrush
8. Installed with EMI filter, minimun wave
9. Small size, light weight, long life , high efficiency

Model

CP-400-12

Output

DC output voltage

12V

Output voltage tolerance

±1%

Rated output current

33A

Output current

0~33A

Output power

400W

Ripple and noise

80mVp-p

DC adjustable range

±10%

Setup rise hold up time

50ms

Input

Input voltage range

85~132VAC 170~264VAC 47~63Hz, 240~370VDC

AC input current

6.5A/115V 4A/230V

Efficiency

82%

AC inrush current

Cold start current 25A/115V 50A/230V

Leakage current

<3.5mA/240VAC

Protection characteristic

Over load protection

105%~135%rated output power start the over load protection

Protection mode : cut off the output,auto-recovery

Over-voltage protection

115%-135% cut off the output,auto-recovery

Over-temp protection

Rectifier≥80°Ccut off the output ,auto-recovery

Fan ON/OFF control

≥55°C Fan start ,≤45°CFan off

Environment

Working temperature

-10°C~+60°C;20%~90%RH(please refer to the Load deduction curve)

Security

Withstand voltage

Between input and output:1.5KVACThe input and ground : 1.5KVACThe output and ground :0.5KVAC

Insulation resistance

Between input and output:The input and ground, the output and ground: 100M 0hms /500VDC
