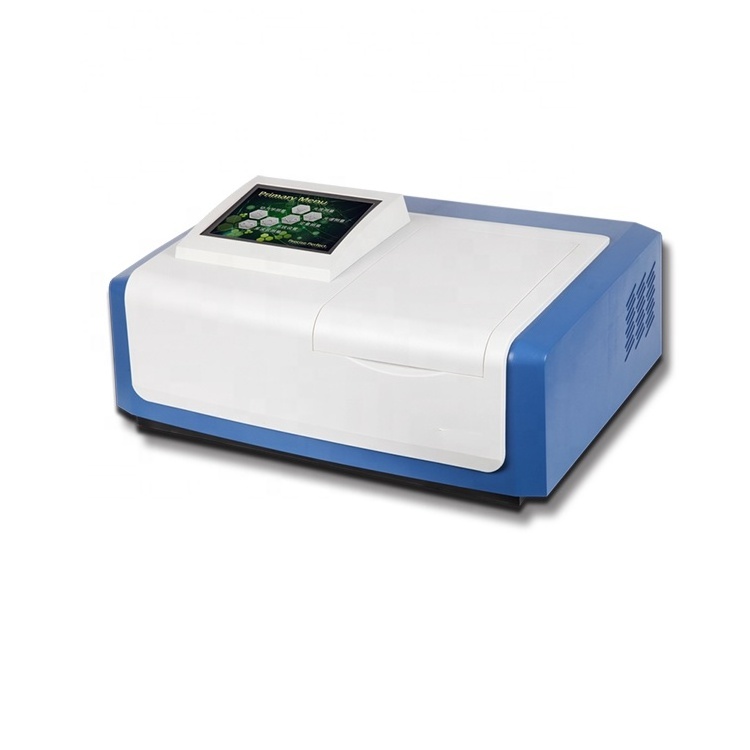

L6S scanning split beam double beam UV VIS Spectrophotometer

L6S scanning split beam double beam UV VIS Spectrophotometer

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1699

≥5 Pieces

US $1649

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shanghai, China

Brand Name:: Measuretech

Model Number:: L6S

Focal Length:: 160mm, 160mm

Wavelength Range:: 190-1100nm, 190-1100nm

Product name:: UV-VIS Spectrophotometer

Monochromator type:: Czerny-Turner

Spectrum Bandwidth:: 2nm

Grating:: 1200 lines/mm

Detector:: Silicon Photocell

Wavelength accuracy:: ±0.5nm

Wavelength Repeatability:: ≤0.2nm

Certification:: CE

Quick Details

Warranty:: 1 YEAR

Size:: 710X590X510mm

Weight:: 40Kg

Place of Origin:: Shanghai, China

Brand Name:: Measuretech

Model Number:: L6S

Focal Length:: 160mm, 160mm

Wavelength Range:: 190-1100nm, 190-1100nm

Product name:: UV-VIS Spectrophotometer

Monochromator type:: Czerny-Turner

Spectrum Bandwidth:: 2nm

Grating:: 1200 lines/mm

Detector:: Silicon Photocell

Wavelength accuracy:: ±0.5nm

Wavelength Repeatability:: ≤0.2nm

Certification:: CE

Product Description

Feature

8-inch color touch LCD display, flexible and convenient operation.
High-performance monochromator with low-stray light and high-performance "shiny holographic grating" with high-performance, high accuracy and reliability.
With a unique automatic adjustment "0" adjustment "100", automatic 8-hole sample rack.
With full-band scanning (limited to S), sub-band scanning (limited to S models), dynamic time scanning, and GOTOλ, linear regression, concentration direct reading, peak and valley detection and other advanced features.
Optional thermal plotter, can be data printing, spectral scanning (limited to S) fixed wavelength scanning, linear regression curve drawing.
With USB interface, combined with UVwin8 UV spectrum software, can directly interact with the PC, to strengthen the instrument detection data, scanning maps and other processing functions, to achieve the test file mass storage, but also for the user to provide a second development.
Advanced power protection measures, can remember the measured data, scan patterns, regression equations and instrument correction values, and to achieve a quick start to enter the test state.
The instrument uses high-energy imported long life flange positioning deuterium lamp. When the instrument deuterium lamp must be replaced, just unload the two flange positioning screws, you can ensure that the light source in the best position, without cumbersome optical path adjustment.

Model No	L6S
Photometry	Split Beam
Monochromator Type	Czerny-Turner
Focal Length	160mm
Grating	1200 lines/mm
Detector	Silicon Photocell
Spectrum Bandwidth	2nm
Wavelength Setting	8 inch color touch screen
Wavelength Range	190-1100nm
Wavelength Accuracy	±0.5nm
Wavelength Repeatability	≤0.2nm
Stray Light	≤0.03%T (at 220nm NaI, 360nm NaNO₂)
Photometric Range	0.0-200.0%T -0.301-4.000A 0.000-9999C


Photometric Accuracy	±0.3%T ±0.002Abs(0-0.5A) ±0.004Abs(0.5-1A)


Photometric Repeatability	≤0.15%T 0.001Abs(0-0.5A) 0.002Abs(0.5-1A)


Scanning Speed	Fast-Medium-Slow
Baseline	≤±0.002A(200-1090nm)
Noise	100%(T) noise≤0.15%(T), 0%(T) noise ≤0.1%(T)
Drift	≤0.0009Abs/30 min. (250nm and 500nm after 2 hrs warm up
Interface	USB
Power Supply	AC 110-240V,50/60Hz,200W
Package Size/Weight	740x630x450mm,35Kg

Details Images

Related Products

Company Introduction

Shanghai Measuretech Instrument Co.,Ltd. is a professional manufacturer and supplier of laboratory instruments.With years of continuous innovation and investment in technical research and production accumulation, we have achieved expertise in supplying the most reliable instruments to our customers worldwide.

Our main products are
Weighing Instruments including analytical balances,precision balances, moisture analyzers.
Electrochemical Instruments including pH Meters, ISE Meters, EC Meters, DO Meters, Turbidity meters,Multi-parameter Analyzers, CODAnalyzers,Titration systems and other environmental instruments.
Analytical Instruments including Spectrophotometers, Fluorescence Spectrophotometer, Flame Photometers, Atomic Absorption Spectrophotometers, Melting Point Apparatus.

Optical instruments including Polarimeters, Refractometers,Colorimeters, Particle size analyzers, Hazemeters etc. instruments.

We also supply general laboratory instruments, electrodes and laboratory consumables.
Our success comes from the pursuit of high quality products, continuous innovation and considerate service. Our RD force
andmanufacturing facilities enable us to customize products base on special requirements.
We continuously invest in new technology and advanced production services to support our global customers.
