Quick Details
-
Application:
-
Outdoor
-
Design Style:
-
Industrial
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
jinruixiang
-
Model Number:
-
GCL
-
Type:
-
Geosynthetics
-
Product name:
-
Geosynthetic Clay Liner
-
Length:
-
30m~50m/roll
-
Width:
-
2m-7m
-
Gram Weight:
-
4000g~6500g/m2
-
Material:
-
Natural sodium, geotextile, HDPE geomembrane
-
Advantage:
-
Small size, light weight good flexibility good sealing
-
Fluid Loss(m/L):
-
≤18
-
Feature:
-
Waterproof, high tensile strength, high quality, etc
-
Certificate:
-
ISO9001/ISO14001
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Outdoor
-
Design Style:
-
Industrial
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
jinruixiang
-
Model Number:
-
GCL
-
Type:
-
Geosynthetics
-
Product name:
-
Geosynthetic Clay Liner
-
Length:
-
30m~50m/roll
-
Width:
-
2m-7m
-
Gram Weight:
-
4000g~6500g/m2
-
Material:
-
Natural sodium, geotextile, HDPE geomembrane
-
Advantage:
-
Small size, light weight good flexibility good sealing
-
Fluid Loss(m/L):
-
≤18
-
Feature:
-
Waterproof, high tensile strength, high quality, etc
-
Certificate:
-
ISO9001/ISO14001
Factory geosynthetic clay liners price 4000g bentonite bentomat gcl for underlayment
Click
"Chat now"
/
"Send inquiry"
to contact supplier

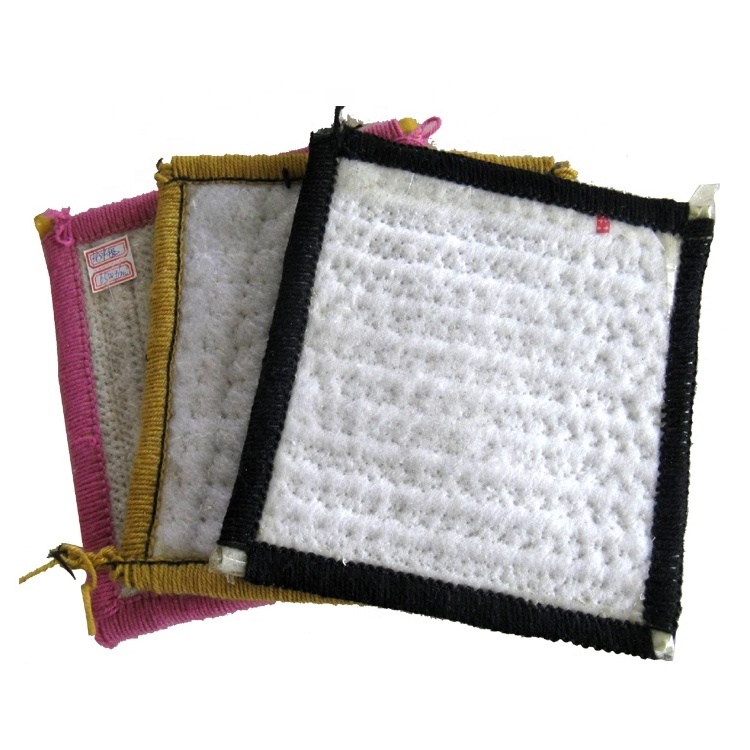

Geosynthetic Clay Liner(GCL) is also named sodium bentonite composite waterproof pad. This is to make high swelling sodium bentonite filling into the inside between special composite geotextile and non-woven fabric. The bentonite impermeable cushion that made of acupuncture method can form a lot of small fiber spaces. This is to make the bentonite particles cannot flow in one direction. When encountering water, it can form uniformly high density colloidal waterproof layer in the pad, and effectively prevent water leakage. Geosynthetic clay liner is suitable for artificial lake water, landfill, underground garage, roof garden, pool, oil depot and chemicals yard.
| Projects/ Technical data | Specifications | ||
| GCL-NP | GCL-OF | GCL-AH | |
| Weight per unit area(g/m2) | ≥ 4000g/m2 | ||
| Bentonie swell index(ml/2g) | ≥24 | ≥24 | ≥24 |
| Ethylene blue absorption(g/100g) | ≥30 | ≥30 | ≥30 |
| Tensile strength (N/100mm) | ≥600 | ≥700 | ≥600 |
|
Racking strength(N/100mm)
(for nonwovwn and woven fabric) |
≥40 | ≥40 | - |
|
Racking strength(N/100mm)
(for HDPE films and nonwoven fabric) |
≥30 | - | |
| Permeability(m/s) | ≤ 5.0x110^(-11) | ≤ 5.0x110^(-11) | |
| Anti-static water pressure |
0.4Mpa,1h, not seepage |
0.6Mpa,1h,not seepage | |
| Filtration loss (ml) | ≤18 | ≤18 | ≤18 |
| Bentonite durability (ml/2g) | ≥20 | ≥20 | |
1. Compactness: The sodium bentonite forms a high-density diaphragm under water pressure. When the thickness is about 3mm, its water permeability is below a×10-11m/sec, which is equivalent to 100 times the compactness of 30cm thick clay. Strong self-holding water performance.
2 Has permanent waterproof performance: Because sodium bentonite is a natural inorganic material, even after a long time or the surrounding environment changes, it will not be aging or corroded, so the waterproof performance is long-lasting.
3. Simple construction and short construction period: Compared with other waterproof materials, the construction is relatively simple and does not require heating and pasting. Just use bentonite powder, nails, washers, etc. to connect and fix. No special inspection is required after construction, and it is easy to repair if waterproof defects are found. GCL is the shortest construction period among the existing waterproof materials.
4. Not affected by temperature: it won't be brittle under cold weather conditions.
5. Integration of waterproof materials and objects: When sodium-based bentonite reacts with water, it has 13-16 times the expansion capacity. Even if the concrete structure vibrates and settles, the bentonite in the GCL can repair the cracks on the concrete surface within 2mm.
6 Green and environmental protection: Bentonite is a natural inorganic material, which is harmless and non-toxic to the human body, has no special impact on the environment, and has good environmental performance.
Geosynthetic clay liner is a kind of anti-leakage earthwork synthetic material that applicable for artificial lake water, garbage landfill, underground garage, roof garden, pool, oil depot and chemicals yard and other places.
