Quick Details
-
Voltage:
-
220V/50Hz, 110V/60Hz, 220V/50Hz
-
Weight:
-
20 KG, 16.5~30 kg
-
Dimension(L*W*H):
-
38*29*42.5mm
-
Marketing Type:
-
New product
-
Warranty of core components:
-
Other
-
Core Components:
-
oxygen cylinder
-
Product name:
-
Integrated Two tower oxygen molecular sieve concentrator
-
Item No.:
-
HY-GOX
-
Oxygen flow rate:
-
3LPM,5LPM, 8LPM, 10LPM
-
Power:
-
380~820w
-
Application:
-
Oxygen generator, Ozone Generator, Laboratory, etc.
-
Oxygen concentration:
-
90%±3%
-
Oxygen discharge pressure:
-
≥40KPa
-
Working noise:
-
≤48dB(A)
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHUANG
-
Production Rate:
-
3-10LPM
-
Voltage:
-
220V/50Hz, 110V/60Hz, 220V/50Hz
-
Weight:
-
20 KG, 16.5~30 kg
-
Dimension(L*W*H):
-
38*29*42.5mm
-
Marketing Type:
-
New product
-
Warranty of core components:
-
Other
-
Core Components:
-
oxygen cylinder
-
Product name:
-
Integrated Two tower oxygen molecular sieve concentrator
-
Item No.:
-
HY-GOX
-
Oxygen flow rate:
-
3LPM,5LPM, 8LPM, 10LPM
-
Power:
-
380~820w
-
Application:
-
Oxygen generator, Ozone Generator, Laboratory, etc.
-
Oxygen concentration:
-
90%±3%
-
Oxygen discharge pressure:
-
≥40KPa
-
Working noise:
-
≤48dB(A)
Chuanghuan oxygen concentrator 3Liters,10lpm oxigen generator,10l fish farming oxygenator
Introduction:
* It is specially used for equipment to supply oxygen source.
* It is prepared by the principle of high-efficiency molecular sieve PSA.
* It uses air as raw material, molecular sieve as adsorbent, and uses the principle of pressure swing adsorption to separate
oxygen and nitrogen in the air. .
* Stable and reliable work, low working noise,
* It can be used independently or built into the ozone equipment system.
Features:
* Gas intake filter,greatly extend the service life of the molecular sieve.
* Adopting Chiller, so that the high-temperature gas from the compressor can quickly form condensate droplets and be discharged.
* Adopt high-efficiency molecular sieve material, which is stable and durable in operation.
* High oxygen concentration, low machine vibration and low noise.
Components :

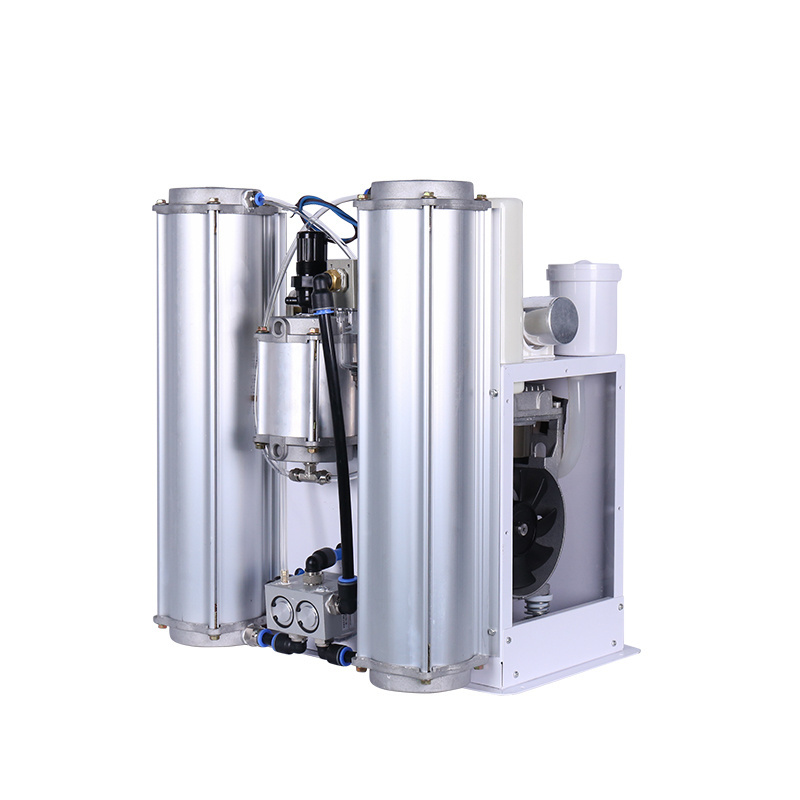

The oxygen molecular sieve concentrator is composed of an air compressor, intake filter, drain valve (10L), oxygen adsorption tower, gas collecting tank, solenoid valve, electric control board, oxygen outlet pressure regulating valve, and oxygen flow meteretc.
* It is specially used for equipment to supply oxygen source.
* It is prepared by the principle of high-efficiency molecular sieve PSA.
* It uses air as raw material, molecular sieve as adsorbent, and uses the principle of pressure swing adsorption to separate
oxygen and nitrogen in the air. .
* Stable and reliable work, low working noise,
* It can be used independently or built into the ozone equipment system.
Features:
* Gas intake filter,greatly extend the service life of the molecular sieve.
* Adopting Chiller, so that the high-temperature gas from the compressor can quickly form condensate droplets and be discharged.
* Adopt high-efficiency molecular sieve material, which is stable and durable in operation.
* High oxygen concentration, low machine vibration and low noise.
Components :
The oxygen molecular sieve concentrator is composed of an air compressor, intake filter, drain valve (10L), oxygen adsorption tower, gas collecting tank, solenoid valve, electric control board, oxygen outlet pressure regulating valve, and oxygen flow meteretc.
Guangzhou Chuanghuan Ozone Electric Appliance Co., Ltd.
which was established in 2006, It focuses on Ozone generator, Oxygen machine , Ozone tube, accessories production, development and application of products.
With the development for several years, the company has been in 16 aspects of
the ozone generator. Most products have had CE certification. We are the key suppliers for components of ozone generators in domestic and foreign manufacturers. Our products include the 100mg-10kg / h of ozone and ozone accessories. The core types of ozone generators are quartz tube, ceramic and enamel, widely used in water and air treatment. Products are exported to Europe,North and South America, Southeast Asia, Middle East, Africa and dozens of countries.
the ozone generator. Most products have had CE certification. We are the key suppliers for components of ozone generators in domestic and foreign manufacturers. Our products include the 100mg-10kg / h of ozone and ozone accessories. The core types of ozone generators are quartz tube, ceramic and enamel, widely used in water and air treatment. Products are exported to Europe,North and South America, Southeast Asia, Middle East, Africa and dozens of countries.
Our Services & Strength
1,We are a company integrating industry and trade. If you want to visit the factory, we can arrange it at any time.
1,We are a company integrating industry and trade. If you want to visit the factory, we can arrange it at any time.
2,Our company with rich experience about ozone generator and oxygen machine use for air purification and water treatment, gets ISO certification every year.
3,We have our own R & D team and technical team.
4,From material ,such as ceramic tube: ozone tube is imported material of high pure ceramic, SS 316L of internal electrode, which are best anti-oxidation material，the ozone machine life reach 20,000 hours,ect.
5,The quality of our products is guaranteed, the one-year warranty ect.
3,We have our own R & D team and technical team.
4,From material ,such as ceramic tube: ozone tube is imported material of high pure ceramic, SS 316L of internal electrode, which are best anti-oxidation material，the ozone machine life reach 20,000 hours,ect.
5,The quality of our products is guaranteed, the one-year warranty ect.
P
ackaging:
We insist on making the best package. This package is solid which contacts foam inside. We have professional in packing and avoid any troubles during shipping.
We insist on making the best package. This package is solid which contacts foam inside. We have professional in packing and avoid any troubles during shipping.
Delivery:
1) 3~7 days for portable ozone generator order.
2) 10~30 days for industrial/middle size ozone generator order.
3) Shipping could be courier, airline or sea.
1) 3~7 days for portable ozone generator order.
2) 10~30 days for industrial/middle size ozone generator order.
3) Shipping could be courier, airline or sea.
