Quick Details
-
Application:
-
construction
-
Design Style:
-
Modern
-
Type:
-
new
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
zhongcan
-
Material:
-
National standard square tube steel
-
Load Capacity:
-
300kg,500kg
-
Lifting Height:
-
2-8m
-
Motor Power:
-
0.8/1/1.5kw
-
Lifting system:
-
Electric Contral
-
Table Size:
-
1.3*0.68 m~1.6*0.98 m(Customized)
-
Overall Dimensions:
-
1.5*0.7 m~1.8*1 m(Customized)
-
Product name:
-
Electric lifting scaffold
-
Voltage:
-
220v
-
Lift Mechanism:
-
Steel wire rope
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Free spare parts, Other
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
construction
-
Design Style:
-
Modern
-
Type:
-
new
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
zhongcan
-
Material:
-
National standard square tube steel
-
Load Capacity:
-
300kg,500kg
-
Lifting Height:
-
2-8m
-
Motor Power:
-
0.8/1/1.5kw
-
Lifting system:
-
Electric Contral
-
Table Size:
-
1.3*0.68 m~1.6*0.98 m(Customized)
-
Overall Dimensions:
-
1.5*0.7 m~1.8*1 m(Customized)
-
Product name:
-
Electric lifting scaffold
-
Voltage:
-
220v
-
Lift Mechanism:
-
Steel wire rope
Product Description

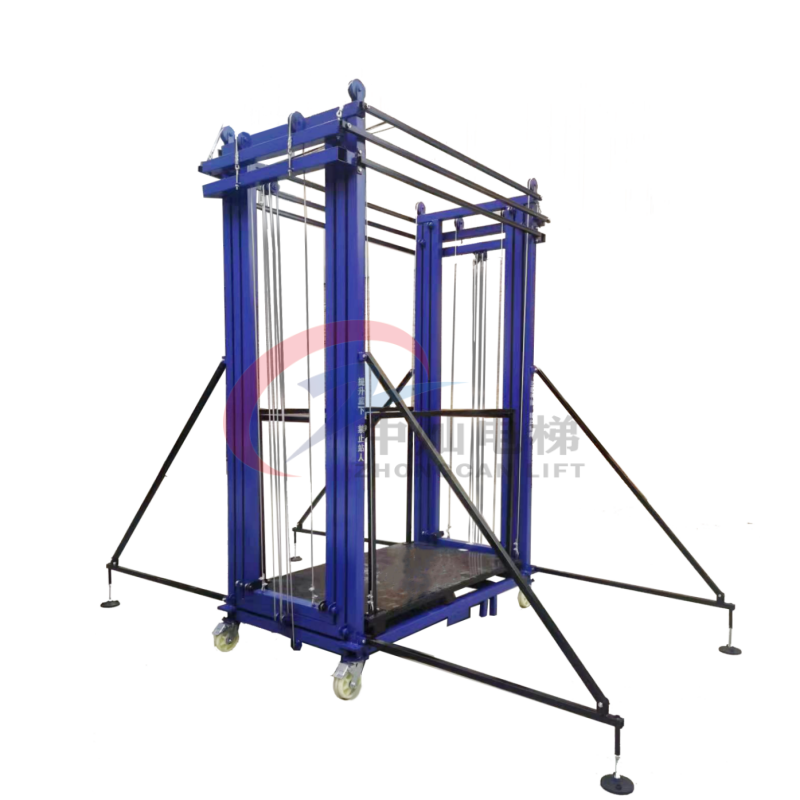

Zhongcan electric lifting scaffold platform is widely used in interior decoration,wall construction,lighting installation,
construction
site, warehouse workshop, outdoor aerial work,etc.
Red Style
Blue Style
Iron Mesh Platform
Iron Plate Platform
Product Paramenters
|
Lifting Height
|
Load Capacity
|
Platform Size(m)
|
Overall Size(m)
|
Weight
|
|
2m
|
300kg/500kg
|
1.3*0.68
|
1.5*0.7
|
140kg/180kg
|
|
2.5m
|
300kg/500kg
|
1.3*0.68
|
1.5*0.7
|
150kg/190kg
|
|
3m
|
300kg/500kg
|
1.3*0.68
|
1.5*0.7
|
170kg/1200kg
|
|
3.5m
|
300kg/500kg
|
1.3*0.68
|
1.5*0.7
|
180kg/210kg
|
|
4m
|
300kg/500kg
|
1.4*0.78
|
1.6*0.8
|
190kg/220kg
|
|
4.5m
|
300kg/500kg
|
1.4*0.78
|
1.6*0.8
|
200kg/230kg
|
|
5m
|
300kg/500kg
|
1.4*0.78
|
1.6*0.8
|
210kg/240kg
|
|
5.5m
|
300kg/500kg
|
1.4*0.78
|
1.6*0.8
|
220kg/250kg
|
|
6m
|
500kg
|
1.6*0.98
|
1.8*1
|
250kg/300kg
|
|
7m
|
500kg
|
1.6*0.98
|
1.8*1
|
330kg
|
|
8m
|
500kg
|
1.6*0.98
|
1.8*1
|
360kg
|
Product Structure
Product Details
1. (Limiter) Travel Switch
Control the travel of mechanical equipment, limit protection, ensure the construction safety
2. Crane Pulley
Wear-resistant, no noise, no damage to the wire rope
3. Pure Copper Motor
Stable performance, strong power, and fast improvement speed
4. Load-bearing Steel Wire
Professional load-bearing thick galvanized steel wire rope, good toughness, not easy to break, long life
5. National Standard Square Pipe
Solid and durable,high quality and low price
6. Bottom Pulley
360-degree rotating universal wheels with
brake, worry-free operation
Application
