Quick Details
-
Air Consumption:
-
8-10m3/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TXSL
-
Voltage:
-
380V
-
Power:
-
5.5 KW
-
Dimension(L*W*H):
-
1500mm*800mm*1300mm
-
Weight:
-
850 kg, 900 kgs
-
Model:
-
Factory price shotcrete machine for sale
-
Application:
-
culverts, underground engineering, coal mine construction
-
Capacity:
-
9 M3/H
-
Particle size:
-
≤20mm
-
Drive mode:
-
Electric Motor
-
Motor power:
-
380V
-
air pressure:
-
0.4-0.6 MPa
-
Transmission Distance:
-
200 horizontal /100 Vertical
-
Feeding Height (mm):
-
1300
Quick Details
-
Max. Conveying Distance:
-
30 mvertical, 100m horizontal
-
Max Aggregate Size:
-
20mm
-
Hose Inner Diameter:
-
51 mm
-
Air Consumption:
-
8-10m3/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TXSL
-
Voltage:
-
380V
-
Power:
-
5.5 KW
-
Dimension(L*W*H):
-
1500mm*800mm*1300mm
-
Weight:
-
850 kg, 900 kgs
-
Model:
-
Factory price shotcrete machine for sale
-
Application:
-
culverts, underground engineering, coal mine construction
-
Capacity:
-
9 M3/H
-
Particle size:
-
≤20mm
-
Drive mode:
-
Electric Motor
-
Motor power:
-
380V
-
air pressure:
-
0.4-0.6 MPa
-
Transmission Distance:
-
200 horizontal /100 Vertical
-
Feeding Height (mm):
-
1300
Product Description

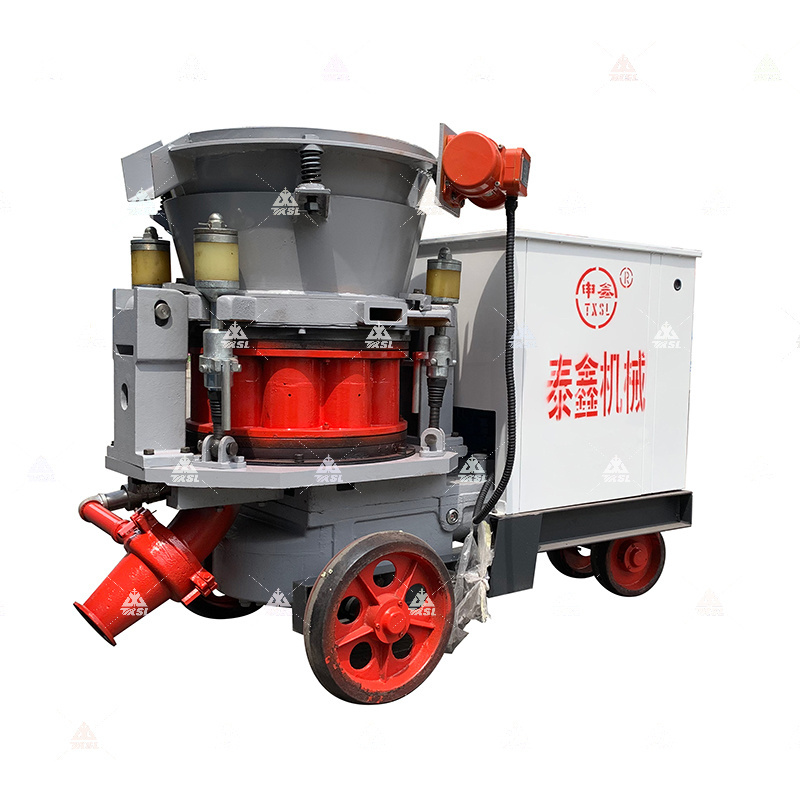

Introduction Of Dry Shotcrete Machine
This machine is mainly used for dry-mix concrete spraying in tunnelling, culvert, subway, slope stabilization, swimming pools, mining and underground engineering; The explosion-proof type is suitable for coal mining, chemical mine and other places with high combustible gas.
Can be equipped with electric, pneumatic or diesel engine drive.
Product Paramenters
|
Model
|
SGP-6
|
PZ-7
|
|
Working Capacity (m³ / h)
|
6
|
7
|
|
Max. Convey Distance (m)
|
35 vertical, 100 horizontal
|
35 vertical, 100 horizontal
|
|
Recommended Water-cement Ratio
|
≤0.4
|
≤0.4
|
|
Accelerator Dosage (%)
|
2-10
|
2-10
|
|
Max. Grain Size (mm)
|
20
|
20
|
|
Spraying Hose Diameter (mm)
|
Φ51
|
Φ57/Φ64
|
|
Working Air Pressure (MPa)
|
0.4-0.6
|
0.4-0.6
|
|
Air Consumption (m³ /min)
|
8-10
|
10-12
|
|
Feeding Height (mm)
|
1100
|
1300
|
|
Main Motor + Vibration Motor (kw)
|
5.5+0.15
|
7.5+0.25
|
|
Weight (kg)
|
750
|
850
|
|
Dimensions (mm)
|
1400×800×1100
|
1500×800×1300
|
Product Show
