Quick Details
-
Applicable Industries:
-
Food
-
Product name:
-

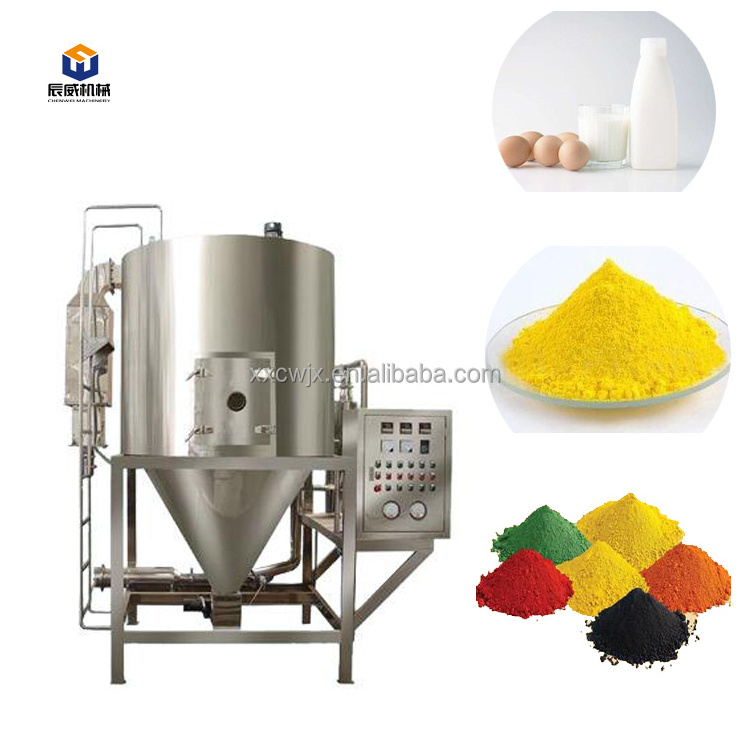

Centrifugal Spray Dryer
-
Name:
-
Industrial Spray Drying Machine
-
Keywords:
-
Centrifugal Atomizer Spray Dryer
Quick Details
-
Type:
-
Spray Drying Equipment
-
Place of Origin:
-
China
-
Weight (KG):
-
500
-
Applicable Industries:
-
Food
-
Product name:
-
Centrifugal Spray Dryer
-
Name:
-
Industrial Spray Drying Machine
-
Keywords:
-
Centrifugal Atomizer Spray Dryer
Product Description
After the air been filtered and heated the air enters into the air distributor on the top of the dryer. The hot air enters into the drying room in the spiral form and uniformly. Passing through the high-speed centrifugal sprayer on the top of the tower,the material liquid will rotate and be sprayed into the extremely fine mist liquid beads. Throug the very short time of contacting the heat air,the materials can be dried into the final products. The final products will be discharged continuously from the bottom of the drying tower and from the cyclones. The waste gas will be discharged from blower.
Application & Features
Spray drying is a technology widely used in liquid technology molding and drying industry. Drying technology is most suitable for producing powder, particle or block solid products from the following substances, such as solution, lotion, loose substance and pumpable paste.
Size information
|
Model
|
CWLP-5
|
CWLP-25
|
CWLP-50
|
CWLP-100
|
CWLP-150
|
CWLP-200
|
|||||
|
Max.water evaporation capacity(kg/h)
|
5
|
25
|
50
|
100
|
150
|
200-2000
|
|||||
|
|
|
|
|
|
|
|
|||||
|
Way of atomizing
|
Compressed air transmission
|
Mechanical transmission
|
|
|
|
|
|||||
|
Rotation speed(rpm)
|
25000
|
18000
|
18000
|
18000
|
15000
|
8000-15000
|
|||||
|
Diameter of atomizing tray(mm)
|
50
|
100
|
120
|
140
|
150
|
180-340
|
|||||
|
|
|
|
|
|
|
|
|||||
|
Heat supply
|
Electricity
|
Electricity+steam
|
Electricity+steam, fuel oil and gas
|
|
|
Settled by users themselves
|
|||||
|
|
|
|
|
|
|
|
|||||
|
Max Electric heating power(kw)
|
9
|
36
|
63
|
81
|
99
|
|
|||||
|
|
|
|
|
|
|
|
|||||
|
L*W*H(m)
|
1.8*0.93*2.2
|
3*2.7*4.26
|
3.7*3.2*5.1
|
4.6*4.2*6
|
5.5*4.5*7
|
Decided according to be concrete conditions
|
|||||
|
Dried powder restoring rate(%)
|
≥95
|
|
|
|
|
|
|||||
Machine display and customer site
Fast drying speed,complete drying time only a few seconds, especially suitable for drying heat sensitive materials.
Production process is simplified, easy to operate and control, suitable for continuous production control.
Products with good uniformity, mobility and solubility, high purity,good quality.
The product particle diameters, looseness and water contents can be adjusted through changing the operation condition in a certain scope.
Our Service
Our Company
Xinxiang Chenwei Machinery Co., Ltd. is an innovative enterprise that integrating technology R&D, processing, manufacturing and trade services. Our company is mainly devoted ourselves to the design, fabrication and installation of screening, conveying, mixing, crushing and other related products.
FAQ
Q1. Are you trading company or manufacturer?
A: We're manufacturer. We have our own factory and experienced technicians
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery and delivery time?
A: EXW, FOB, CFR, CIF, DDU, etc.Generally, it will take 7 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
